| Theory: | Ultrasonic Sensor | Type: | Waterproof |
|---|---|---|---|
| Center Frequency: | 25khz +- 1khz | Sensitivity: | Adjustable |
| Package: | Anti-static Bag & Box,Carton | Model: | KUS630 Series |
| High Light: | IP68 Protection Transducer Sensor,Waterproof Ultrasonic Transducer Sensor,24VDC Ultrasonic Level Sensor |
||

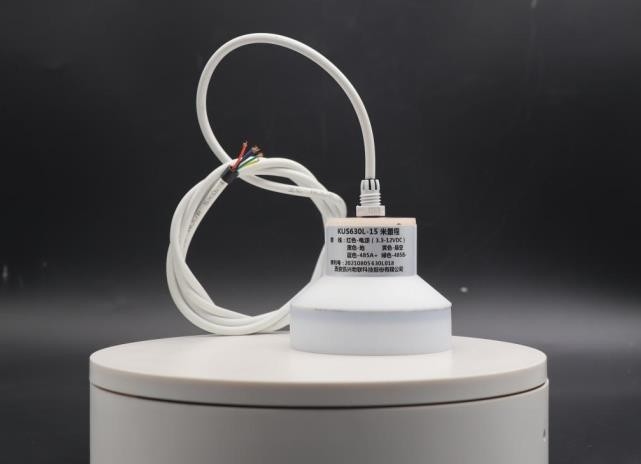

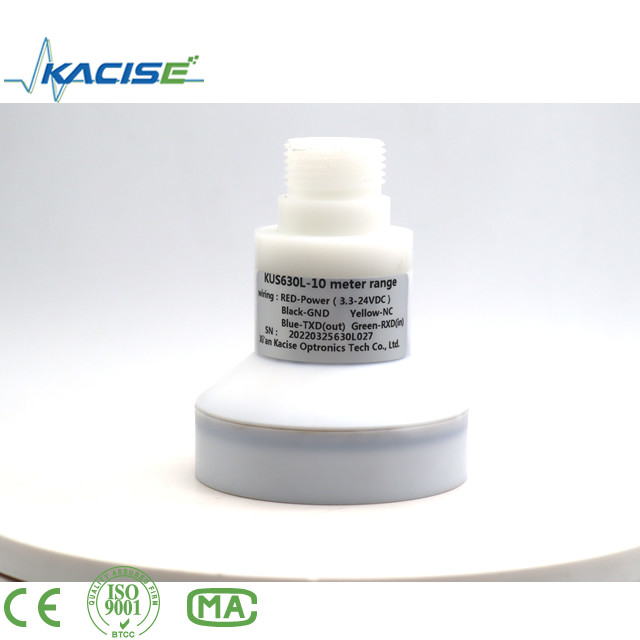

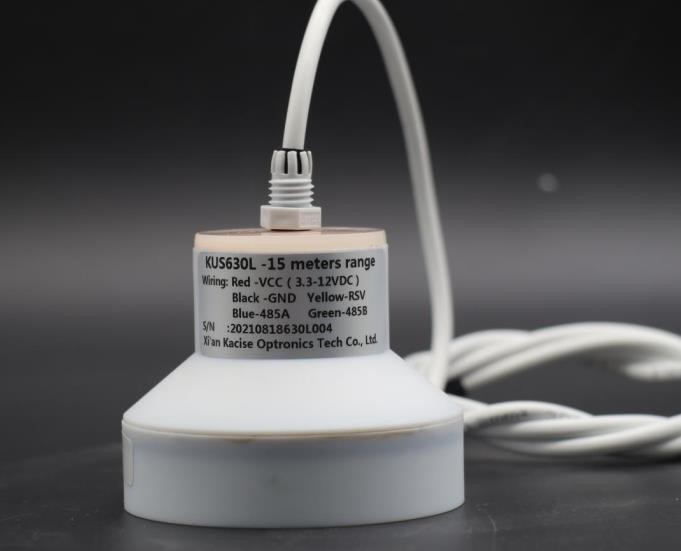

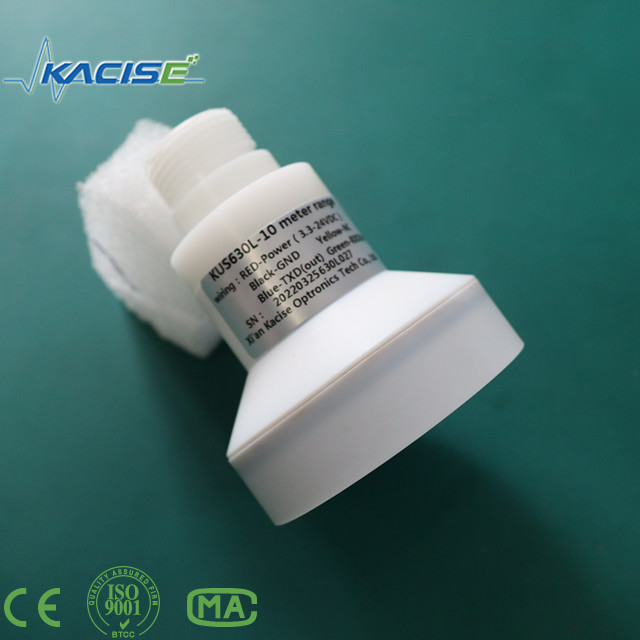

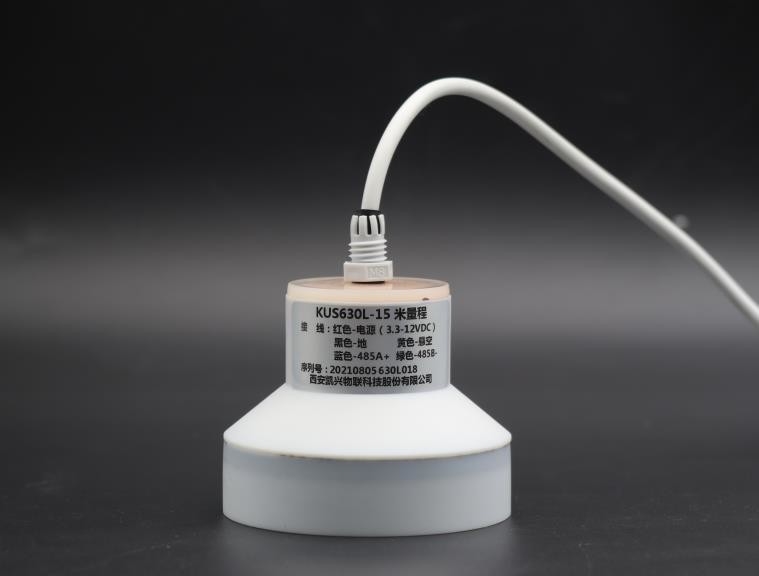

KUS630 Series Ultrasonic Transducer Sensor 24 VDC IP68 Protection
Product parameters
| 型号:KUS630 | |
| Measuring range | 0.6m... 10m |
|
Blind spot |
0 ... 0.6m(Unstable working area is within 0.6m, it is not recommended to work in this range); the minimum blind area version of 0.3m can be achieved, which needs to be customized. |
| Supply voltage | 3.3 ... 24 V DC , ripple 10 %SS |
|
Working current |
≤ 45 mA (fastest measurement speed) Low-power version, sleep power consumption is less than 0.3mA, sending power consumption is 20mA (less than 2ms), and receiving power consumption is not more than 8mA (less than 150ms) |
|
Output signal |
1:Programmable analog output 0-10V. 2:RS485 output. 3:Uart serial output 4:4-20mA output 5:Switch output |
| Measurement accuracy | ≤1 % |
| Temperature compensatin | yes |
working conditions
| Working temperature | -25…70℃(248...343K) |
| Storage temperature | -40…85℃(233...358K) |
Little knowledge of liquid level gauge
Ultrasonic level gauge is a digital level instrument. The distance between the sensor and the surface of the liquid being measured is calculated from the time between the emission and reception of the sound waves. Using non-contact measurement, it can be widely used to measure the height of liquid and solid materials.
Dimensions
Unit in the diagram is mm
Electrical connections and signal definitions
| Line order | Colour | Definition |
| 1 | Red | Power is positive |
| 2 | Black | power return ground |
| 3 | Yellow | Analog output, voltage output, current output switch output |
| 4 | Blue | RS485 A+ or uart TXD |
| 5 | Green |
RS485 B- or uart RXD |
Precautions:
1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.
2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
