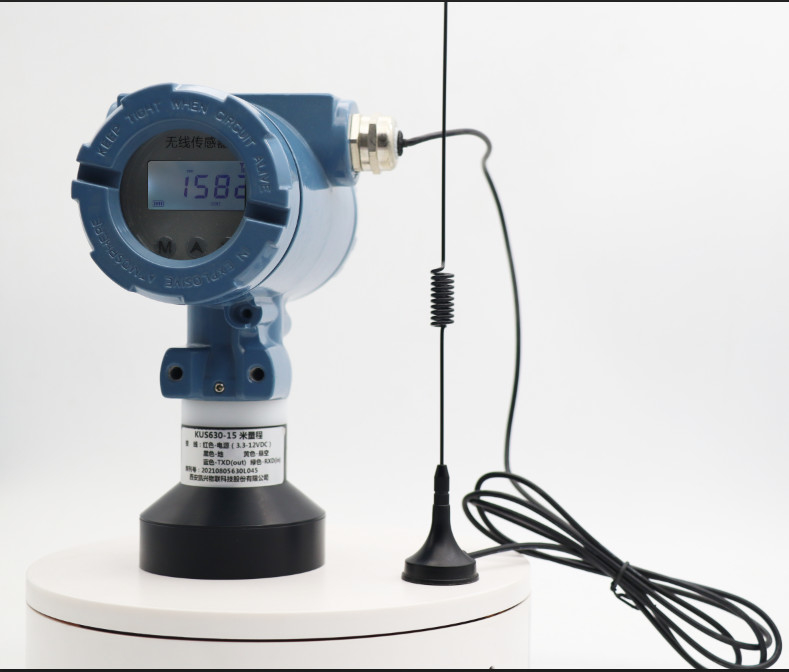

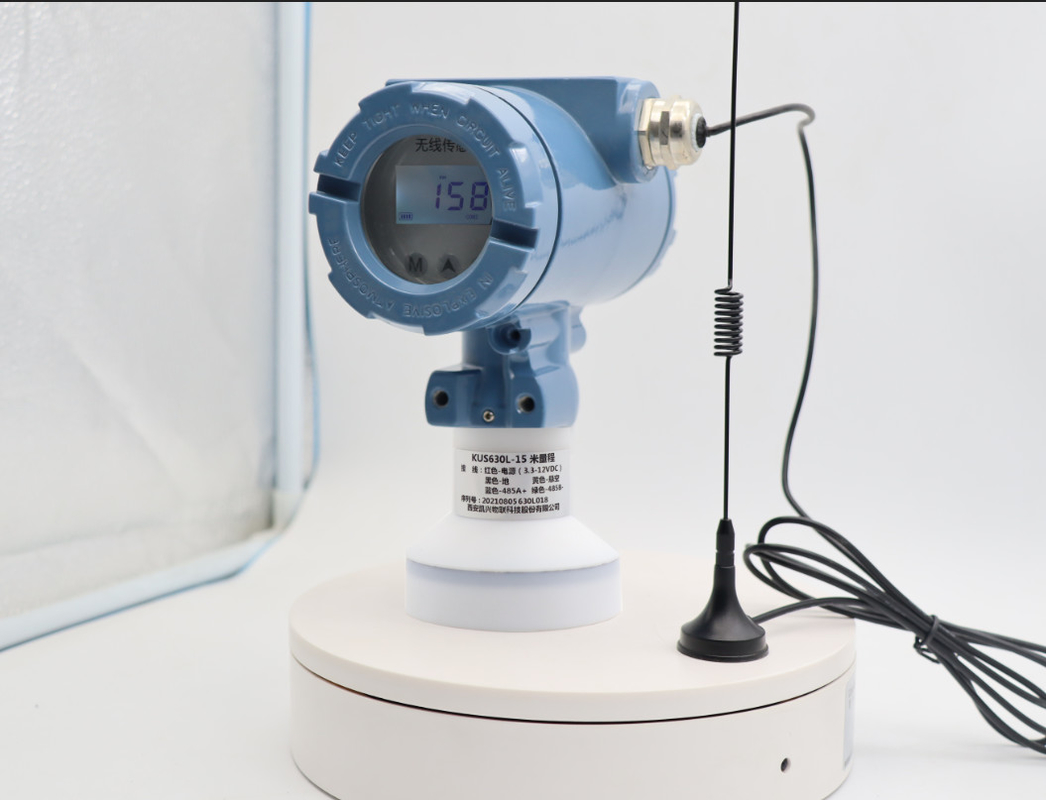

CE Automation LCD Display Ultrasonic Transducer Sensor For Distance Measuring

CE Automation LCD Display Ultrasonic Transducer Sensor For Distance Measuring

  • CE Automation LCD Display Ultrasonic Transducer Sensor For Distance Measuring
  • CE Automation LCD Display Ultrasonic Transducer Sensor For Distance Measuring
CE Automation LCD Display Ultrasonic Transducer Sensor For Distance Measuring
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KUS650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: carton/wooden case, or customers requests
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Connection: 5 Pin Cable Power Consumption: ≤30mA
Detection Range: 200mm~3000mm Transducer Frequency: 125KHZ
Beam Angle: 7°±2 IP Grade: IP65
Weight: 100g
High Light:

Automation Piezoelectric Ultrasonic Sensor

,

CE Distance Measurement Ultrasonic Sensor

,

LCD Display Industrial Ultrasonic Sensor



KUS650 Ultrasonic Level Sensor



1. Product overview

KUS650 series intelligent wireless digital wireless liquid level/level sensor is an intelligent digital display product with high precision and high stability introduced by our company. Suitable for real-time measurement and display of liquid level/material level. This product adopts special wide temperature liquid crystal display, high stability sensor, and is carefully manufactured through precise digital temperature compensation and nonlinear correction technology to ensure the high precision and high stability of liquid level/level measurement. The built-in wireless module uses the network to provide users with wireless long-distance and low-power data transmission, and sends all the status data of the sensor to the cloud background management server in real time to realize alarm linkage and data statistical analysis with the smart cloud platform.



2. Product Features

◆Power: Two DC3.6V primary lithium sub-battery

◆Wireless transmit power: <23 dBm

◆Receive sensitivity: <-135 dBm

◆Theoretical bandwidth: 200Kbs

◆Support wireless transmission of alarm status to server, configurable server address and port

◆Using precise digital temperature compensation and nonlinear correction technology, wide temperature range and full scale precision compensation;

◆Multiple data type indication (percentage, output current display);

◆Special wide temperature LCD display (-30℃~80℃);

◆Provide a variety of power supply methods at the same time;

◆Vertical installation or axial installation, providing a variety of liquid level/level interfaces and interface materials;

◆ LCD with parameterization and three setting buttons.

◆According to user needs and site conditions, the collection frequency and collection time interval can be set.

◆Battery power monitoring, when the power is insufficient, the meter screen will flash and report to the centralized management platform at the same time.

◆Water pressure/water level alarm threshold can be set and modified according to actual needs.

◆Water pressure/water level alarm threshold automatically alarms.



Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.



4. Technical parameters

Enter
Measured variable Liquid

level, material level



Maximum measuremen trange

1.2-30m (can be customized according to demand)



Output
Comprehensive accuracy ±0.15%FS/ 0.15℃
Temperature compensation -10℃~70℃
Vibration effects < ± 0.05%/g, 500Hz in all directions (according to IEC 68-2-64)

Rated conditions

environmental conditions

Ambient temperature -25~+85℃
Storage temperature -40~+85℃
Protection class IP68 , according to EN 60529
Electromagnetic Compatibility EN 61326/A2 Annex A (2001)
Display and control
Display SFTN liquid crystal, white backlight, 5-digit display.
Limit value Free setting
Parameter setting Use 3 buttons
Unit

The unit is mm, and the default unit is m.



Weight

about 1.35kg



Materials of non-wetted parts
Joint 1NPT, stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements).
Electrical connection

Make waterproof connector, air vent cable entry according to EN 175301-803A standard



Measurement period ≤ 100ms

Selection Tips: For special requirements, please contact our company and indicate it in the order.



Precautions:

1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.

2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
