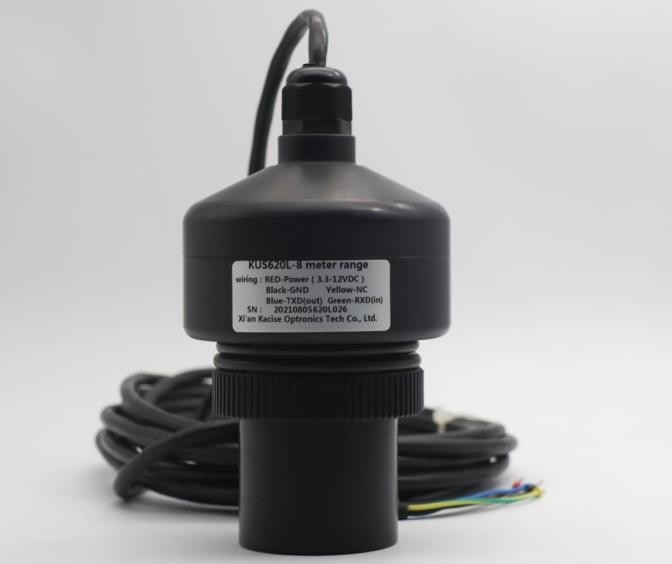

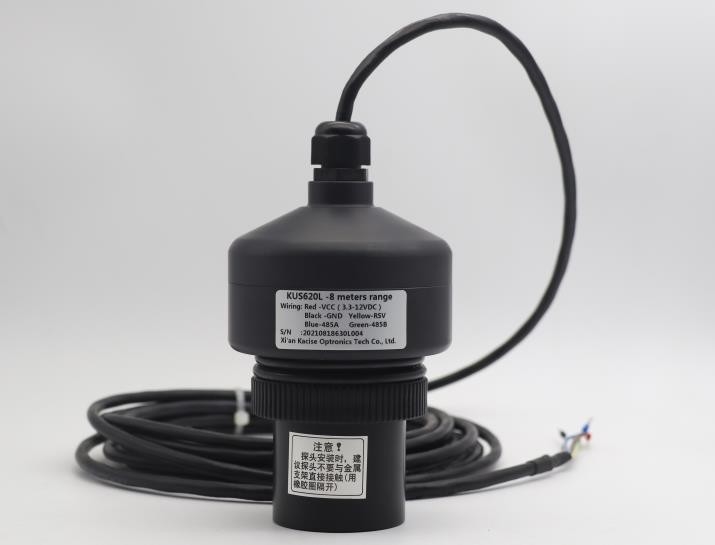

Digital Waterproof Piezo Ultrasonic Sensor IP68 Electrical Connection

Ultrasonic Transducer Sensor

Product parameters
1,Sensing range:0.6m-8m；

2,Unusable area:0- 0.6m；

3,Ranging accuracy:≤1 % F.S.；

4,Ranging resolution:0.1mm；

5,Working current: ≤ 45 mA (fastest measurement speed); low-power version, sleep power consumption is less than 0.3mA, sending power consumption is 20mA (less than 2ms), and receiving power consumption is not more than 5mA (less than 150ms)；

6,Output: programmable analog output 0-10V/RS485 output/Uart serial output/4-20mA output/switch output

7,Power supply:3.3 ... 12 VDC, ripple 10 %SS；

8,Ambient temperature:-40…85℃ (233...358K)；

9,Protection class:IP68；

10,Temperature Compensation: Yes；

11,Electrical connection: 5-core cable (analog output), 6-core cable (switch output)；

12,Shell material:PVC /PVDF/PTFE(Default PVC).

Parameters

Selection reminder: For special requirements, please contact our company and indicate in the order.

Precautions:

1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.

2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
