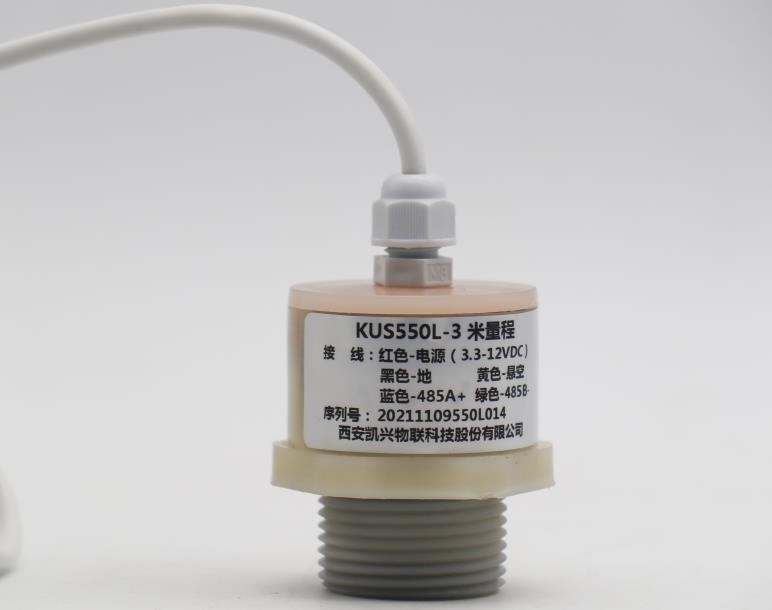

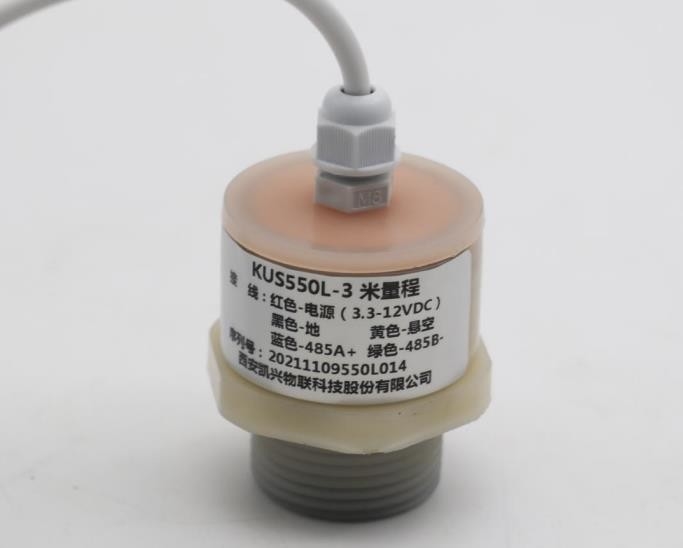

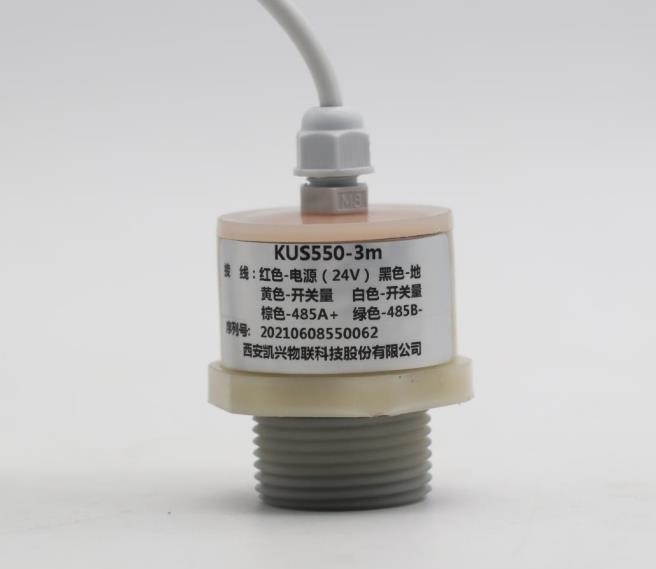

Name: 5 Digit Display Ultrasonic Level Sensor For Tank Level Measurement 200mm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550 Series
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

5 Digit Display Ultrasonic Level Sensor For Tank Level Measurement 200mm

5 Digit Display Ultrasonic Piezoelectric Sensor

Level Measurement Waterproof Ultrasonic Sensor

200mm Ultrasonic Tank Level Sensor

Place of Origin:

China

Brand Name:

Kacise

Certification:

Model Number:

KUS550 Series

Request A Quote

5 Digit Display Ultrasonic Level Sensor For Tank Level Measurement 200mm

Product Details

Connection:

5 Pin Cable

Power Consumption:

≤30mA

Detection Range:

200mm~3000mm

Transducer Frequency:

125KHZ

Beam Angle:

7°±2

Protection:

IP65

Highlight:

5 Digit Display Ultrasonic Piezoelectric Sensor

Level Measurement Waterproof Ultrasonic Sensor

200mm Ultrasonic Tank Level Sensor

Payment & Shipping Terms

Minimum Order Quantity

1 Piece

Price

Negotiable

Packaging Details

carton/wooden case, or customers requests

Delivery Time

5-8 working days

Supply Ability

10000pcs/month

10mW Resolution KWD300 Ultrasonic Noise Detection Sensor for Precise Detection

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

KWD510 M26 Hydrophone

Get Best Price

86--17719566736

Contact Now

Product Description

KUS550 Ultrasonic Level Sensor

Features

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.

Electronic interface and signals definition

Analogue output type wiring diagram

5 Digit Display Ultrasonic Level Sensor For Tank Level Measurement 200mm 0

Installation conditions
If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

Parameters

Enter
Measured variable	Liquid level, material level
Maximum measuring range	20-15000mm(Can be customized according to needs)
Output
Comprehensive accuracy	±1%FS/ 0.15℃
Temperature compensation	-10℃～70℃
Vibration influence	< ± 0.05％/g,All directions500Hz (conform to IEC 68 -2-64)
Rated conditions Environmental conditions
Ambient temperature	-25～+85℃
Storage temperature	-40～+85℃
Protection level	IP65 ,conform to EN 60529
Electromagnetic Compatibility	EN 61326/A2 appendix A (2001 )
Display and control
show	SFTN LCD, white backlight, 5-digit display.
Limit value	Free setting
parameter settings	Use 3 buttons
unit	mm, the default unit is m.
weight	About 1.35kg
Non-liquid parts material
Connector	1NPT, stainless steel, length 20mm (materials and joint specifications can be customized according to customer requirements).
Electrical connections	Make the waterproof connector and air hole cable entrance comply with EN 175301 -803A standard
Measurement period	≤ 100ms

Ordering information

KUS	Model	Output	Max range	Description
	550
	Customized
		SW	Switch Output
		mA	3 wire 4-20mA output
		10V	Output is Vout 0-10V
		5V	Output is Vout 0-5V
		3V	Output is Vout 0-3V
		RS485	Output is RS485
		TTL	UART TTL output
			XX m	XX m is the maxim range can be detected Default is 2.5m
KUS	550	RS485	2m

Selection reminder: For special requirements, please contact our company and indicate in the order.

Precautions:

1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.

2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
