| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | CE |
| Model Number: | KUS640 Series |
| Features: | High Sensitivity | VDC: | 30 VDC |
|---|---|---|---|
| Series: | KUS640 Series | Function: | Digital Output Temperature Compensation |
| Digital Output: | RS485 | Shell Material: | PVC /PVDF/PTFE |
| High Light: | Ultrasonic Level Sensor With Backlight,Digital Output Piezo Ultrasonic Sensor,30 VDC Ultrasonic Piezoelectric Transducer |
||
Product overview

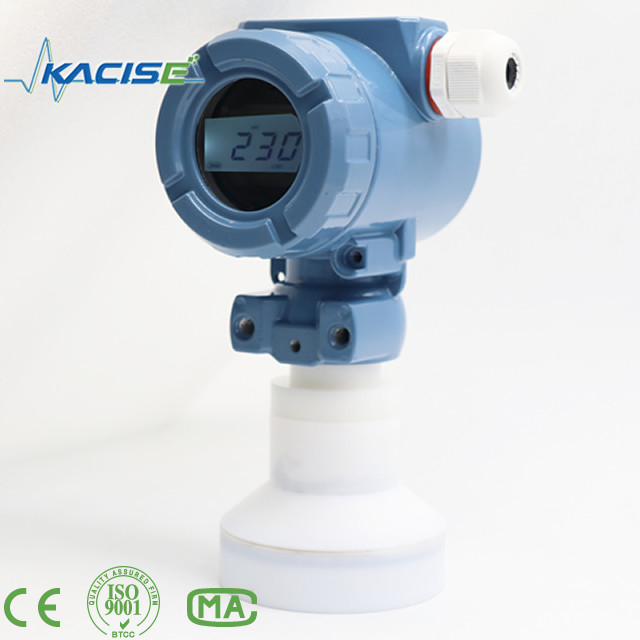

KUS640 series intelligent ultrasonic level gauge/level sensor is a level gauge product with on-site display and 4-20mA remote transmission 485 remote transmission launched by our company.
Product Features
◆Power supply: 24VDC, customized support 12-24VDC
◆Special wide temperature LCD display (-30℃～80℃);

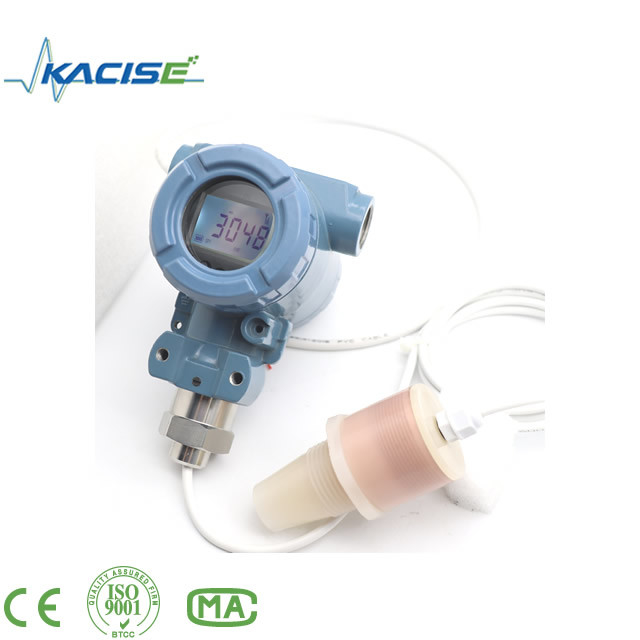

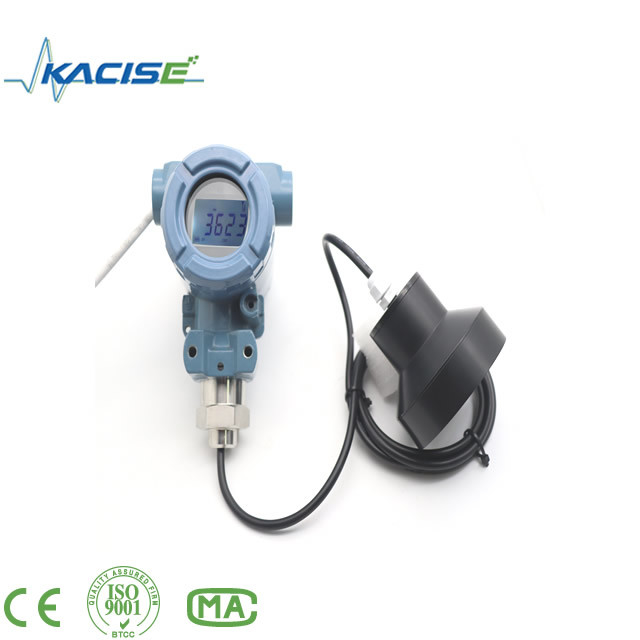

◆Vertical installation or axial installation, providing a variety of liquid level/level interfaces and interface materials;
◆ LCD with parameterization and three setting buttons.
Application
KUS640 series is used to indicate and monitor the changes of water pressure/water level value at the installation site, and upload the real-time data to the centralized management platform through the built-in wireless transmission module, which is convenient for users to manage intelligently and centralizedly. It is mainly used in the following industries:
Technical parameter
| Enter | |
| Measured variable | liquid level, material level |
| Measuring range |
150mm-1000mm(Can be customized according to demand) 200mm-3000mm/300mm-6000mm/300mm-12000/600mm-20000mm/1.2m-30m/1.8-50m |
| Output | |
| Comprehensive accuracy | RS485/4-20mA,±1%FS/ 0.15℃ |
| Temperature compensation | -10℃～70℃ |
| Vibration effects | < ± 0.05％/g,500Hz in all directions (according to IEC 68-2-64) |
| Rated conditions Environmental conditions | |
| ambient temperature | -25～+85℃ |
| Storage temperature | -40～+85℃ |
| Protection class | IP65 ,Complies with EN 60529 |
| Electromagnetic Compatibility | EN 61326/A2 Appendix A (2001 ) |
| Display and control | |
| show | SFTN liquid crystal, green backlight, 5-digit display. |
| limit value | Free settings |
| Parameter settings | Use 3 buttons |
| Unit | mm,The default unit is m. |
| Weight | About 1.35kg |
| Materials of non-wetted parts | |
| Joint | 1NPT,Stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements). |
| Electrical connections | Make waterproof connectors, air vent cable entries according to EN 175301-803A |
| Measurement period | ≤default 200ms, user set |
Selection Tips: For special requirements, please contact our company and indicate it in the order.
Precautions:
1. If you need to calibrate the instrument, please contact our company. Non-professionals are not allowed to calibrate the instrument.
2. When calibrating the watch, please turn on the watch first, and then calibrate after 1 hour of constant temperature.
