| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | CE |
| Model Number: | KUS550 Series |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton/wooden case, or customers requests |
| Delivery Time: | 5-8 working days |
| Supply Ability: | 10000pcs/month |
| Connection: | 5 Pin Cable | Power Consumption: | ≤30mA |
|---|---|---|---|
| Detection Range: | 200mm~3000mm | Transducer Frequency: | 125KHZ |
| Beam Angle: | 7°±2 | Protection: | IP65 |
| High Light: | 100ms Ultrasonic Level Sensor,IP65 Electrical Ultrasonic Level Sensor,Tank Level Transducer Sensor |
||

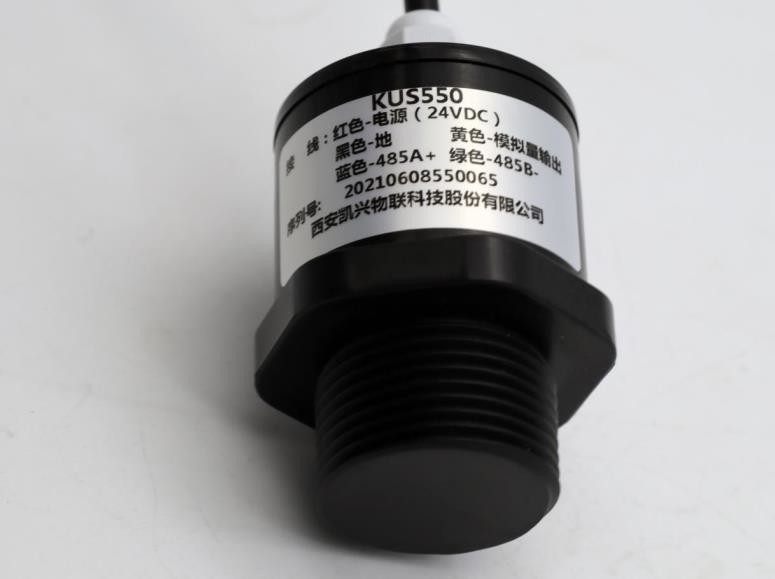

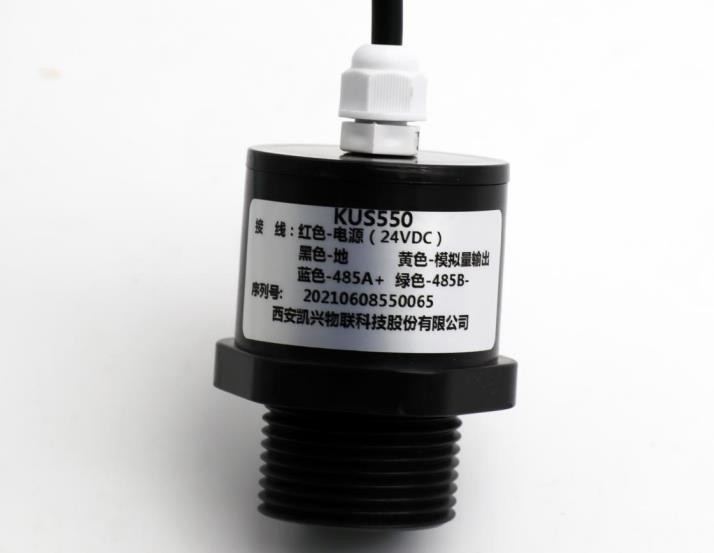

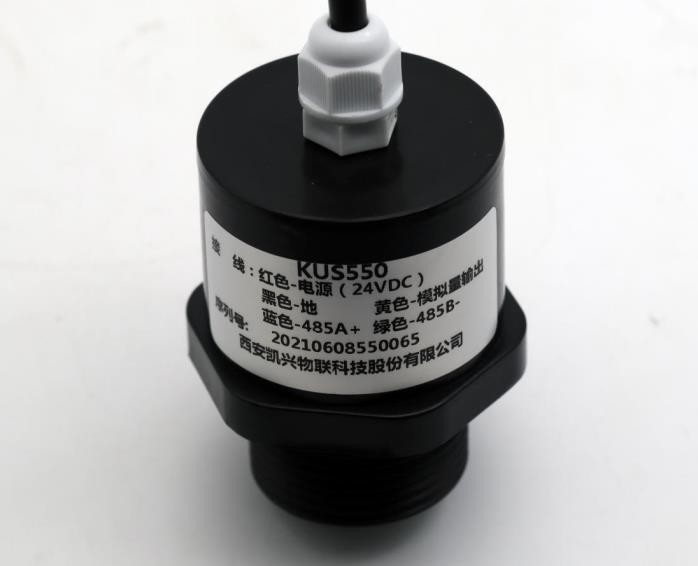

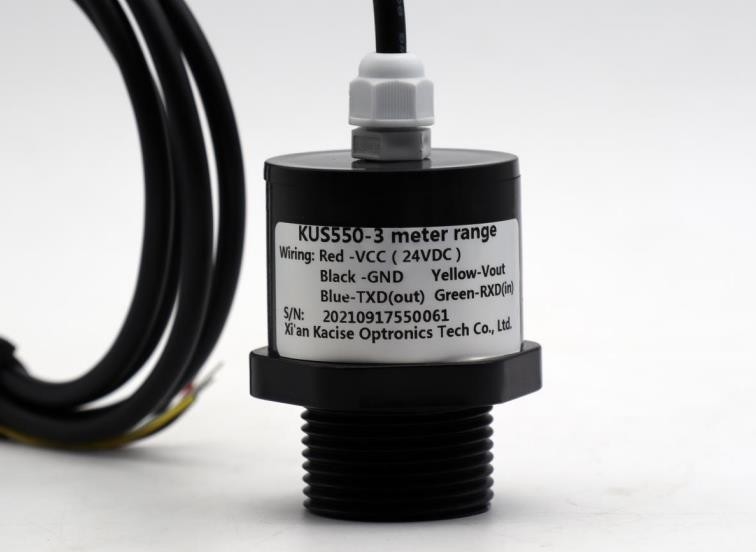

KUS550 Ultrasonic Level Sensor
1. Features
2.Dimension
Unit in the diagram is mm.
3.Electronic interface and signals definition
Analogue output type wiring diagram
4.Product parameters
General specifications
| Model: KUS550 | |
| Measuring range |
0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B； |
| Blind spot | The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm; |
| Supply voltage | 3.3 ... 30 VDC, ripple 10 %SS |
| Working current | ≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA; |
|
Output signal |
0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output. |
| Measurement accuracy | ≤1 %F.S. |
| Temperature compensation | Yes |
| Ranging resolution | 0.1mm； |
5.Applications
. Tank level measurement
. Bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Long range object detection
. Industrial automation
6.Window mode normally-open and liner mode positive slope output function program routine diagram.
Selection reminder: For special requirements, please contact our company and indicate in the order.
Precautions:
1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.
2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
