| Model Number: | KUS600 Series |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton/wooden case, or customers requests |
| Delivery Time: | 5-8 working days |
| Supply Ability: | 10000pcs/month |
| Name: | IP67 Ultrasonic Transducer Sensor | Theory: | Ultrasonic Sensor |
|---|---|---|---|
| Type: | Waterproof | Center Frequency: | 25khz +- 1khz |
| Sensitivity: | Adjustable | Warranty: | 12 Months |
| High Light: | 5m Sensing Range Ultrasonic Level Transducer,Waterproof Ultrasonic Transducer Probe,IP67 Piezoelectric Ultrasonic Sensor |
||

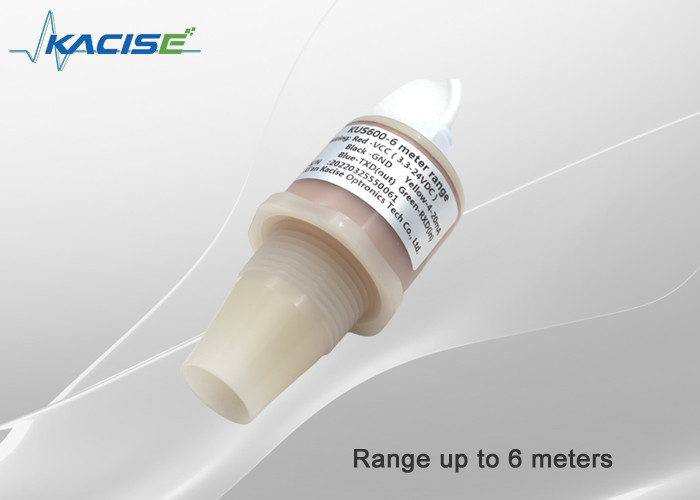

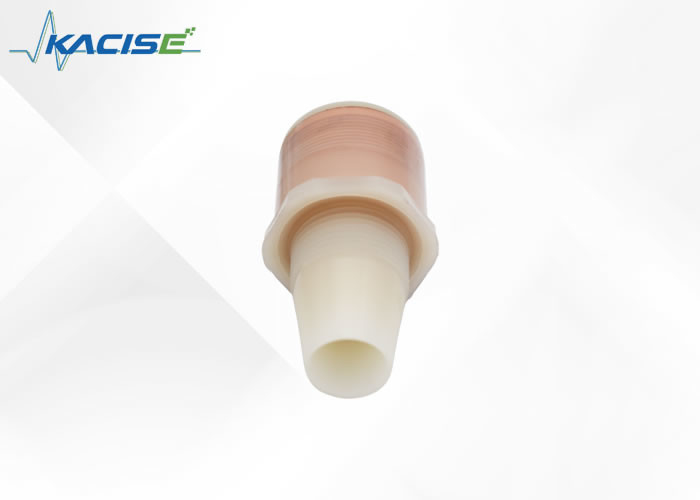

IP67 Ultrasonic Transducer Sensor
1.Dimensions
Unit in the diagram is mm.
600 series transmitter dimensions
2.Electronic interface and signals definition
| Cable color | Pin | Description | Note |
| Red | 1 | Power supply | |
| Black | 2 | GND | |
| Yellow | 3 | Analogue output | The 600B will work in mode 1 or 0 cannot work in power save mode, if the 4-20mA, 0-3.3V 0-5V analogue output used. |
| Blue | 4 | RS485A+ | TTL-TXD for ttl output signal |
| Green | 5 | RS485B- | TTL-RXD for ttl output signal |
|
Model:600
|
|
| Sensing range | 0.6m-5m Low-power products also support wide voltage input, this range is 3.3V power supply range (customers can customize 6m range products) |
| Adjustment range | 0.3….3m |
| Unusable area | 0 ...0.3m |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx.220 kHz |
| Response delay | approx. 10 ms |
| Output signal | 0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output. |
Electrical specifications
| No-load supply current I0 | ≤ 20 mA active period ≤0.3mA during sleep time |
| Electrical connection | 5-core cable (analog output), 6-core cable (switch output)； |
| Ranging resolution | 1mm； |
| Measurement accuracy | ≤1 %F.S. |
Working conditions
| Working temperature | -40…85℃(233...358K) |
| Storage temperature | -40…85℃(233...358K) |
| Temperature compensation | Yes |
| Protection class | IP67 |
| Supply voltage | 3.3 ... 24 VDC, ripple 10 %SS |
4.Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
