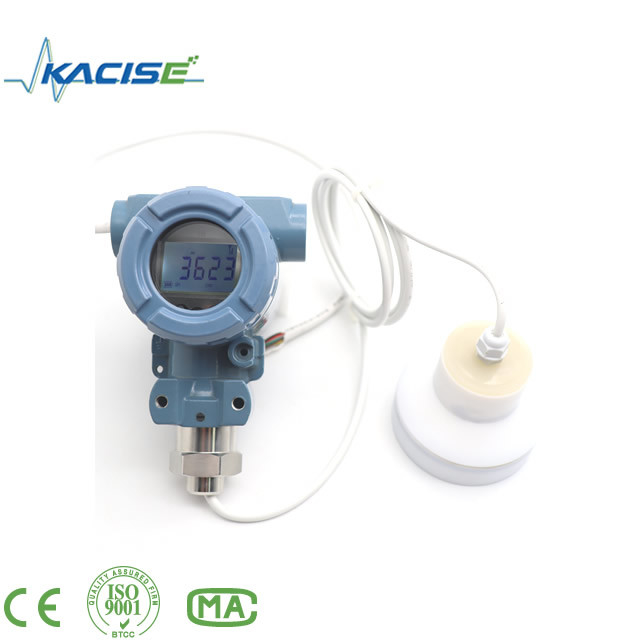

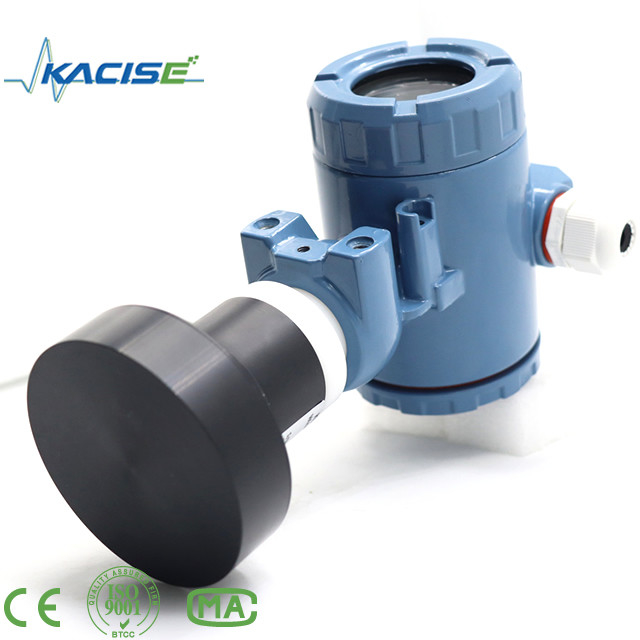

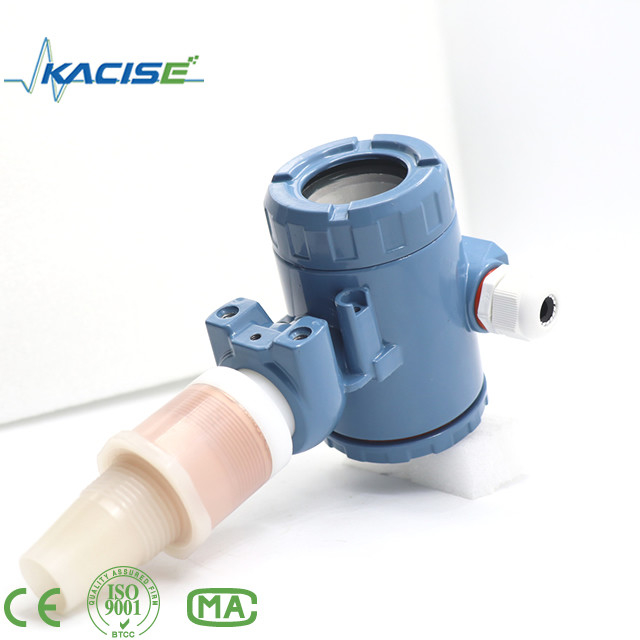

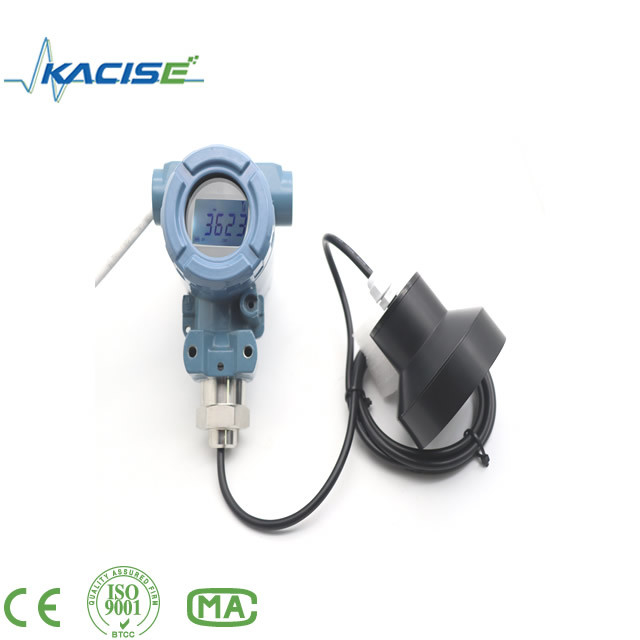

5000mm Liquid Level Waterproof Ultrasonic Sensor With CE Certification

5000mm Liquid Level Waterproof Ultrasonic Sensor With CE Certification

  • 5000mm Liquid Level Waterproof Ultrasonic Sensor With CE Certification
  • 5000mm Liquid Level Waterproof Ultrasonic Sensor With CE Certification
  • 5000mm Liquid Level Waterproof Ultrasonic Sensor With CE Certification
  • 5000mm Liquid Level Waterproof Ultrasonic Sensor With CE Certification
5000mm Liquid Level Waterproof Ultrasonic Sensor With CE Certification
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KUS640 Series
Contact Now
Detailed Product Description
Features: High Sensitivity VDC: 30 VDC
Series: KUS640 Series Function: Digital Output Temperature Compensation
Digital Output: RS485 Shell Material: PVC /PVDF/PTFE
High Light:

5000mm Ultrasonic Tank Level Sensor

,

Liquid Level Piezo Ultrasonic Sensor

,

CE Ultrasonic Level Sensor

KUS640 Series

Product overview

KUS640 series intelligent ultrasonic level gauge/level sensor is a level gauge product with on-site display and 4-20mA remote transmission 485 remote transmission launched by our company.

Product Features

◆Power supply: 24VDC, customized support 12-24VDC

◆Special wide temperature LCD display (-30℃~80℃);

◆Vertical installation or axial installation, providing a variety of liquid level/level interfaces and interface materials;

◆ LCD with parameterization and three setting buttons.



Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.



Product Features

◆Power supply: 24VDC, customized support 12-24VDC

◆Special wide temperature LCD display (-30℃~80℃);

◆Vertical installation or axial installation, providing a variety of liquid level/level interfaces and interface materials;

◆ LCD with parameterization and three setting buttons.

5000mm Liquid Level Waterproof Ultrasonic Sensor With CE Certification 0

Parameters

Enter
Measured variable liquid level, material level
Measuring range

150mm-1000mm(Can be customized according to demand)

200mm-3000mm/300mm-6000mm/300mm-12000/600mm-20000mm/1.2m-30m/1.8-50m

Output
Comprehensive accuracy RS485/4-20mA,±1%FS/ 0.15℃
Temperature compensation -10℃~70℃
Vibration effects < ± 0.05%/g,500Hz in all directions (according to IEC 68-2-64)
Rated conditions Environmental conditions
ambient temperature -25~+85℃
Storage temperature -40~+85℃
Protection class IP65 ,Complies with EN 60529
Electromagnetic Compatibility EN 61326/A2 Appendix A (2001 )
Display and control
show SFTN liquid crystal, green backlight, 5-digit display.
limit value Free settings
Parameter settings Use 3 buttons
Unit mm,The default unit is m.
Weight About 1.35kg
Materials of non-wetted parts
Joint 1NPT,Stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements).
Electrical connections Make waterproof connectors, air vent cable entries according to EN 175301-803A
Measurement period ≤default 200ms, user set

Selection reminder: For special requirements, please contact our company and indicate in the order.

Precautions:

1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.

2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
