Name: KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof

Water Ultrasonic Level Sensor PVDF

KUS550 Ultrasonic Tank Level Meter

Waterproof Preservative Tank Level Meter

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUS550

Request A Quote

Product Details

Response Time:

＜50ms

Beam Angle:

7°±2

Temp. Compensation:

Inside/outside/fix Temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, Etc, Customizable)

IP Grade:

IP65

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

Highlight:

Water Ultrasonic Level Sensor PVDF

KUS550 Ultrasonic Tank Level Meter

Waterproof Preservative Tank Level Meter

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Supply Ability

1000 Pieces per Week

30m Ultrasonic Transducer Sensor RS485 Output Liquid Level Sensor

Get Best Price

Video

10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth

Get Best Price

Video

RS485 output 15m wireless water level sensor

Get Best Price

5V Ultrasonic Transducer Sensor Non Contact Fluid Level Sensor

Get Best Price

86--17719566736

Contact Now

Product Description

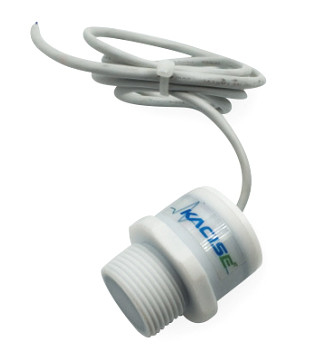

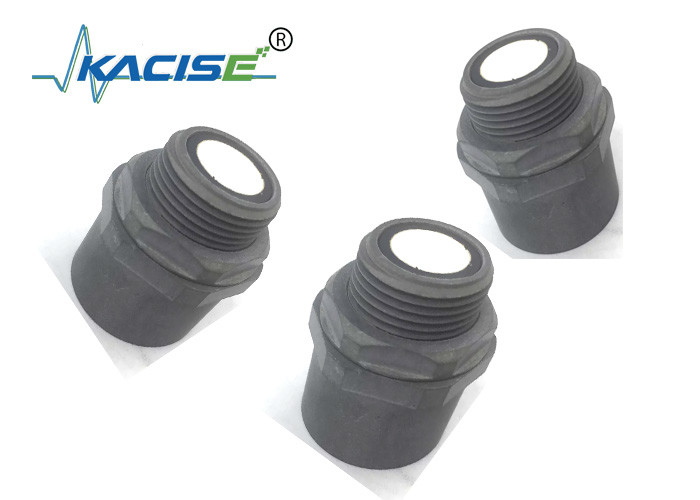

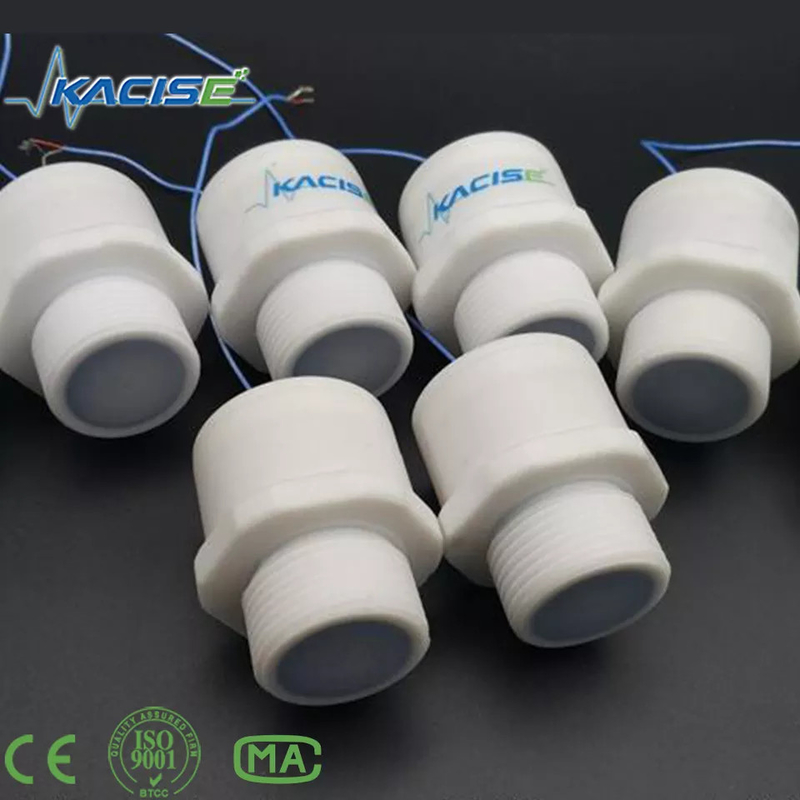

KUS550 Water Ultrasonic Level Sensor PVDF Preservative Tank Level Meter Waterproof

Product Attributes

Attribute	Value
Response Time	＜50ms
Beam Angle	7°±2
Temp. Compensation	inside/outside/fix temp.
Operating Voltage	14.5VDC~27VDC
Output	RS485,0~5V
Operating Ambient Temp.	0~70℃ (-40~85℃, -55~125℃, etc, customizable)
IP grade	IP65
Detection Range	200mm~3000mm
Transducer Frequency	70KHZ
Repeatability Precision	≤1%

Product Description

Anti Corrosion Chemical Liquid Measurement / NPT PTFE Ultrasonic Level Sensor for monitoring liquid levels and barns

KUS550 Ultrasonic Distance Sensor

Product Features

High sensitivity
Compact and robust structure
IP68 high protection rating
Corrosion resistant casing, suitable for corrosive medium and application

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing, designed to meet IP65.

Technical Specifications

Model	KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm
