Name: KUS550 Sewage Pool Ultrasonic Level Meter With Thermo Sensor Waterproof RS485，High sensitivity
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

KUS550 Sewage Pool Ultrasonic Level Meter With Thermo Sensor Waterproof RS485，High sensitivity

Sewage Pool Ultrasonic Level Meter

Waterproof RS485 Ultrasonic Transducer Sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUS550

Document:

KUS550 series ultrasonic se....8.pdf

Request A Quote

Product Details

Response Time:

＜50ms

Beam Angle:

7°±2

Temp. Compensation:

Inside/outside/fix Temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, Etc, Customizable)

IP Grade:

IP65

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

Highlight:

Sewage Pool Ultrasonic Level Meter

Waterproof RS485 Ultrasonic Transducer Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

1000 Pieces per Week

10mW Resolution KWD300 Ultrasonic Noise Detection Sensor for Precise Detection

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

KWD520 M42＆M45 Hydrophone

Get Best Price

KWD510 M26 Hydrophone

Get Best Price

86--17719566736

Contact Now

Product Description

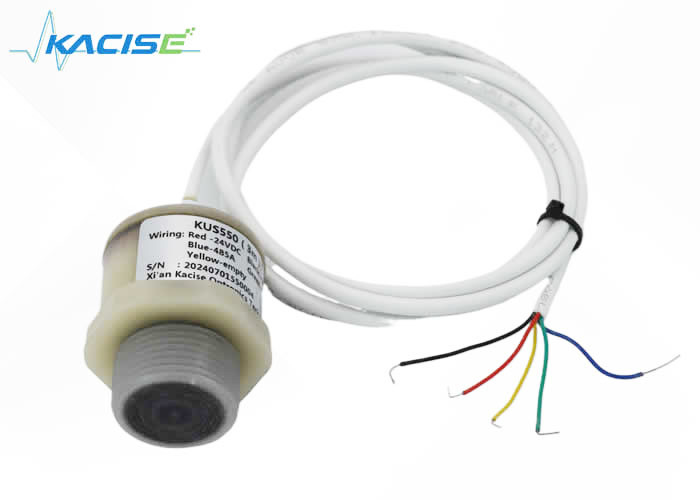

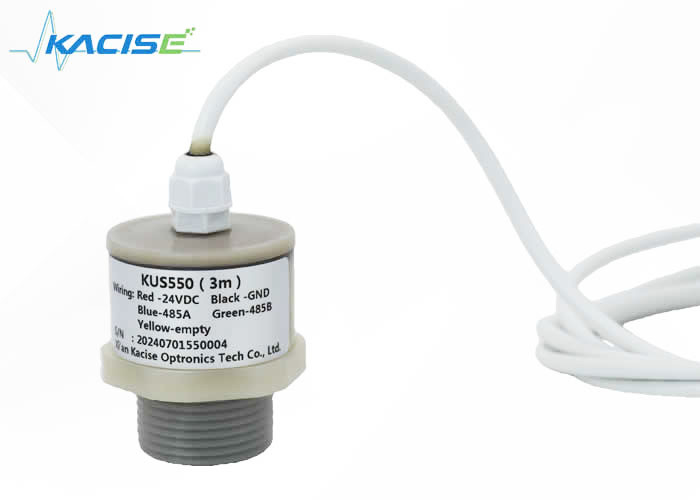

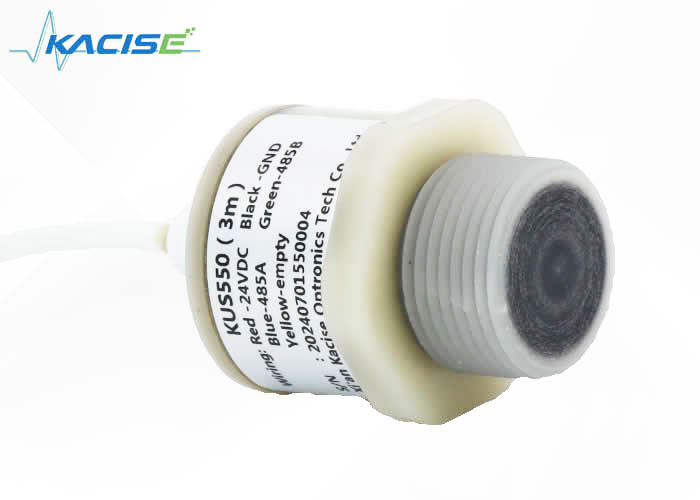

KUS550 Sewage Pool Ultrasonic Level Meter With Thermo Sensor Waterproof RS485,High sensitivity

Features

High sensitivity.

Compact and robust structure.

IP68 high protection rating.

Corrosion resistant casing, suitable for corrosive medium and application

KUS550 low-power ultrasonic liquid level gauge is a real low-power ultrasonic sensor with low operating current, the stable time is short and the stability is good. Especially suitable for power supplies with short response times and emission times not exceeding 1ms, to meet the requirement of short wake-up time. It has the characteristics of low voltage, low power consumption, easy installation and use; Temperature digital compensation function, wide operating temperature range; high precision, high frequency response, good stability; impact resistance, resistance fatigue, high reliability. Widely used in the Internet of Things, water supply, industrial control and other fields.

Dimension

Unit in the diagram is mm.

Parameter

General specifications

Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS

KUS550 Sewage Pool Ultrasonic Level Meter With Thermo Sensor Waterproof RS485，High sensitivity 1
