Name: Waterproof Ultrasonic Water Level Meter With Thermo Sensor Output RS485
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

Waterproof Ultrasonic Water Level Meter With Thermo Sensor Output RS485

RS485 Ultrasonic Water Level Meter

Thermo Ultrasonic Water Level Meter

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUS550

Document:

KUS550 series ultrasonic se....8.pdf

Request A Quote

Product Details

Response Time:

＜50ms

Beam Angle:

7°±2

Temp. Compensation:

Inside/outside/fix Temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, Etc, Customizable)

IP Grade:

IP68

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

Highlight:

RS485 Ultrasonic Water Level Meter

Thermo Ultrasonic Water Level Meter

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

1000 Pieces per Week

KUS-W80 Underwater Distance Sensor 200kHz Transducer Frequency and Low No-load Current for Underwater Distance Measurement

Get Best Price

KUS-W50 Underwater Distance Sensor Reverse Polarity Protection And 0.6m Blind Area For Seamless Underwater Monitoring

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

High Accuracy KWD400 360-Degree Scanning Sonar Power Consumption ≤12W

Get Best Price

86--17719566736

Contact Now

Product Description

Waterproof Ultrasonic Water Level Meter With Thermo Sensor Output RS485

1. Product features:

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

2. Product Description

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP68.

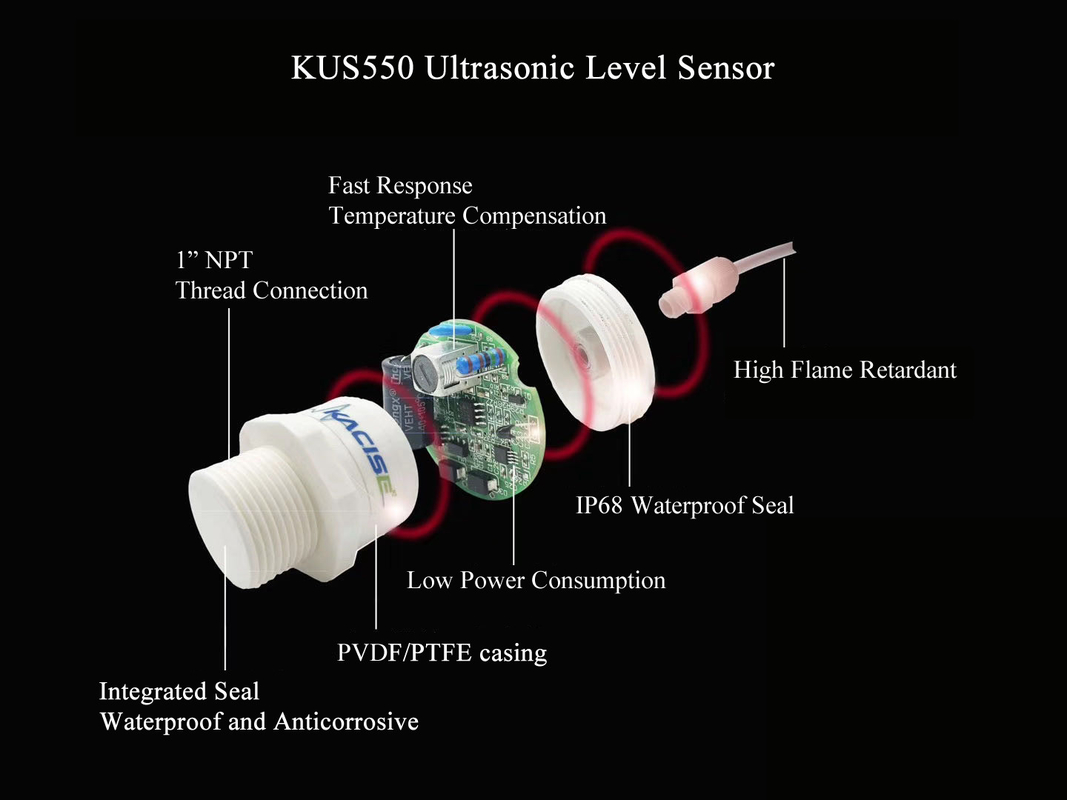

Waterproof Ultrasonic Water Level Meter With Thermo Sensor Output RS485 0

3. Parameter

General specifications

Model: KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B；
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP67
shell material	PVC /PVDF/PTFE/ABS

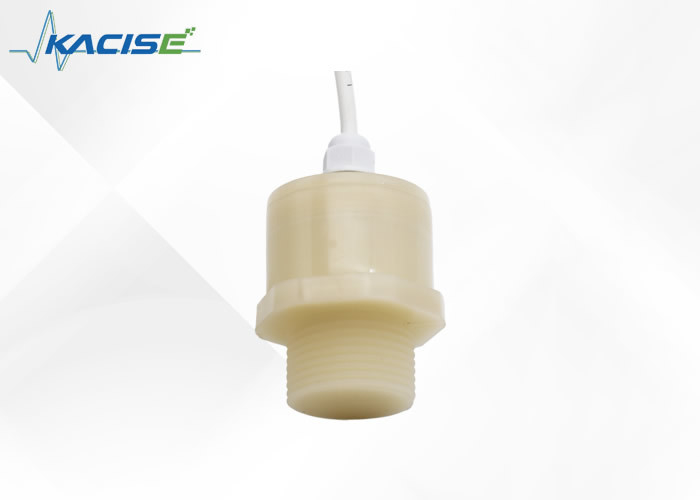

Waterproof Ultrasonic Water Level Meter With Thermo Sensor Output RS485 1

4. Dimensions

Waterproof Ultrasonic Water Level Meter With Thermo Sensor Output RS485 2

5. Wiring

Waterproof Ultrasonic Water Level Meter With Thermo Sensor Output RS485 3

6. Application

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation
