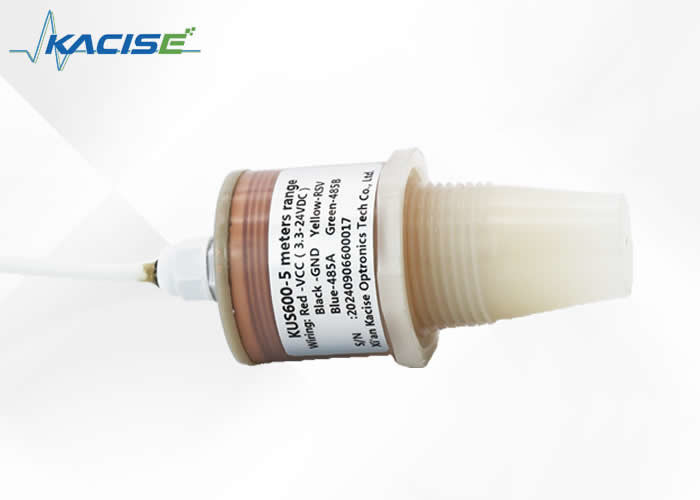

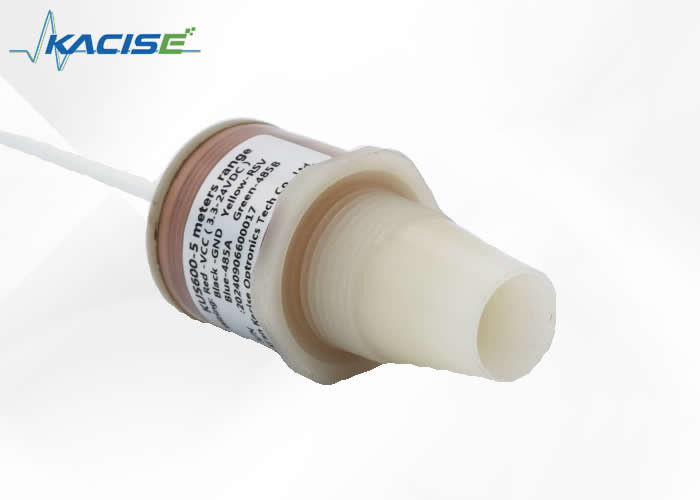

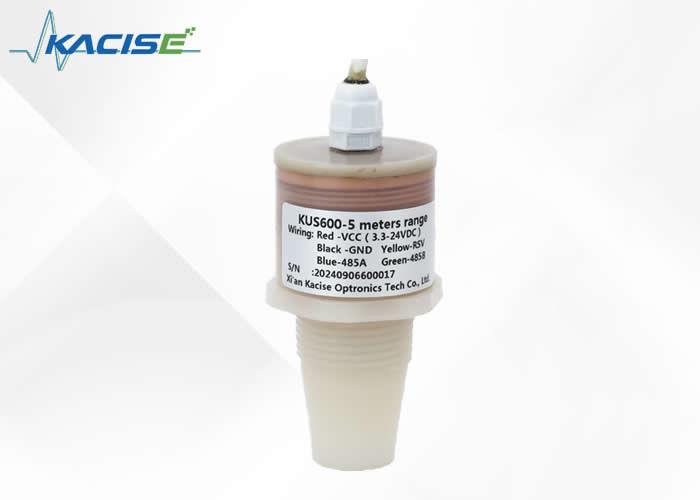

Name: 3.3V RS485 Ultrasonic Level Sensor with 3000mm Detection Range for Waste Pool Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS series
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

3.3V RS485 Ultrasonic Level Sensor with 3000mm Detection Range for Waste Pool Monitoring

RS485 Liquid Ultrasonic Level Meter

Waste Pool Level Ultrasonic Transducer Sensor

3.3V Ultrasonic Transducer Sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

Model Number:

KUS series

Document:

KUS600 series ultrasonic se....7.pdf

Request A Quote

Product Details

Product:

Ultrasonic Distance Sensor

Detection Range:

300mm~3000mm

Transducer Frequency:

Approx. 220kHz

Output:

RS485 + 4-20mA/0-10V

Input Power:

3.3V~24V

IP Grade:

IP68

Highlight:

RS485 Liquid Ultrasonic Level Meter

Waste Pool Level Ultrasonic Transducer Sensor

3.3V Ultrasonic Transducer Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1000 Pieces per Week

KUS650 Ultrasonic Tank Wireless Level Sensor with IP65 Protection and 200mm~3000mm Detection Range for Sewage Treatment

Get Best Price

Video

KUM2500C Ultrasonic Fuel Tank Level Sensor with 0.1mm Measurement Resolution IP67 Protection and RS232/RS485/TTL/4-20mA Interface

Get Best Price

Video

15m Non-Contact Ultrasonic Water Level Sensor with RS485 Output IP68 Protection Corrosion Resistant High Sensitivity

Get Best Price

Video

Smallest Or Miniature Liquid Level Ultrasonic Transducer Sensor PVDF Material

Get Best Price

Contact Now

Product Description

KUS600B 3.3V input power RS485 output low consumption for wireless transmission ultrasonic distance transmitter

3.3V RS485 Ultrasonic Level Sensor with 3000mm Detection Range for Waste Pool Monitoring 0

1. Electronic interface and signals definition

Cable color	Pin	Description	Note
Red	1	Power supply
Black	2	GND
Yellow	3	Analogue output	The 600B will work in mode 1 or 0 cannot work in power save mode, if the 4-20mA, 0-3.3V 0-5V analogue output used.
Blue	4	RS485A+	TTL-TXD for ttl output signal
Green	5	RS485B-	TTL-RXD for ttl output signal

For switch output

Cable color	Pin	Description	Note
Red	1	Power supply
Black	2	GND
Yellow	3	Switch output	Load current 1A@60V
White	4	Switch output	Load current 1A@60V
Brown	5	RS485A+	TTL-TXD for ttl output signal
Green	6	RS485B-	TTL-RXD for ttl output signal

2. Dimensions

Unit in the diagram is mm
3.3V RS485 Ultrasonic Level Sensor with 3000mm Detection Range for Waste Pool Monitoring 1

3. Parameter

General specifications

600B
Sensing range	600... 5000 mm@3.3V power supply. The measure distance can reach 6 meters if the power supply is 24V.
Adjustment range	300….5000mm
Unusable area	0 ... 600 mm
Response delay	approx. 10 ms

Electrical specifications

Operating voltage UB	3.3 ... 24 V DC , ripple 10 %SS
No-load supply current I0	≤ 20 mA active period and ≤0.3mA during sleep time

4. Description of Sensor Functions

The detail refers to the 600B software engineer application guide.

5. Installation conditions

If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

5. Ordering information

KUS	Body size	OUTPUT	Max range	Description
	600
	Customized	Customized
		SW	Switch Output (online configurable for NPN or PNP)
		mA	3 wire 4-20mA output
		10V	Output is Vout 0-10V
		5V	Output is Vout 0-5V The power supply range is 5.0 at least
		3.3V	Output is Vout 0-3.3V The power supply range is 3.3 at least
		RS485	Output is RS485
		TTL	UART TTL output
			XXX mm	Xxx mm is the maxim range can be detected, the default length is 1 meter
KUS	600	RS485	5000mm

6. Packing and shipping

3.3V RS485 Ultrasonic Level Sensor with 3000mm Detection Range for Waste Pool Monitoring 2

7. Company Information

3.3V RS485 Ultrasonic Level Sensor with 3000mm Detection Range for Waste Pool Monitoring 3
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
3.3V RS485 Ultrasonic Level Sensor with 3000mm Detection Range for Waste Pool Monitoring 4
