| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | KUS series |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |

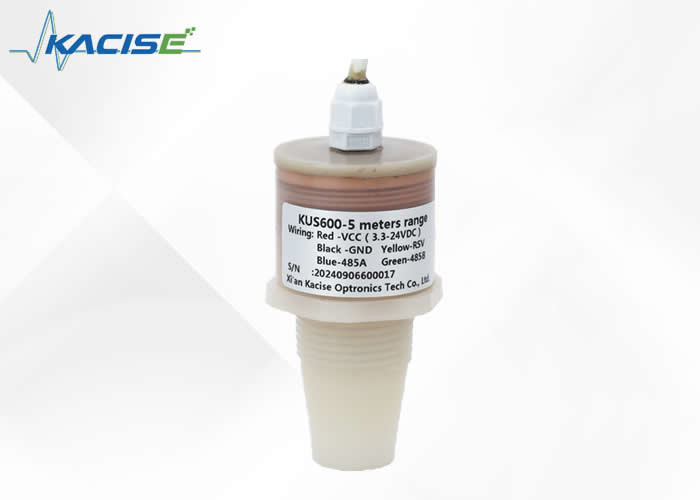

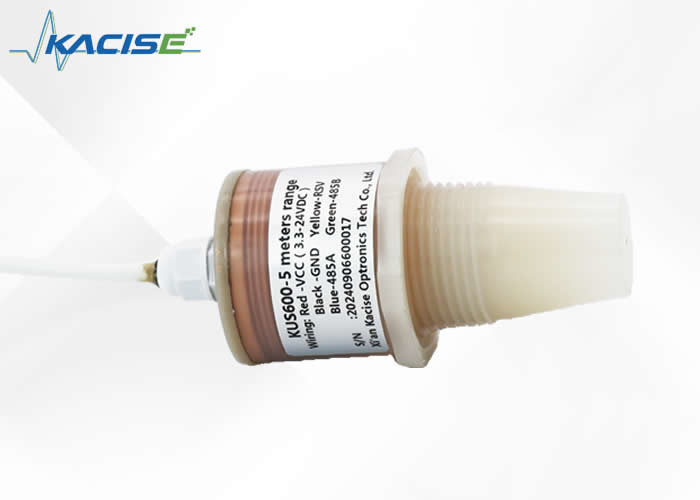

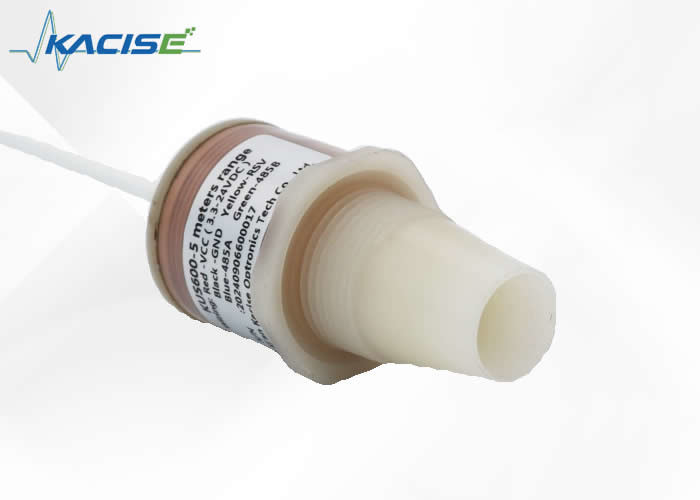

| Product: | Ultrasonic Distance Sensor | Detection Range: | 300mm~3000mm |
|---|---|---|---|
| Transducer Frequency: | Approx. 220kHz | Output: | RS485 + 4-20mA/0-10V |
| Input Power: | 3.3V~24V | IP Grade: | IP68 |
| High Light: | RS485 Liquid Ultrasonic Level Meter,Waste Pool Level Ultrasonic Transducer Sensor,3.3V Ultrasonic Transducer Sensor |
||
| Cable color | Pin | Description | Note |
| Red | 1 | Power supply | |
| Black | 2 | GND | |
| Yellow | 3 | Analogue output | The 600B will work in mode 1 or 0 cannot work in power save mode, if the 4-20mA, 0-3.3V 0-5V analogue output used. |
| Blue | 4 | RS485A+ | TTL-TXD for ttl output signal |
| Green | 5 | RS485B- | TTL-RXD for ttl output signal |
For switch output
| Cable color | Pin | Description | Note |
| Red | 1 | Power supply | |
| Black | 2 | GND | |
| Yellow | 3 | Switch output | Load current 1A@60V |
| White | 4 | Switch output | |
| Brown | 5 | RS485A+ | TTL-TXD for ttl output signal |
| Green | 6 | RS485B- | TTL-RXD for ttl output signal |
Unit in the diagram is mm
General specifications
|
600B |
|
| Sensing range | 600... 5000 mm@3.3V power supply. The measure distance can reach 6 meters if the power supply is 24V. |
| Adjustment range | 300….5000mm |
| Unusable area | 0 ... 600 mm |
| Response delay | approx. 10 ms |
Electrical specifications
| Operating voltage UB | 3.3 ... 24 V DC , ripple 10 %SS |
| No-load supply current I0 | ≤ 20 mA active period and ≤0.3mA during sleep time |
The detail refers to the 600B software engineer application guide.
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
5. Ordering information
| KUS | Body size | OUTPUT | Max range | Description |
| 600 | ||||
| Customized | Customized | |||
| SW | Switch Output (online configurable for NPN or PNP) | |||
| mA | 3 wire 4-20mA output | |||
| 10V | Output is Vout 0-10V | |||
| 5V | Output is Vout 0-5V The power supply range is 5.0 at least | |||
| 3.3V | Output is Vout 0-3.3V The power supply range is 3.3 at least | |||
| RS485 | Output is RS485 | |||
| TTL | UART TTL output | |||
| XXX mm | Xxx mm is the maxim range can be detected, the default length is 1 meter | |||
| KUS | 600 | RS485 | 5000mm | |
