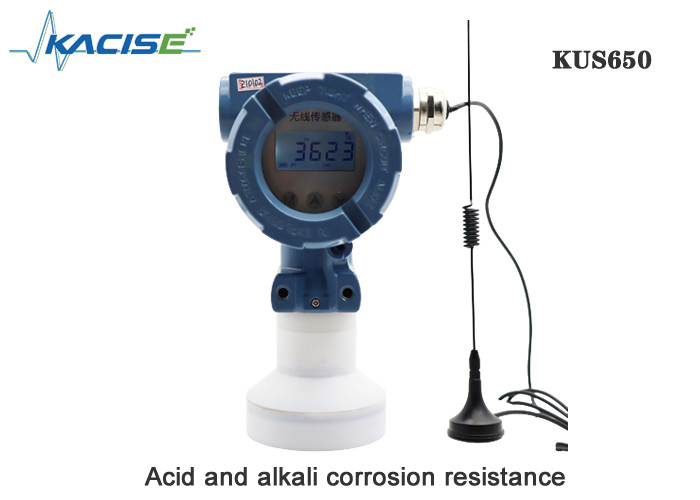

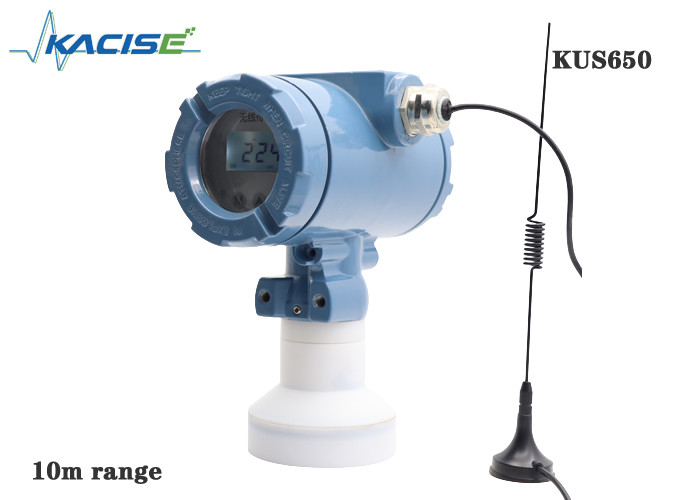

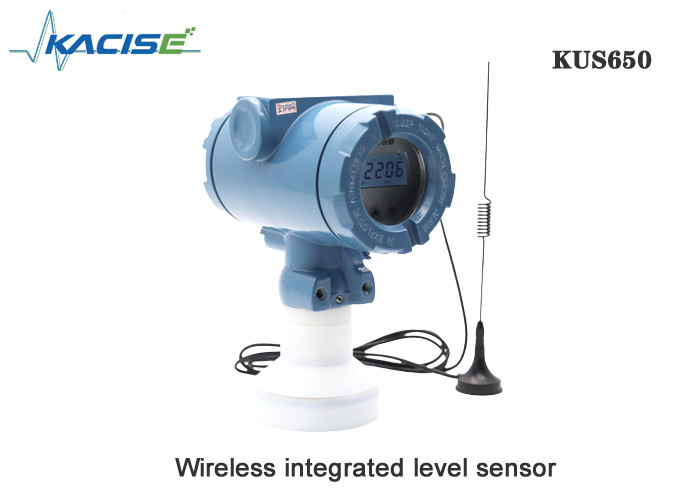

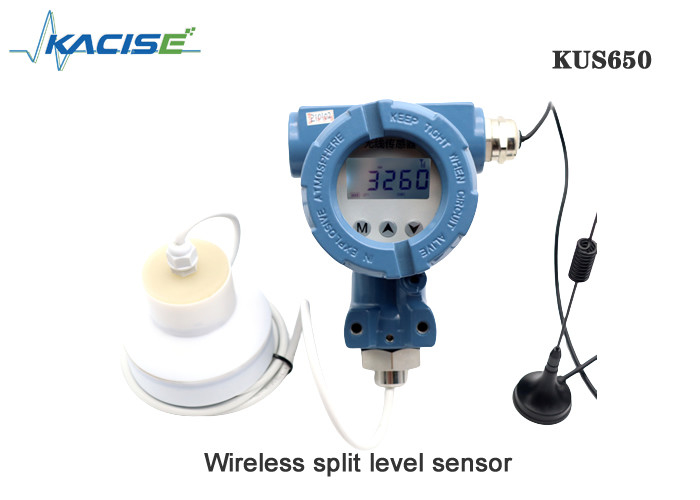

KUS650 Corrosion and acid and alkali resistance distance ultrasonic wireless level sensor iot with 4G/Lora/GPRS/NB

KUS650 Instruction Manual

1. Product overview

• The wireless ultrasonic level gauge for the Internet of things can display the data of the on-site level gauge as long as there is a computer, without PLC;
• The upper and lower alarm values can be set, and the alarm will be sent on the computer;

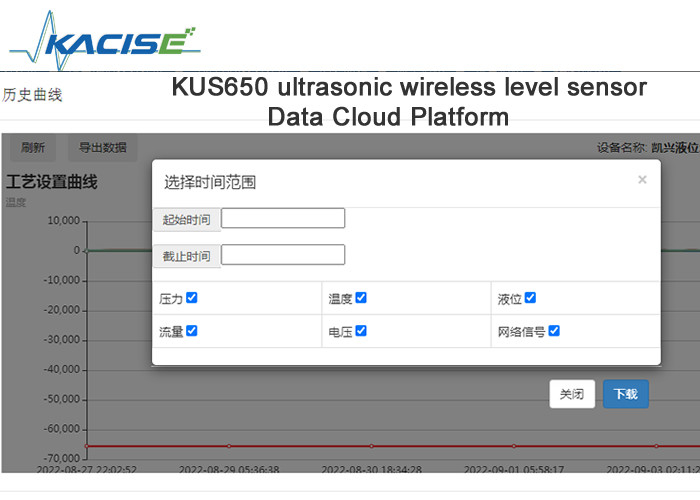

• The measured data can be stored and queried later.

2. Product Features

3. Application

KUS650 series is used to indicate and monitor the changes of water pressure/water level value at the installation site, and upload the real-time data to the centralized management platform through the built-in wireless transmission module, which is convenient for users to manage intelligently and centralizedly. It is mainly used in the following industries:

• Fire water system    • City water supply
• Sewage treatment   • Long-distance heating
• Food industry          • Chemical, energy

4. Installation and maintenance

1. Installation
1) The instrument should be installed vertically and horizontally.
2) When using with other instruments, pay attention to the matching of the range.
3) Before installing the digital meter on the device, check whether the meter head is clean. During use, the pipeline should be kept clean.
2. Maintenance
1) The instrument is a high-precision instrument, and should be selected in a place with air circulation, easy observation, and easy maintenance and operation.
2) Although the digital sensor can exceed the range during use, long-term use will affect the accuracy of the measurement and may damage the meter. It is recommended that the user use the meter according to the range.
3) When the LCD screen of the wireless digital meter shows that the battery voltage is blank, please replace the battery to ensure the normal measurement.
Note: The rechargeable battery can only be charged, and the charging time is 3~4 hours.

5. Storage and transportation

1. The product should be stored at -40℃~+80℃, relative humidity not more than 90%, ventilated, dry and non-corrosive gas warehouse.
2. The product, the certificate of conformity and the instruction manual are packed in one package, and strong collision is strictly prohibited during transportation.
Note: The contents of the manual are subject to change without prior notice, please pay attention to keep in touch.

6.Application data
