| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUS600 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 21*16*8cm,0.3kg |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Range: | 0.6m-5m | Unusable Area: | 0 ...0.6m |
|---|---|---|---|
| Power Supply: | 3.3V-24V | Output Signal: | 0-5V/0-3V/4-20mA/NPN/PNP/RS485 |
| Protection Class: | IP68 | Casing Material: | PVDF |
| Working Temperature: | -25…70℃(233...358K) | Storage Temperature: | -40…85℃(233...358K) |
| Ranging Resolution: | 1mm | Measurement Accuracy: | 0.5%-1 %F.S. |
| Temp. Compensation: | Yes |

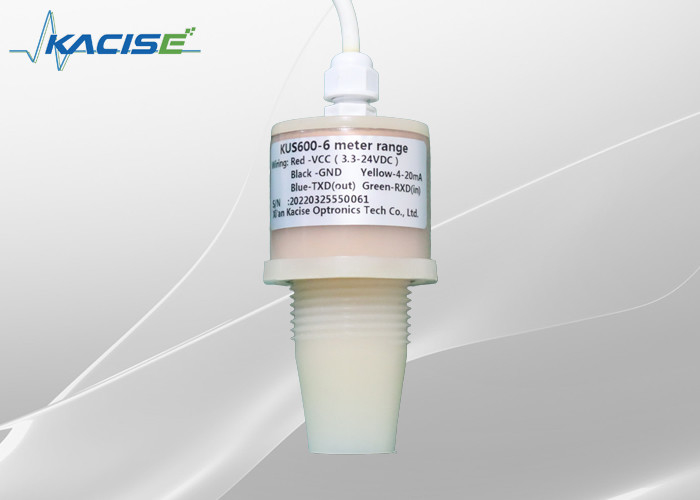

KUS600 Series Ultrasonic Sensor
1. Features

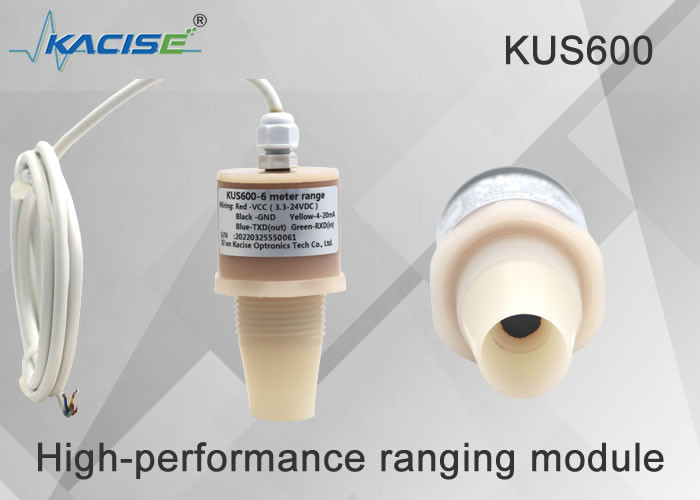

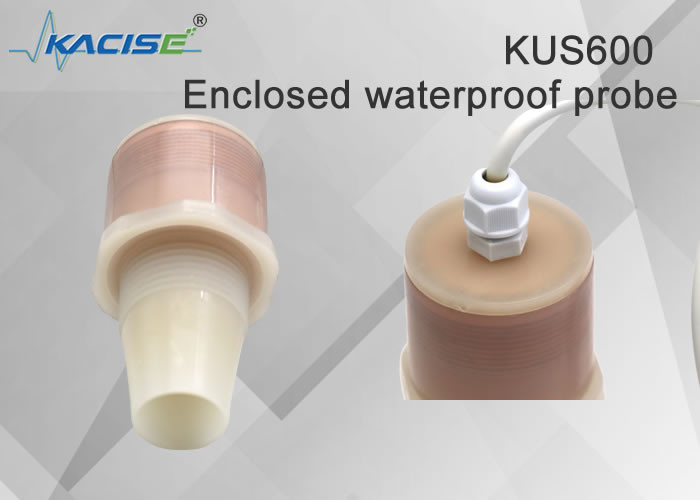

A high-performance ranging module designed with a closed split waterproof probe. With a certain level of dustproof and waterproof, it is suitable for wet and harsh measurement occasions.
The larger measuring range of 5 meters is suitable for different detection conditions. It is a high-performance, high-reliability commercial-grade functional module with simple operation.
2. Dimension
Unit in the diagram is mm.
3. Electronic interface and signals definition
| Wire color | Pin | Description | Note |
| Red | 1 | Power supply | 3.3V-24V |
| Black | 2 | GND | |
| Yellow | 3 | Analogue output | Low power version hasn’t analogue output |
| Blue | 4 | RS485A+ | |
| Green | 5 | RS485B- |
4. Parameter
|
Model:KUS600 |
||

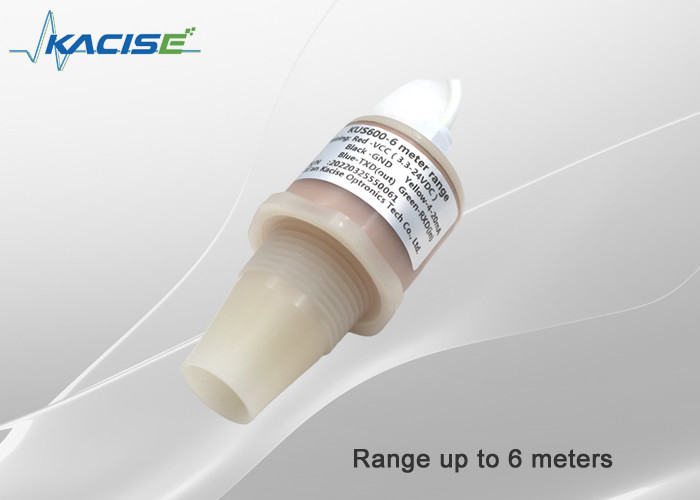

| Range | 0.6m-5m, low-power product supports wide voltage input, this range is for 3.3V power supply (6m range customizable) | |
| Unusable area | 0 ...0.6m | |
| Power supply | 3.3V-24V | |
| Power consumption | less than 0.3mA when sleep, less than 20mA when emitting, less than 5mA than when measurement | |
| Output signal | 0-5V /4-20mA/NPN/PNP/RS485 | |
| Electrical connection | 5-core cable (analog), 6-core cable (switch) | |
| Ranging resolution | 1mm | |
| Measurement accuracy | 0.5%-1 %F.S. | |
| Temp. compensation | Yes | |
| Working temperature | -25…70℃(233...358K) | |
| Storage temperature | -40…85℃(233...358K) | |
| Protection class | IP68 | |
| Casing Material | PVDF | |
5.Installation conditions
If the sensor is installed at the environment temperature fall below 0℃, it should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the nuts, it has to be fixed at the middle of the housing thread.
6. Ordering information
| KUS | Body size | Output | Max range | Description | |
| 600 | |||||
| Customized | Customized | ||||
| 4-20mA | 4-20mA mode output with RS485 MODBUS protocol | ||||
| 0-3.3V | The power supply range is 3.3 at least | ||||
| 0-5.0V | The power supply range is 5.0 at least | ||||
| RS485 | Power save mode with RS485 MODBUS protocol | ||||
| XX m | XX m is the maxim range can be detected, the default length is 1 meter | ||||
| KUS | 600 | RS485 | 5m | ||
7.PVDF Corrosion Resistance Data Sheet
| 介质 | 浓度% | 最高使用温度℃ | 介质 | 浓度% | 最高使用温度℃ |
| 硫酸 | ＜10 | 85 | 乙二酸 | — | 60 |
| — | ＜60 | 85 | 柠檬酸 | — | 85 |
| — | 80-93 | 80 | 苯甲酸 | — | 85 |
| — | 98 | 65 | 苯甲基酸 | — | 50 |
| 甲苯基酸 | 50 | 60 | 酸 | — | 60 |
| 硝酸 | ＜10 | 85 | 水杨酸 | — | 85 |
| — | ＜50 | 50 | 氢氧化钠 | ＜50 | 75 |
| — | 70-90 | 25 | 氢氧化钙 | — | 85 |
| 乙醇酸 | — | 25 | 硫酸铵 | — | 85 |
| 盐酸 | — | 85 | 硝酸铵 | — | 85 |
| 磷酸 | ＜85 | 85 | 甲苯 | — | 75 |
| — | ＞85 | 85 | 乙苯 | — | 50 |
| 氢氟酸 | 40 | 85 | 异丙酸 | — | 60 |
| 氢碘酸 | 含12%以上 | 85 | 脂肪酸 | — | 85 |
| 甲酸 | — | 85 | 羟基基酸 | — | 50 |
| 乙酸 | ＜50 | 85 | 氯化钙 | — | 85 |
| — | 80 | 65 | 醋酸铵 | — | 80 |
| 冰 | — | 50 | 氨水 | — | 85 |
| 丙酸 | — | 85 | 硫酸钠 | — | 85 |
| 草酸 | — | 85 | 硝酸铝 | — | 85 |
| 丁酸 | — | 50 | 亚硫酸钠 | — | 85 |
| 氢氰酸 | — | 85 | 苯甲酸钠 | — | 85 |
| 亚硫酸 | — | 85 | 碳酸氢钠 | — | 85 |
| 亚硝酸 | — | 70 | 碳酸镁 | — | 85 |
| 碳酸 | — | 85 | 氯化亚铁 | — | 85 |
| 次氯酸 | — | 60 | 苯 | — | 85 |
| 甲烷磺酸 | — | 85 | 甲酚 | — | 65 |
| 苯磺酸 | — | 40 | 氟 | 干或湿 | 20 |
| 苹果酸 | — | 85 | 碘 | 液 | 65 |
