Name: KUS640 remote split type ultrasonic level sensor with diaplay for level and distance measurement
Brand: Kacise
SKU: KUS640
Rating: 4.7 (195 reviews)

Home Products Ultrasonic Transducer Sensor

KUS640 remote split type ultrasonic level sensor with diaplay for level and distance measurement

Product Details:

Place of Origin:	China
Brand Name:	Kacise
Model Number:	KUS640

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	251619cm,1.2kg
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100+

Contact Now

Detailed Product Description

Range:	1m~50m	Output:	4~20mA/NPN/PNP/RS485
Temperature Compensation:	-10℃～70℃	Vibration Effects:	< ± 0.05％/g，500Hz In All Directions (according To IEC 68-2-64
Measured Variable:	Liquid Level, Material Level	Ambient Temperature:	-25～+85℃
Protection Class:	IP65 ，Complies With EN 60529	Measurement Period:	≤default 200ms, User Set

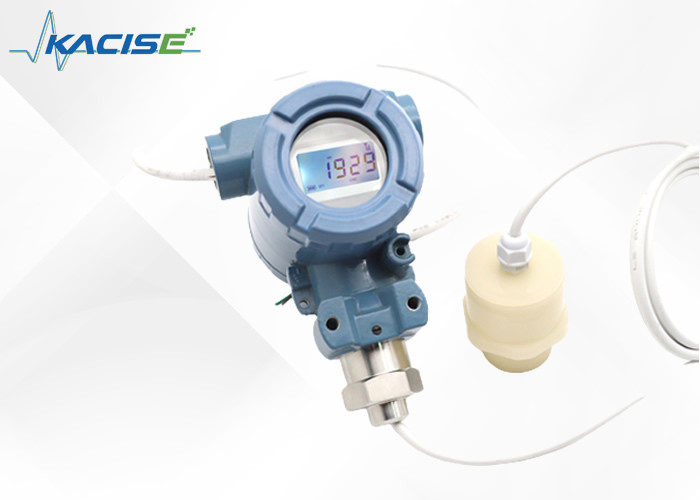

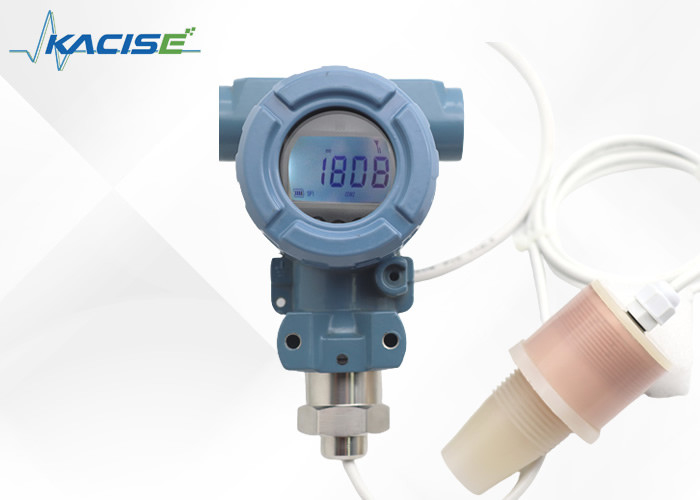

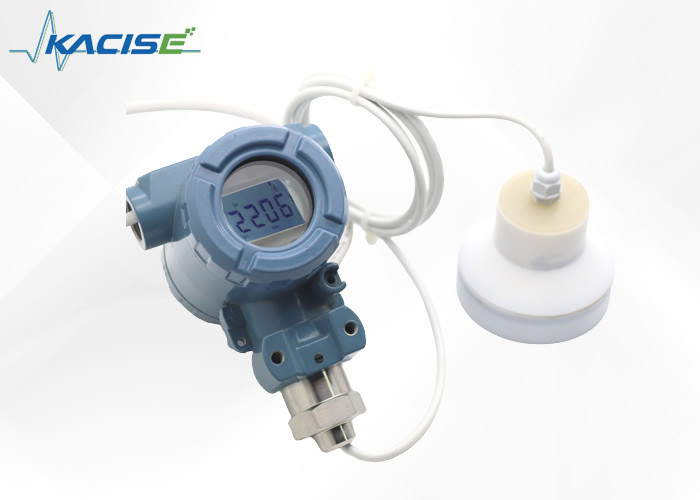

KUS640 split type ultrasonic level sensor with diaplay for level and distance measurement

Product overview
KUS640 series intelligent split ultrasonic level gauge/level sensor is a level gauge product with on-site display and 4-20mA remote transmission 485 remote transmission launched by KACISE.

Product Features

Measure the height of various liquids, widely used in liquid level and volume measurement of tanks, pools and reservoirs
Suitable for acid, alkali, salt, anti-corrosion, explosion-proof, high temperature and other environments.
The split type explosion-proof ultrasonic liquid level gauge adopts an explosion-proof cast aluminum casing, a PTFE probe, and a standard 1.2-meter cable.
24V power supply, 4-20MA/RS485/voltage/serial uart and other outputs, four-wire system.

Application
KUS640 series is used to indicate and monitor the changes of water pressure/water level value at the installation site, and upload the real-time data to the centralized management platform through the built-in wireless transmission module, which is convenient for users to manage intelligently and centralizedly. It is mainly used in the following industries:
• Fire water system
• Sewage treatment
• Food industry

• Chemical, energy

• Long-distance heating

• City water supply

Technical parameter

Enter
Measured variable	liquid level, material level
Measuring range	150mm-1000mm(*Can be customized according to demand*) 200mm-3000mm/300mm-6000mm/300mm-12000/600mm-20000mm/1.2m-30m/1.8-50m
Output
Comprehensive accuracy	RS485/4-20mA,±1%FS/ 0.15℃
Temperature compensation	-10℃～70℃
Vibration effects	< ± 0.05％/g,500Hz in all directions (according to IEC 68-2-64)
Rated conditions Environmental conditions
ambient temperature	-25～+85℃
Storage temperature	-40～+85℃
Protection class	IP65 ,Complies with EN 60529
Electromagnetic Compatibility	EN 61326/A2 Appendix A (2001 )
Display and control
show	SFTN liquid crystal, green backlight, 5-digit display.
limit value	Free settings
Parameter settings	Use 3 buttons
Unit	mm,The default unit is m.
Weight	About 1.35kg
Materials of non-wetted parts
Joint	1NPT,Stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements).
Electrical connections	Make waterproof connectors, air vent cable entries according to EN 175301-803A
Measurement period	≤default 200ms, user set

Order information

KUS	Model	Output	Range		Describe
	640				Product series model
	Customize
					Independent display header without remote transmission
		4-20mA			4-20mA remote transmission
		RS485			RS485 remote transmission (default)
			XXX mm		XXX mmIt means the maximum measurement distance is 1m-50m can be customized
			XXX mm	YYYmm	YYY is the length of the split order cable, the default is 1.2 meters
KUS	640	4-20mA	3000mm
