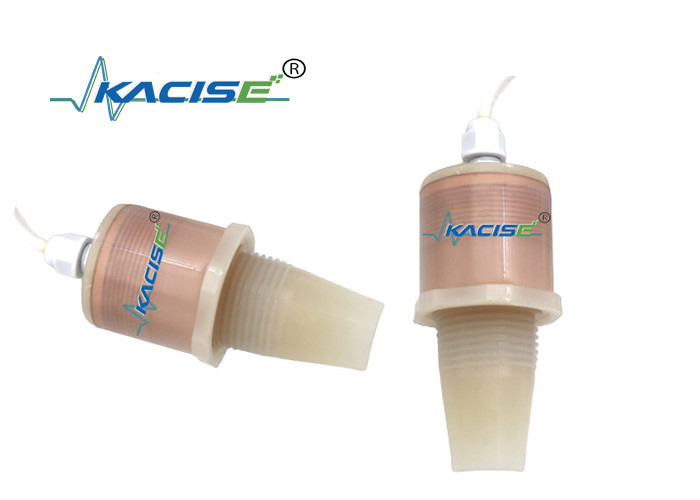

PVDF 5m intelligent Ultrasonic water level meter 5V RS485 output liquide Level Sensor KUS600

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

ce,ISO9001

Model Number:

KUS600

Document:

KUS600 series ultrasonic se....7.pdf

Request A Quote

PVDF 5m intelligent Ultrasonic water level meter 5V RS485 output liquide Level Sensor KUS600

Product Details

Product:

Ultrasonic Distance Sensor

Detection Range:

300mm~5000mm

Transducer Frequency:

Approx. 220kHz

Output:

RS485 + 4-20mA/0-10V

Input Power:

3.3V~24V

IP Grade:

IP68

Material:

PVDF

Type:

Waterproof

Theory:

Ultrasonic Sensor

Warranty:

12 Months

Product Name:

PVDF 5m Ultrasonic Water Level Meter

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

KUS-W80 Underwater Distance Sensor 200kHz Transducer Frequency and Low No-load Current for Underwater Distance Measurement

Get Best Price

KUS-W50 Underwater Distance Sensor Reverse Polarity Protection And 0.6m Blind Area For Seamless Underwater Monitoring

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

High Accuracy KWD400 360-Degree Scanning Sonar Power Consumption ≤12W

Get Best Price

86--17719566736

Contact Now

Product Description

KUS600B 3.3V input power RS485 output low consumption for wireless transmission ultrasonic distance transmitter

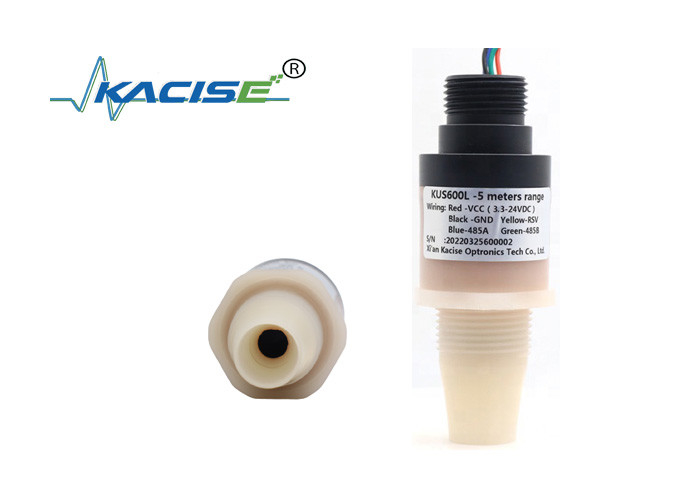

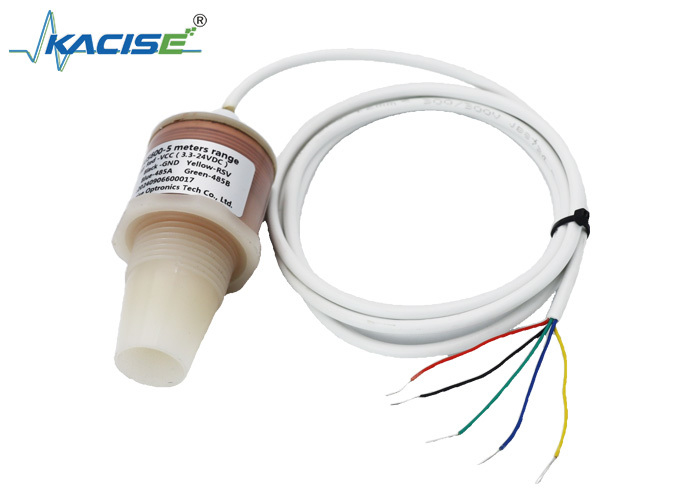

1. Electronic interface and signals definition

Electrical connections and signal definitions

Line order	Colour	Definition
1	Red	Power is positive
2	Black	power return ground
3	Yellow	Analog output, voltage output, current output switch output
4	Blue	RS485 A+ or uart TXD
5	Green	RS485 B- or uart RXD

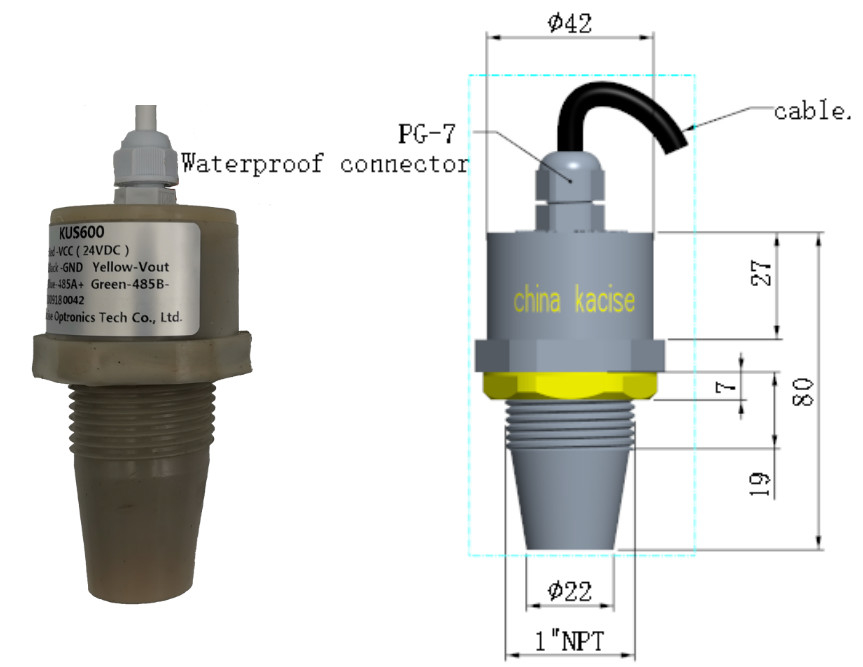

3. Dimensions

Unit in the diagram is mm

PVDF 5m intelligent Ultrasonic water level meter 5V RS485 output liquide Level Sensor KUS600 1

4. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

5. Ordering information

KUS	model	output	range	describe
	630	Product series model
	Custom made
		0-10V	Analog 0-10V output
		0-5V	Analog 0-5V output
		0-3V	Analog 0-3V output
		4-20mA	Analog 4-20mA output
		SW	Switch output
		Uart	Uart serial output MODBUS RTU protocol
		RS485	RS485 output MODBUS RTU protocol
			XX m	XX m means the maximum measurement distance (default 10m)
KUS	550	RS485	2m

Packing and shipping

PVDF 5m intelligent Ultrasonic water level meter 5V RS485 output liquide Level Sensor KUS600 2
