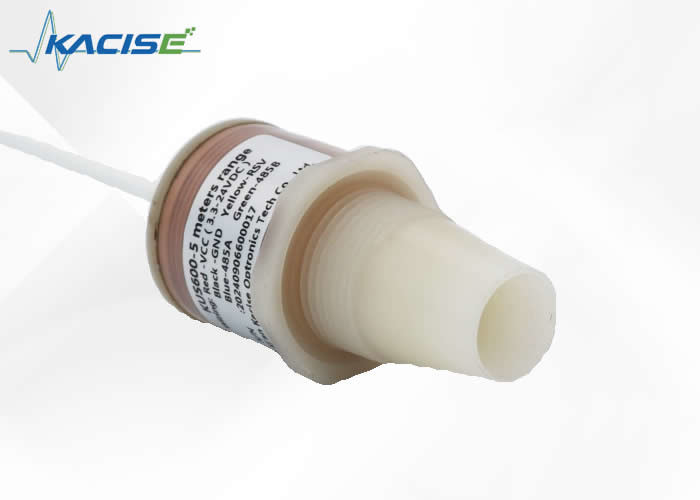

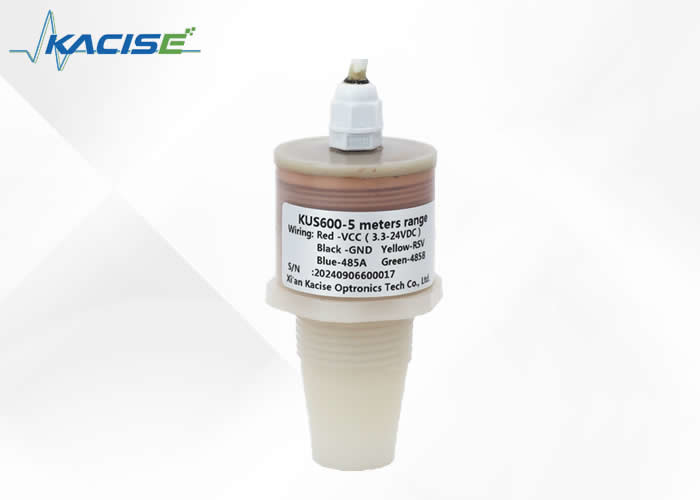

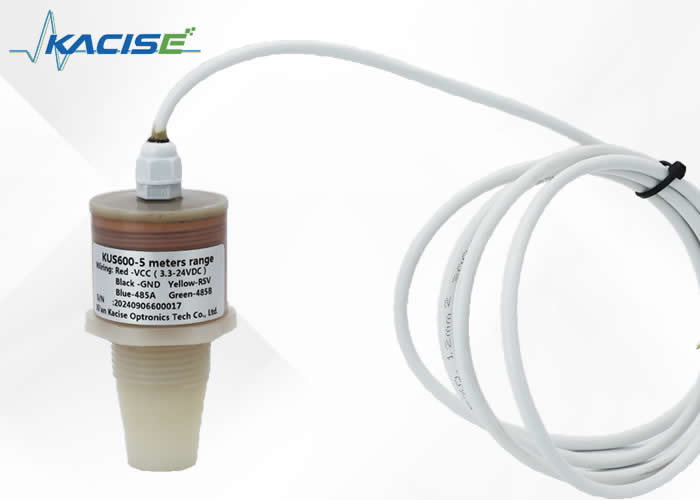

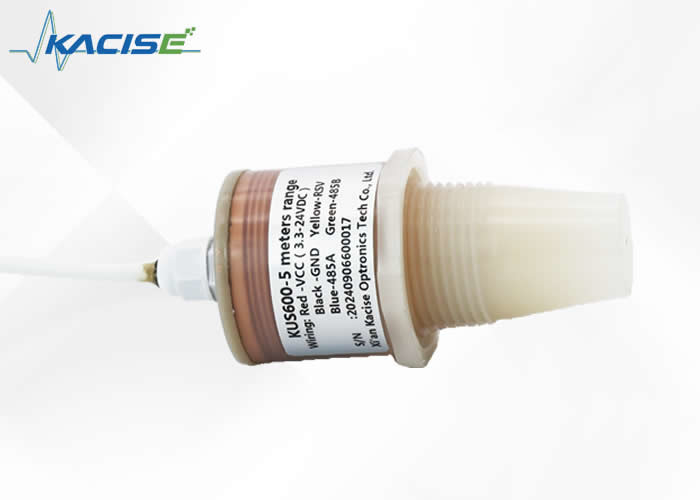

Name: low power 5m Ultrasonic water level Sensor KUS600 5V power intelligent water level meter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS600
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

low power 5m Ultrasonic water level Sensor KUS600 5V power intelligent water level meter

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

ce,ISO9001

Model Number:

KUS600

Document:

KUS600 series ultrasonic se....7.pdf

Request A Quote

low power 5m Ultrasonic water level Sensor KUS600 5V power intelligent water level meter

Product Details

Product:

Ultrasonic Distance Sensor

Detection Range:

300mm~5000mm

Transducer Frequency:

Approx. 220kHz

Output:

RS485 + 4-20mA/0-10V

Input Power:

3.3V~24V

IP Grade:

IP68

Material:

PVDF

Type:

Waterproof

Theory:

Ultrasonic Sensor

Warranty:

12 Months

Product Name:

PVDF 5m Ultrasonic Water Level Meter

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5work days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1000 Pieces per Week

30m Ultrasonic Transducer Sensor RS485 Output Liquid Level Sensor

Get Best Price

Video

10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth

Get Best Price

Video

RS485 output 15m wireless water level sensor

Get Best Price

5V Ultrasonic Transducer Sensor Non Contact Fluid Level Sensor

Get Best Price

86--17719566736

Contact Now

Product Description

Low Power 5m Ultrasonic Water Level Sensor KUS600

5V power intelligent water level meter with PVDF construction and IP68 waterproof rating.

Product Specifications

Attribute	Value
Product	Ultrasonic Distance Sensor
Detection Range	300mm~5000mm
Transducer frequency	approx. 220kHz
Output	RS485 + 4-20mA/0-10V
Input power	3.3V~24V
IP grade	IP68
Material	PVDF
Warranty	12 Months

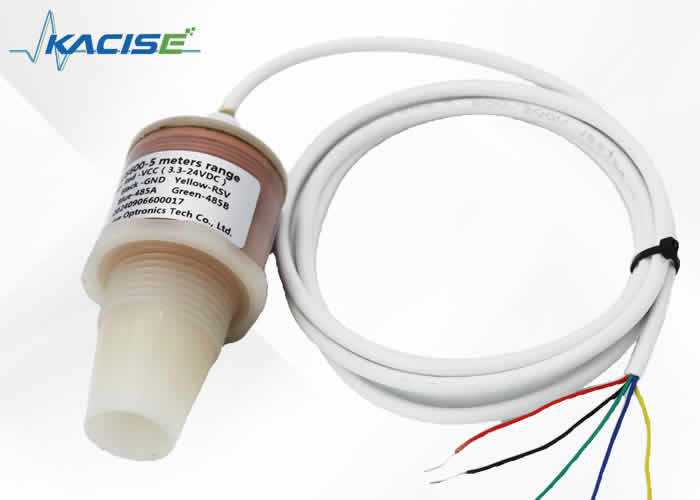

Electrical Interface and Signal Definitions

Line order	Colour	Definition
1	Red	Power is positive
2	Black	Power return ground
3	Yellow	Analog output, voltage output, current output switch output
4	Blue	RS485 A+ or uart TXD
5	Green	RS485 B- or uart RXD

Dimensions

Installation Conditions

If the sensor is installed in environments with temperatures below 0℃, appropriate protective measures should be implemented. When mounting the sensor in a through hole using steel nuts, it must be fixed at the middle of the housing thread.

Ordering Information

KUS	Model	Output	Range	Description
	630			Product series model
Custom made
		0-10V		Analog 0-10V output
		4-20mA		Analog 4-20mA output
		RS485		RS485 output MODBUS RTU protocol
KUS	550	RS485	2m
