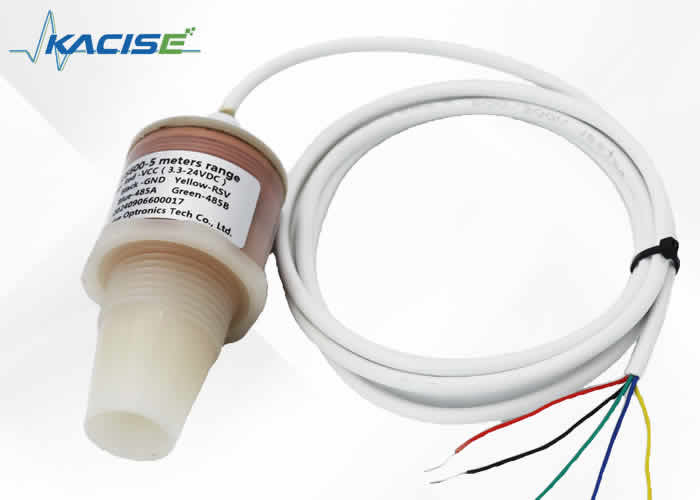

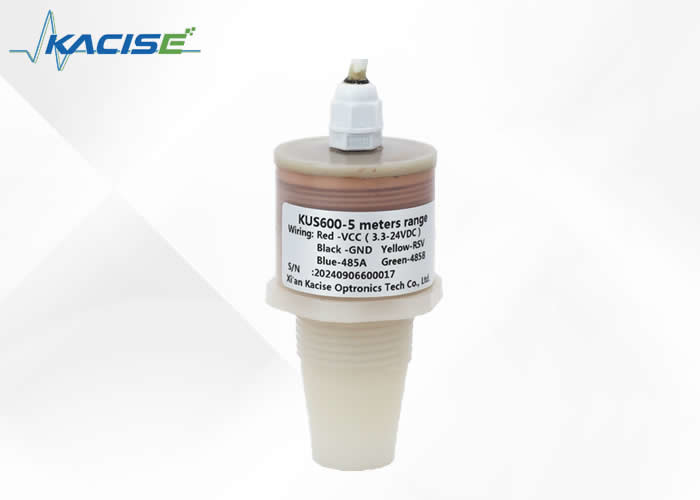

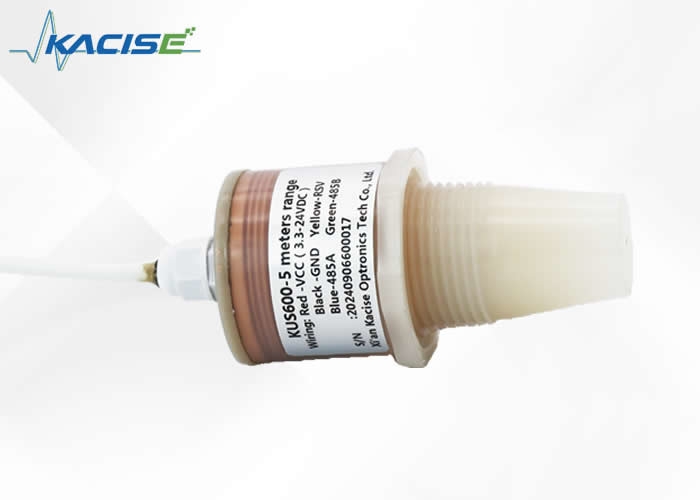

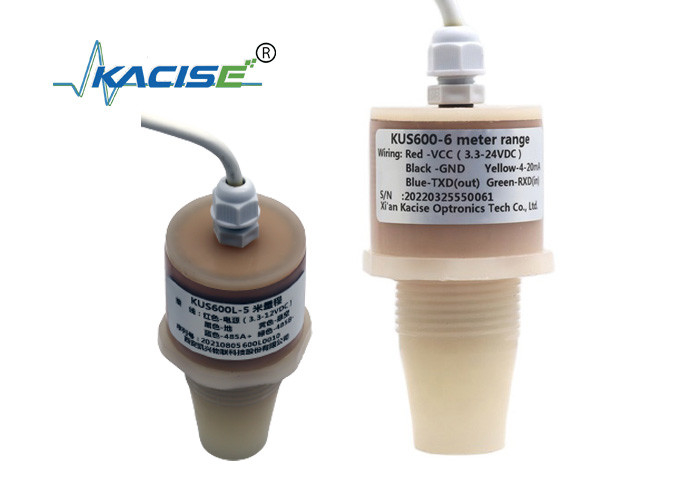

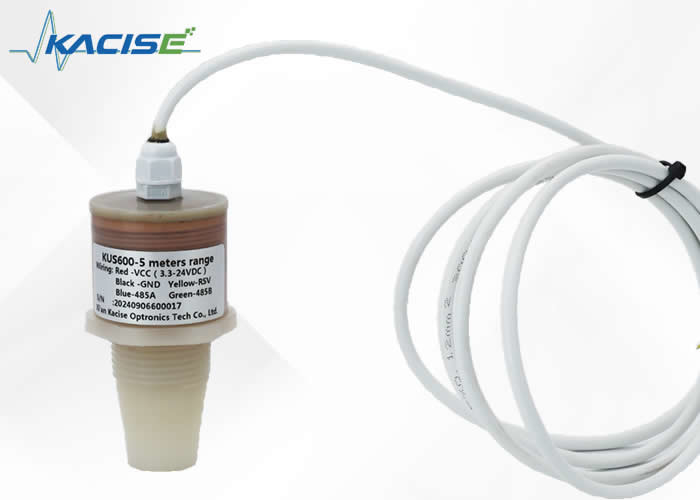

Name: RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS600
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank

KUS600 Water Level Meter

5V Power Water Level Meter

Septic Tank Ultrasonic Water Sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

ce,ISO9001

Model Number:

KUS600

Document:

KUS600 series ultrasonic se....7.pdf

Request A Quote

Product Details

Product:

Ultrasonic Distance Sensor

Detection Range:

300mm~5000mm

Transducer Frequency:

Approx. 220kHz

Output:

RS485 + 4-20mA/0-10V

Input Power:

3.3V~24V

IP Grade:

IP68

Material:

PVDF

Type:

Waterproof

Theory:

Ultrasonic Sensor

Warranty:

12 Months

Product Name:

PVDF 5m Ultrasonic Water Level Meter

Highlight:

KUS600 Water Level Meter

5V Power Water Level Meter

Septic Tank Ultrasonic Water Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5work days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1000 Pieces per Week

RS485 Output water level sensor Sewage Pool PTFE Low cost intelligent 20khz ultrasonic transducer

Get Best Price

Video

KUS650 Corrosion and acid and alkali resistance distance ultrasonic wireless level sensor iot with 4G/Lora/GPRS/NB

Get Best Price

Video

KUS550 apply to smart bin/trash car sensor low power and good performance

Get Best Price

KUS630A low cost waterproof ultrasonic water level sensor distance detector

Get Best Price

86--17719566736

Contact Now

Product Description

RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank

Product Specifications

Product	Ultrasonic Distance Sensor
Detection Range	300mm~5000mm
Transducer frequency	approx. 220kHz
Output	RS485 + 4-20mA/0-10V
Input power	3.3V~24V
IP grade	IP68
Material	PVDF
Type	Waterproof
Warranty	12 Months

Electronic Interface and Signal Definition

Standard Configuration

Cable color	Pin	Description	Note
Red	1	Power supply
Black	2	GND
Yellow	3	Analogue output	The 600B will work in mode 1 or 0 cannot work in power save mode, if the 4-20mA, 0-3.3V 0-5V analogue output used.
Blue	4	RS485A+	TTL-TXD for ttl output signal
Green	5	RS485B-	TTL-RXD for ttl output signal

Switch Output Configuration

Cable color	Pin	Description	Note
Red	1	Power supply
Black	2	GND
Yellow	3	Switch output	Load current 1A@60V
White	4	Switch output
Brown	5	RS485A+	TTL-TXD for ttl output signal
Green	6	RS485B-	TTL-RXD for ttl output signal

Technical Parameters

Model	KUS600
Measuring range	600...5000 mm (can reach 6 meters with 24V power supply)
Blind spot	600 mm
Supply voltage	3.3...24 VDC, ripple 10%SS
No-load supply current I0	≤ 20 mA active period and ≤0.3mA during sleep time
Output signal	0-10V, 0-3V, 0-5V /4-20mA/NPN/PNP/RS485 Analog output
Measurement accuracy	≤1% F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm

Working Conditions

Working temperature	-40...85℃ (233...358K)
Storage temperature	-40...85℃ (233...358K)

Other Specifications

Electrical connection	5-core cable (analog output), 6-core cable (switch output)
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS

Dimensions

Unit in the diagram is mm

Installation Conditions

If the sensor is installed at environment temperatures below 0℃, appropriate protective measures should be taken. When mounting the sensor in a through hole using steel nuts, it should be fixed at the middle of the housing thread.
