| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUS640 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25*16*19cm,1.2kg |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Range: | 1m~50m | Output: | 4~20mA/NPN/PNP/RS485 |
|---|---|---|---|
| Temperature Compensation: | -10℃～70℃ | Vibration Effects: | < ± 0.05％/g，500Hz In All Directions (according To IEC 68-2-64 |
| Measured Variable: | Liquid Level, Material Level | Ambient Temperature: | -25～+85℃ |
| Protection Class: | IP65 ，Complies With EN 60529 | Measurement Period: | ≤default 200ms, User Set |
| High Light: | Ultrasonic Transducer Sensor Non Invasive,KUS640 Water Level Measuring Sensor,Noncontact Water Level Measuring Sensor |
||

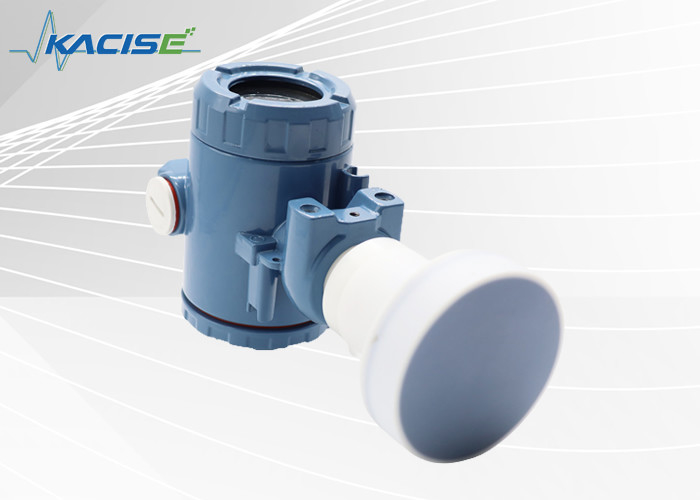

KUS640 ultrasonic level sensor with display for continuous liquids and solids level measurement
Product overview
KUS640 series intelligent split ultrasonic level gauge/level sensor is a level gauge product with on-site display and 4-20mA remote transmission 485 remote transmission launched by KACISE.
Ultrasonic level measurement with KACISE sensors enables continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials.
Product Features
Application
• Fire water system
• Sewage treatment
• Food industry
• Chemical, energy
• Long-distance heating
• City water supply
Technical parameter
| Enter | |
| Measured variable | liquid level, material level |
| Measuring range |
150mm-1000mm(Can be customized according to demand) |
| Output | |
| Comprehensive accuracy | RS485/4-20mA,±1%FS/ 0.15℃ |
| Temperature compensation | -10℃～70℃ |
| Vibration effects | < ± 0.05％/g,500Hz in all directions (according to IEC 68-2-64) |
| Rated conditions Environmental conditions | |
| ambient temperature | -25～+85℃ |
| Storage temperature | -40～+85℃ |
| Protection class | IP65 ,Complies with EN 60529 |
| Electromagnetic Compatibility | EN 61326/A2 Appendix A (2001 ) |
| Display and control | |
| show | SFTN liquid crystal, green backlight, 5-digit display. |
| limit value | Free settings |
| Parameter settings | Use 3 buttons |
| Unit | mm,The default unit is m. |
| Weight | About 1.35kg |
| Materials of non-wetted parts | |
| Joint | 1NPT,Stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements). |
| Electrical connections | Make waterproof connectors, air vent cable entries according to EN 175301-803A |
| Measurement period | ≤default 200ms, user set |
Order information
| KUS | Model | Output | Range | Describe | |
| 640 | Product series model | ||||
| Customize | |||||
| Independent display header without remote transmission | |||||
| 4-20mA | 4-20mA remote transmission | ||||
| RS485 | RS485 remote transmission (default) | ||||
| XXX mm | XXX mmIt means the maximum measurement distance is 1m-50m can be customized | ||||
| YYYmm | YYY is the length of the split order cable, the default is 1.2 meters | ||||
| KUS | 640 | 4-20mA | 3000mm | ||
