| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUS650 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 20*20*20cm,1.35kg |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |

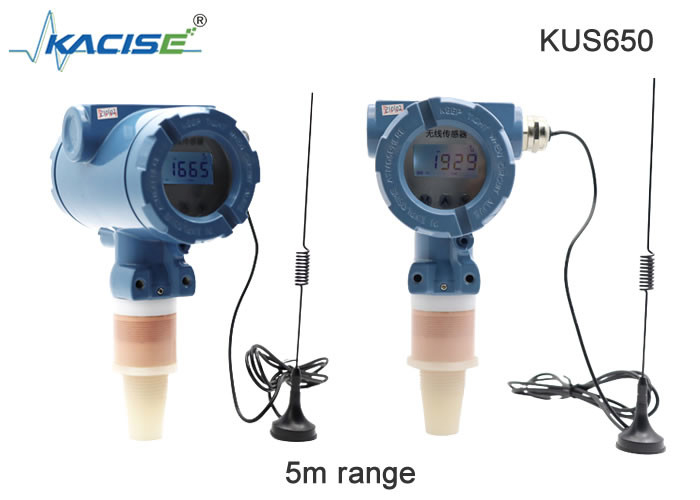

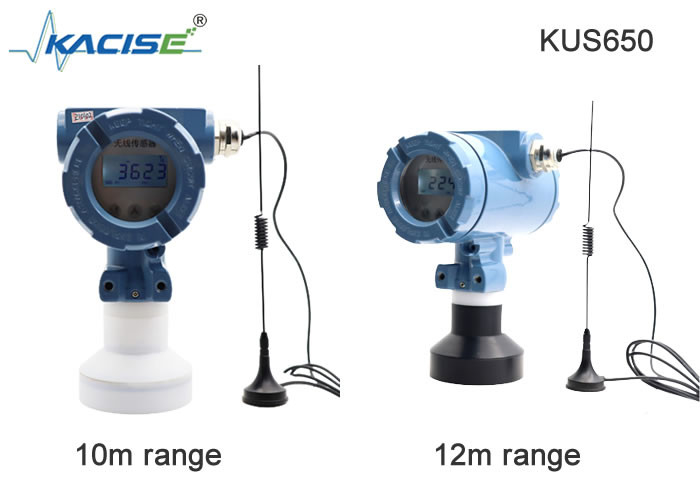

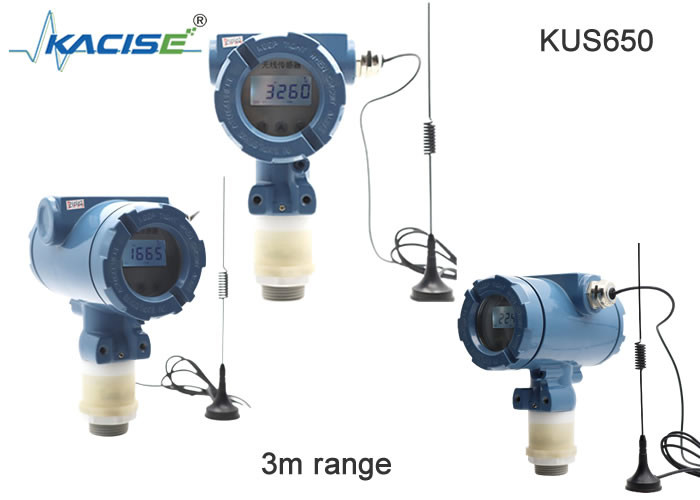

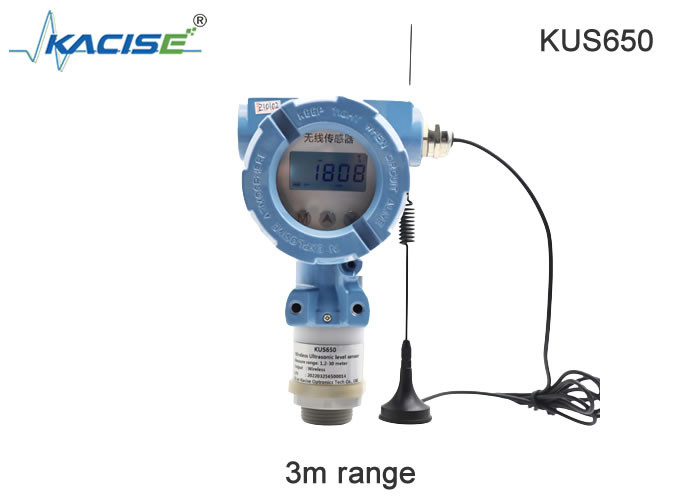

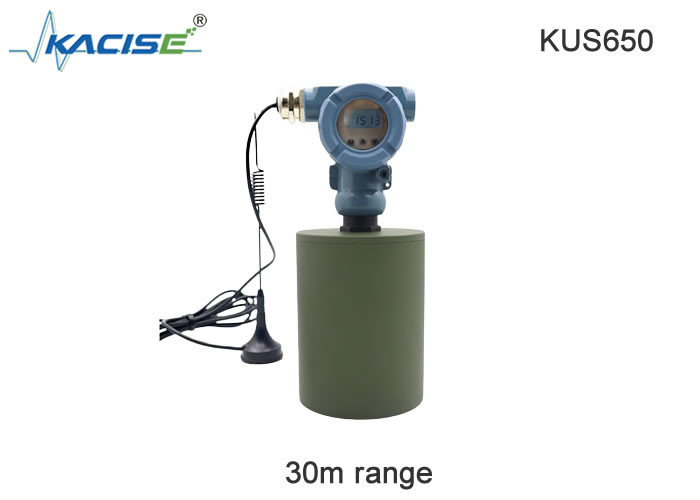

| Measured Variable Liquid: | Level, Material Level | Measurement Range: | Mix 30m,default 10m |
|---|---|---|---|
| Output: | 4G/Lora/GPRS/NB | Temperature Compensation: | -10℃～70℃ |
| Comprehensive Accuracy: | ±0.15%FS/ 0.15℃ | Measurement Period: | ≤ 100ms |
| Protection Class: | IP68 ， According To EN 60529 | Ambient Temperature: | -25～+85℃ |
| Storage Temperature: | -40～+85℃ | ||
| High Light: | Smart Ultrasonic Water Level Sensor,DC3.6V Ultrasonic Transducer Sensor,Water Level Ultrasonic Transducer Sensor 30m |
||
KUS650 Instruction Manual
1. Product overview
2. Product Features
| ◆Power | Two DC3.6V primary lithium sub-battery |
| ◆Wireless transmit power | <23 dBm |
| ◆Receive sensitivity | <-135 dBm |
| ◆Theoretical bandwidth | 200Kbs |
| ◆Support wireless transmission of alarm status to server, configurable server address and port | |
| ◆Using precise digital temperature compensation and nonlinear correction technology, wide temperature range and full scale precision compensation; | |
| ◆Multiple data type indication (percentage, output current display); | |
| ◆Special wide temperature LCD display (-30℃～80℃); | |
| ◆Provide a variety of power supply methods at the same time; | |
| ◆Vertical installation or axial installation, providing a variety of liquid level/level interfaces and interface materials; | |
| ◆LCD with parameterization and three setting buttons. | |
| ◆According to user needs and site conditions, the collection frequency and collection time interval can be set. | |
| ◆Battery power monitoring, when the power is insufficient, the meter screen will flash and report to the centralized management platform at the same time. | |
| ◆Water pressure/water level alarm threshold can be set and modified according to actual needs. | |
| ◆Water pressure/water level alarm threshold automatically alarms. | |
3. Application
KUS650 series is used to indicate and monitor the changes of water pressure/water level value at the installation site, and upload the real-time data to the centralized management platform through the built-in wireless transmission module, which is convenient for users to manage intelligently and centralizedly. It is mainly used in the following industries:
• Fire water system • City water supply
• Sewage treatment • Long-distance heating
• Food industry • Chemical, energy
4. Installation and maintenance
1. Installation
1) The instrument should be installed vertically and horizontally.
2) When using with other instruments, pay attention to the matching of the range.
3) Before installing the digital meter on the device, check whether the meter head is clean. During use, the pipeline should be kept clean.
2. Maintenance
1) The instrument is a high-precision instrument, and should be selected in a place with air circulation, easy observation, and easy maintenance and operation.
2) Although the digital sensor can exceed the range during use, long-term use will affect the accuracy of the measurement and may damage the meter. It is recommended that the user use the meter according to the range.
3) When the LCD screen of the wireless digital meter shows that the battery voltage is blank, please replace the battery to ensure the normal measurement.
Note: The rechargeable battery can only be charged, and the charging time is 3~4 hours.
5. Storage and transportation
1. The product should be stored at -40℃~+80℃, relative humidity not more than 90%, ventilated, dry and non-corrosive gas warehouse.
2. The product, the certificate of conformity and the instruction manual are packed in one package, and strong collision is strictly prohibited during transportation.
Note: The contents of the manual are subject to change without prior notice, please pay attention to keep in touch.
6.Application data
