| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUM2500A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25*7*10cm,0.6kg |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Working VoltageWorking Voltage: | DC 9V~36V | Working Temperature: | -30℃~+80℃ |
|---|---|---|---|
| Storage Temperature: | -40℃~+85℃ | Measure Range: | 3~100cm (4m Can Be Customized) |
| Maximum Power Consumption: | 0.36W/12VDC | Measurement Accuracy: | ±0.5%FS |
| Measurement Resolution: | 0.1mm | Inbreaking Protection: | IP67 |
| Peripheral Interface: | RS232 / RS485 / TTL | ||
| High Light: | Noncontact Clamp On Level Sensor,Ultrasonic Noncontact Level Sensor,KUM2500A Ultrasonic Transducer Sensor |
||

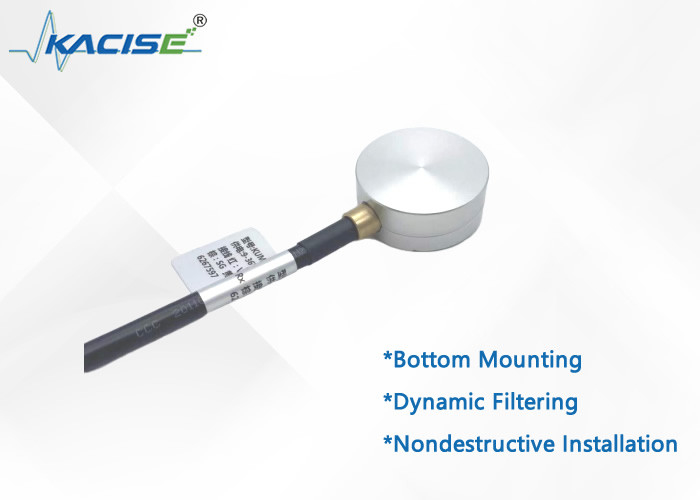

KUM2500A clamp on level sensor for water / fuel level measurement without drilling hole on tank
Introduction

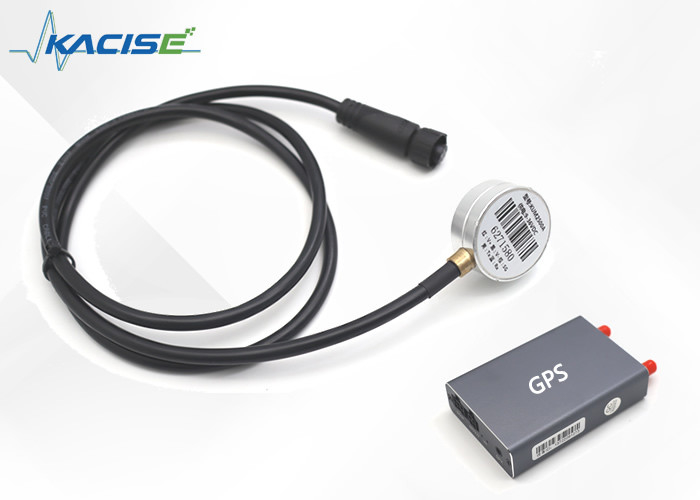

KUM2500A a sensor device that uses ultrasonic detection technology to measure the non-contact liquid level height of oil and liquid substances. It has a built-in anti-interference data processing model to intelligently filter and compensate for environmental interference. It is suitable for containers of various materials such as metal and plastic. It can be networked to realize network monitoring. manage.

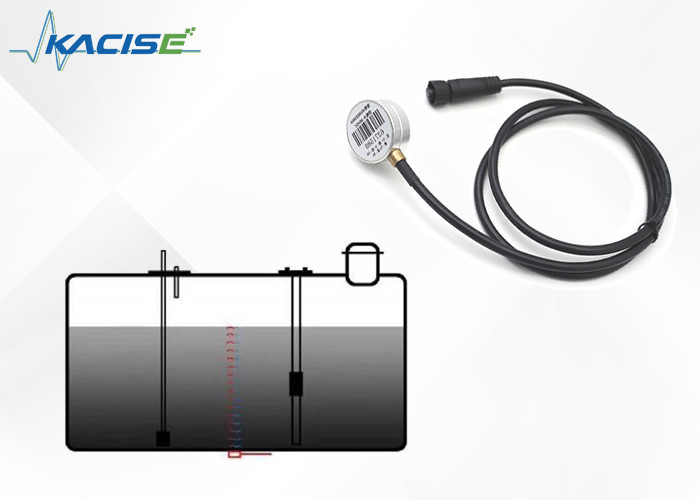

When measuring, the ultrasonic probe is installed directly below (bottom) the outer wall of the measured container, without opening holes, easy to install, and does not affect on-site production.
Working Principle
KUM2500A ultrasonic level sensor uses the ultrasonic echo ranging principle. At the same time, it is combined with digital signal processing technology, it overcomes the influence of the container wall, realizes high-precision non-contact measurement of the liquid level in the container, and can meet the requirements of industrial applications in application.
Application
Features
Technical Parameter
| No. | Item | Introduction |
| 1 | Working Voltage | DC 9V~36V. |
| 2 | Working Temperature | -30℃~+80℃ |
| 3 | Storage temperature | -40℃~+85℃. |
| 4 | Measure Range | 3~100cm (4m can be customized). |
| 5 | Maximum power consumption | 0.36W/12VDC |
| 6 | Measurement accuracy | ±0.5%FS |
| 7 | Measurement resolution | 0.1mm |
| 8 | Inbreaking Protection | IP67 |
| 9 | Peripheral interface | RS232 / RS485 / TTL |
| 10 | Tank Materials | conventional fuel tanks such as aluminium alloy/iron/plastic |
| 11 |
Communication port parameter |
default baud rate is 9600 (the baud rate can be configured), no parity bit, 8 data bits, 1 stop bit, and no flow control. |
