Name: KUS630C Ultrasonic Transducer Sensor For Car Alarm System Distance Measuring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS630C
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

KUS630C Ultrasonic Transducer Sensor For Car Alarm System Distance Measuring

Car Alarm System Ultrasonic Sensor

KUS630C Ultrasonic Transducer Sensor

Car Ultrasonic Distance Meter Sensor

Place of Origin:

China

Brand Name:

Kacise

Model Number:

KUS630C

Request A Quote

Product Details

Range:

15m

Output:

4~20mA/NPN/PNP/RS485/0-3V，0-5V

Power Supply:

3.3-24 V

Working Current:

≤45mA

Temperature Compensation:

Yes

Working Temperature:

-25…70℃(248...343K)

Protection Class:

IP68

Shell Material:

PVDF

Measurement Accuracy:

≤1 %

Highlight:

Car Alarm System Ultrasonic Sensor

KUS630C Ultrasonic Transducer Sensor

Car Ultrasonic Distance Meter Sensor

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

15*15*10cm，1.2kg

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

KUS-W80 Underwater Distance Sensor 200kHz Transducer Frequency and Low No-load Current for Underwater Distance Measurement

Get Best Price

KUS-W50 Underwater Distance Sensor Reverse Polarity Protection And 0.6m Blind Area For Seamless Underwater Monitoring

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

High Accuracy KWD400 360-Degree Scanning Sonar Power Consumption ≤12W

Get Best Price

86--17719566736

Contact Now

Product Description

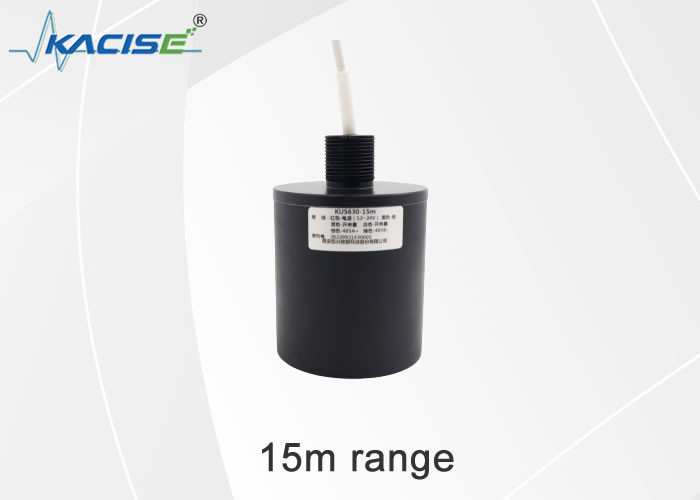

KUS630 Series Ultrasonic Level Meter

1.Features

The parking space monitoring system based on the Internet of Things automatically guides the vehicle to enter the empty parking space quickly, reduces the cost of management personnel, eliminates the trouble of finding a parking space, and saves time.
Low power consumption technology;
High dustproof level;
Corrosion resistance;
High resolution;
Can remove clutter and detect the distance information of the target well.

2. Dimensions
Unit in the diagram is mm.

KUS630C Ultrasonic Transducer Sensor For Car Alarm System Distance Measuring 0

3.Electrical connections and signal definitions
KUS630C Ultrasonic Transducer Sensor For Car Alarm System Distance Measuring 1

Line order	Colour	Definition
1	Red	Power is positive
2	Black	power return ground
3	Yellow	Analog output, voltage output, current output switch output
4	Blue	RS485 A+ or uart TXD
5	Green	RS485 B- or uart RXD

Cable color	Line order	Describe	Remark
red	1	powered by	3.3V-30V wide voltage input
black	2	GND
yellow	3	Switch output	Switch terminal, load capacity 1A 60V, supports up to two switch outputs with independent logic, the two terminals are the two contacts of the switch, do not distinguish between positive and negative poles, and can be connected at will.
White	4	Switch output
brown	4	RS485A+
green	5	RS485B-

4.Parameter description

Model:KUS630
Measuring range	0.8m... 15m
Blind spot	0 ... 0.6m(Unstable working area is within 0.6m, it is not recommended to work in this range); the minimum blind area version of 0.3m can be achieved, which needs to be customized.
Supply voltage	3.3 ... 24 V DC , ripple 10 %SS

Working current	≤ 45 mA (fastest measurement speed) Low-power version, sleep power consumption is less than 0.3mA, sending power consumption is 20mA (less than 2ms), and receiving power consumption is not more than 8mA (less than 150ms)
Output signal	1:Programmable analog output 0-10V. 2:RS485 output. 3:Uart serial output 4:4-20mA output 5:Switch output
Measurement accuracy	≤1 %
Temperature compensation	yes

working conditions

Working temperature	-25…70℃(248...343K)
Storage temperature	-40…85℃(233...358K)

other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP68
Shell material	PVDF

5. Ordering Information

KUS	Model	Output	Range	Describe
	630C	Support customization
	Custommade
		0-10V	Analog 0-10V output
		0-5V	Analog 0-5V output
		0-3V	Analog 0-3V output
		4-20mA	Analog 4-20mA output
		SW	Switch output
		Uart	Uart serial output MODBUS RTU protocol
		RS485	RS485 output MODBUS RTU protocol
			XXX mm	XXX mmmeans the maximum measurement distance (default15000mm)
KUS	630	RS485	15000mm

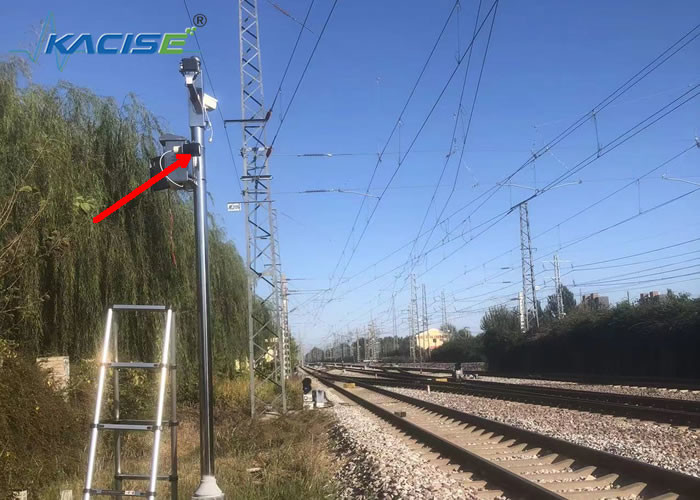

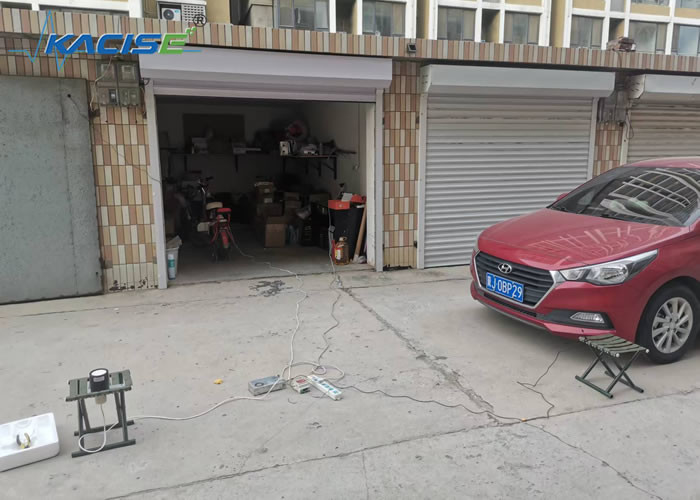

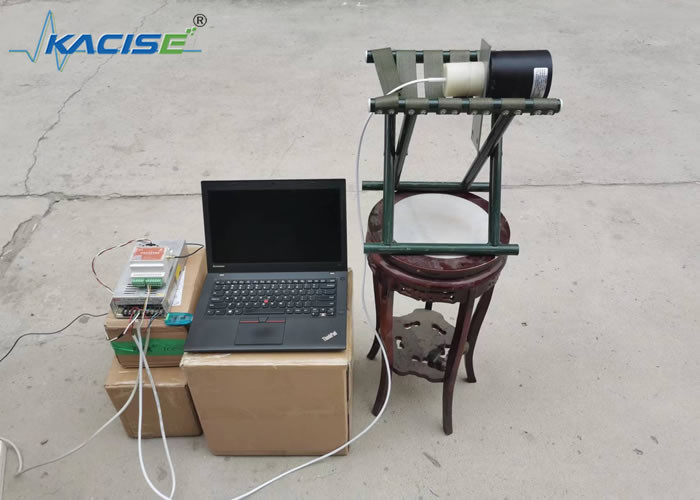

6.Application

KUS630C Ultrasonic Transducer Sensor For Car Alarm System Distance Measuring 2
