Name: KUS630C Waterproof Industrial Ultrasonic Parking Sensor Car Detection Parking Control System
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS630C
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

KUS630C Waterproof Industrial Ultrasonic Parking Sensor Car Detection Parking Control System

Car Detection Ultrasonic Parking Sensor

Waterproof Ultrasonic Parking Sensor

Parking Control System Ultrasonic Transducer Sensor

Place of Origin:

China

Brand Name:

Kacise

Model Number:

KUS630C

Request A Quote

Product Details

Range:

15m

Output:

4~20mA/NPN/PNP/RS485/0-3V，0-5V

Power Supply:

3.3-24 V

Working Current:

≤45mA

Temperature Compensation:

Yes

Working Temperature:

-25…70℃(248...343K)

Protection Class:

IP68

Shell Material:

PVDF

Measurement Accuracy:

≤1 %

Highlight:

Car Detection Ultrasonic Parking Sensor

Waterproof Ultrasonic Parking Sensor

Parking Control System Ultrasonic Transducer Sensor

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

15*15*10cm，1.2kg

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

10mW Resolution KWD300 Ultrasonic Noise Detection Sensor for Precise Detection

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

KWD520 M42＆M45 Hydrophone

Get Best Price

KWD510 M26 Hydrophone

Get Best Price

86--17719566736

Contact Now

Product Description

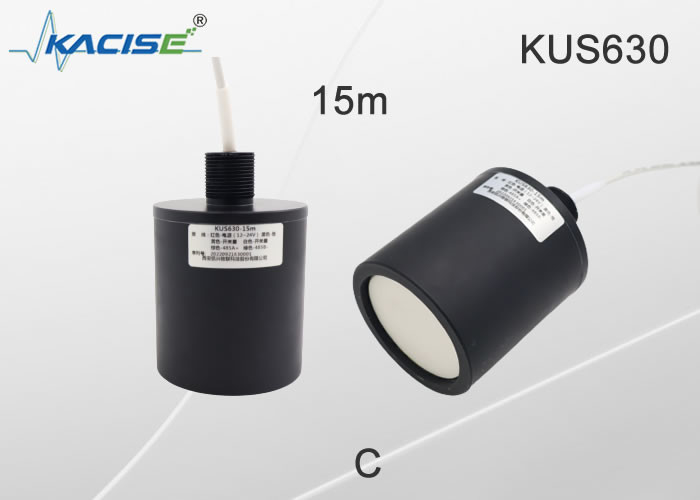

KUS630 Series Ultrasonic Level Meter

1.Features

Various output forms: programmable relay output, high-precision 4-20mA current output, Rs485 digital communication output.
Good directionality, strong penetrating ability, easy to obtain concentrated sound energy and long transmission distance.

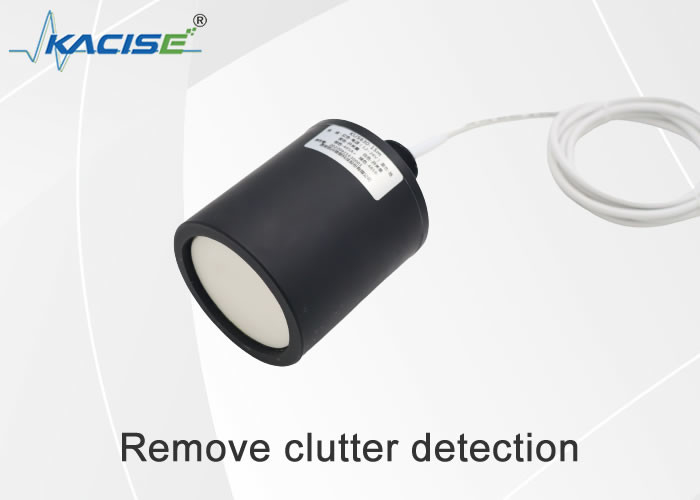

With the suppression function of interference echo to ensure the authenticity of measurement data.
Connection process: thread Distance measurement accuracy: 0.5%-1.0% Pressure: normal pressure Application: solid, liquid.

2. Dimensions
Unit in the diagram is mm.

KUS630C Waterproof Industrial Ultrasonic Parking Sensor Car Detection Parking Control System 0

3.Electrical connections and signal definitions
KUS630C Waterproof Industrial Ultrasonic Parking Sensor Car Detection Parking Control System 1

Line order	Colour	Definition
1	Red	Power is positive
2	Black	power return ground
3	Yellow	Analog output, voltage output, current output switch output
4	Blue	RS485 A+ or uart TXD
5	Green	RS485 B- or uart RXD

Cable color	Line order	Describe	Remark
red	1	powered by	3.3V-30V wide voltage input
black	2	GND
yellow	3	Switch output	Switch terminal, load capacity 1A 60V, supports up to two switch outputs with independent logic, the two terminals are the two contacts of the switch, do not distinguish between positive and negative poles, and can be connected at will.
White	4	Switch output
brown	4	RS485A+
green	5	RS485B-

4.Parameter description

Model:KUS630

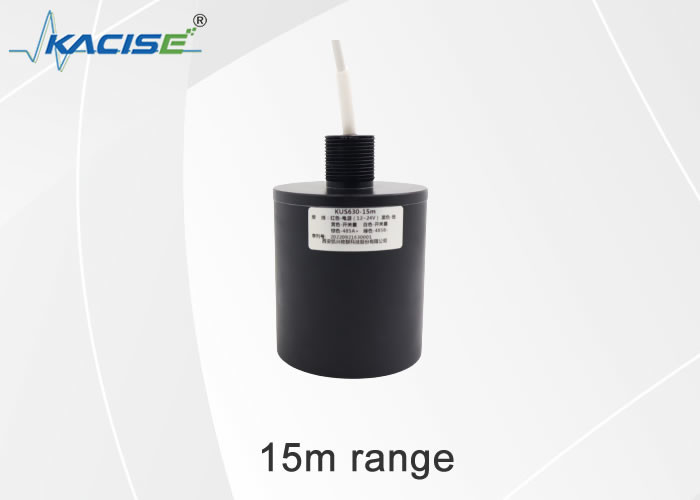

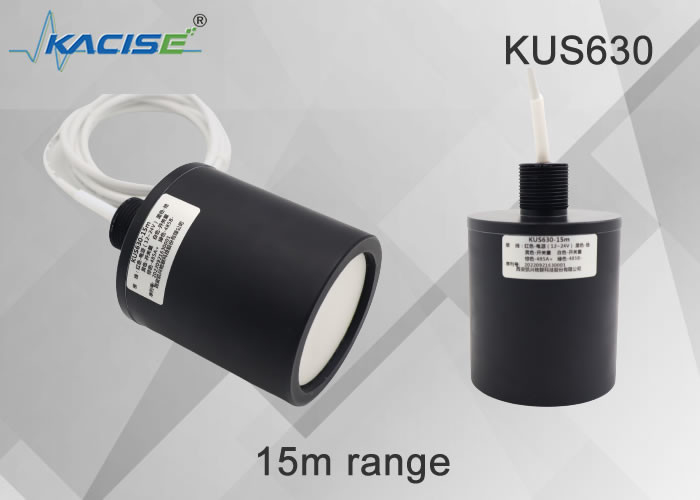

Measuring range	0.8m... 15m
Blind spot	0 ... 0.6m(Unstable working area is within 0.6m, it is not recommended to work in this range); the minimum blind area version of 0.3m can be achieved, which needs to be customized.
Supply voltage	3.3 ... 24 V DC , ripple 10 %SS

Working current	≤ 45 mA (fastest measurement speed) Low-power version, sleep power consumption is less than 0.3mA, sending power consumption is 20mA (less than 2ms), and receiving power consumption is not more than 8mA (less than 150ms)
Output signal	1:Programmable analog output 0-10V. 2:RS485 output. 3:Uart serial output 4:4-20mA output 5:Switch output
Measurement accuracy	≤1 %
Temperature compensation	yes

working conditions

Working temperature	-25…70℃(248...343K)
Storage temperature	-40…85℃(233...358K)

other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP68
Shell material	PVDF

5. Ordering Information

KUS	Model	Output	Range	Describe
	630C	Support customization
	Custommade
		0-10V	Analog 0-10V output
		0-5V	Analog 0-5V output
		0-3V	Analog 0-3V output
		4-20mA	Analog 4-20mA output
		SW	Switch output
		Uart	Uart serial output MODBUS RTU protocol
		RS485	RS485 output MODBUS RTU protocol
			XXX mm	XXX mmmeans the maximum measurement distance (default15000mm)
KUS	630	RS485	15000mm

6.Application

KUS630C Waterproof Industrial Ultrasonic Parking Sensor Car Detection Parking Control System 2
