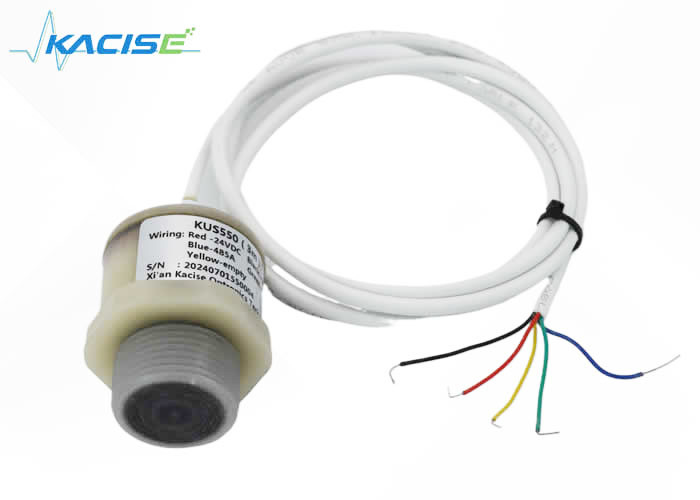

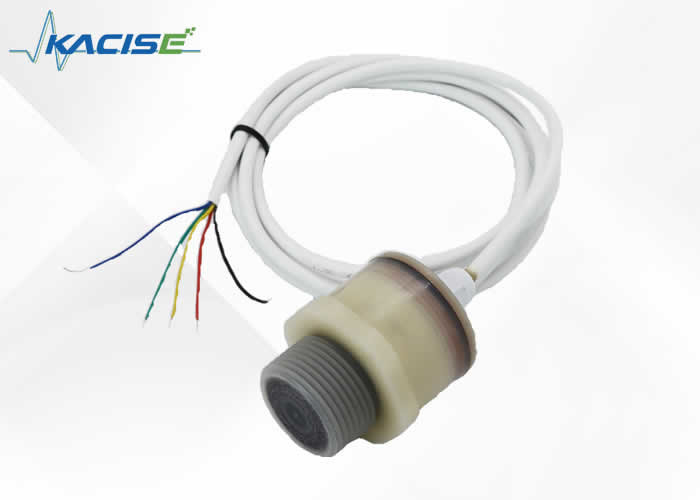

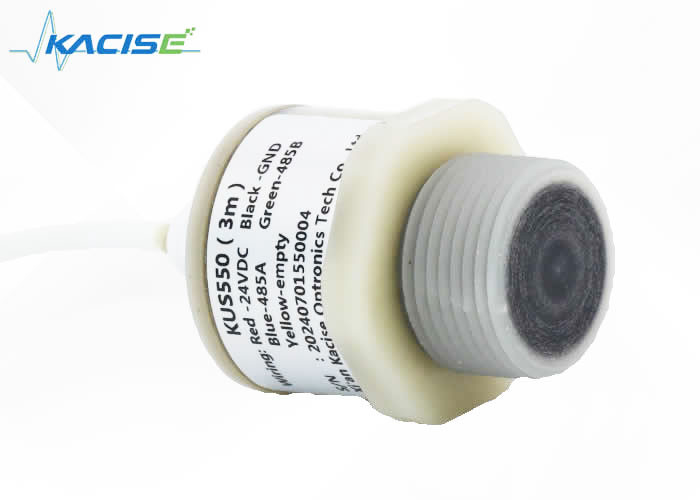

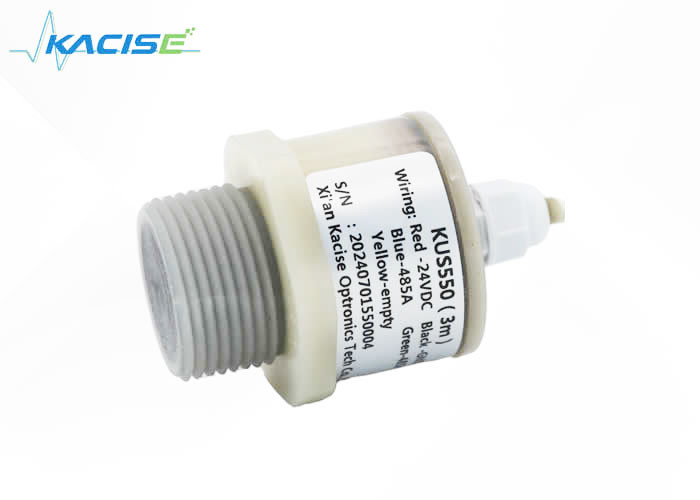

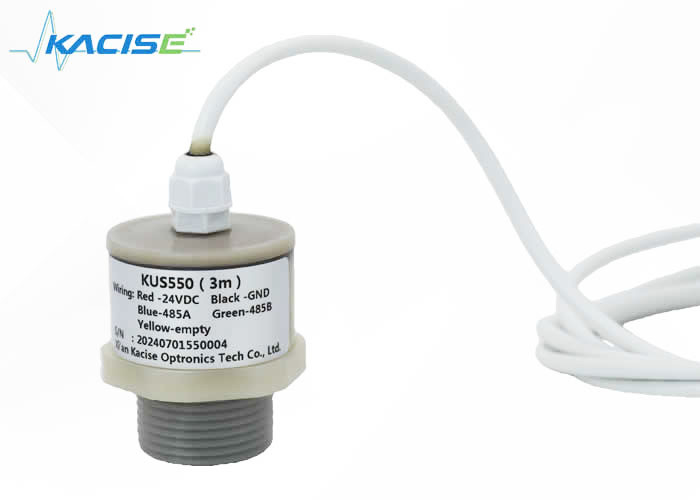

Name: 3 Meter 5V RS485 PVDF Water Level Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

3 Meter 5V RS485 PVDF Water Level Sensor

3 Meter Ultrasonic Transducer Sensor

Ultrasonic Transducer Sensor 5V RS485

RS485 PTFE Water Level Sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUS550

Document:

KUS550 series ultrasonic se....8.pdf

Request A Quote

Product Details

Response Time:

＜50ms

Beam Angle:

7°±2

Temp. Compensation:

Inside/outside/fix Temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, Etc, Customizable)

IP Grade:

IP68

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

Usage:

Sewage Pool Swimming Pool

Highlight:

3 Meter Ultrasonic Transducer Sensor

Ultrasonic Transducer Sensor 5V RS485

RS485 PTFE Water Level Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

10000 Pieces per month

KUS-W80 Underwater Distance Sensor 200kHz Transducer Frequency and Low No-load Current for Underwater Distance Measurement

Get Best Price

KUS-W50 Underwater Distance Sensor Reverse Polarity Protection And 0.6m Blind Area For Seamless Underwater Monitoring

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

High Accuracy KWD400 360-Degree Scanning Sonar Power Consumption ≤12W

Get Best Price

86--17719566736

Contact Now

Product Description

3 Meter 5V RS485 PVDF Water Level Sensor

Product introduction

The 3 - Meter 5V RS485 PVDF Water Level Sensor is an advanced and highly reliable device designed for accurate water level measurement. With a measurement range of up to 3 meters, it can handle a wide variety of water - related applications.

Powered by 5V, this sensor offers stable and efficient operation. The RS485 communication interface is a standout feature, enabling seamless integration with multiple systems and allowing for long - distance data transmission. This makes it perfect for large - scale water monitoring projects.

Constructed with PVDF material, the sensor exhibits excellent chemical resistance and durability. It can withstand harsh water conditions, including those with varying chemical compositions. Whether used in industrial water tanks, environmental monitoring of water bodies like rivers and lakes, or in water treatment facilities, this sensor provides precise and continuous water level data, facilitating better decision - making and ensuring the smooth running of water - related operations.

Product features

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

Application

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation

Parameter

General specifications

Model: KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B；
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP68
shell material	PVC /PVDF/PTFE/ABS

Dimensions

Unit in the diagram is mm.

3 Meter 5V RS485 PVDF Water Level Sensor 0

Wiring

Analogue output type wiring diagram

3 Meter 5V RS485 PVDF Water Level Sensor 1

Switch output type wiring diagram

3 Meter 5V RS485 PVDF Water Level Sensor 2
