KCS530 Infrared CO2 Module



















1. Overview

KCS530 is a gas detection module based on the principle of NDIR infrared absorption, which is suitable for detecting the concentration of carbon dioxide in a gaseous environment at room temperature.

KCS530 adopts a patented optical cavity, imported light source and dual-channel detector to realize the reference compensation of dual optical paths in space. KCS530 has good selectivity, no oxygen dependence and long life.

KCS530 has UART, 485 output and 4-20mA current output (or analog voltage output) for easy application selection; The KCS530 provides zero point calibration, sensitivity calibration and clean air calibration commands, and provides a manually calibrated MCDL pin for customers to perform relative zero calibration of the sensor module using outdoor free-flowing clean air.

KCS530 adopts convection diffusion ventilation mode, which has a fast diffusion speed. KCS530 is designed for CO2 concentration measurement in high humidity environments such as mushroom houses, incubation rooms, and agricultural greenhouses. It can also be widely used in HVAC fresh air control, indoor air quality monitoring, agricultural and animal husbandry production process monitoring, can be installed in intelligent buildings, ventilation systems, robots, automobiles and other applications, can also be applied to other narrow space air quality monitoring.



2. Technical Parameters







parameter		symbol	minimum	Typical values	maximum	unit
Storage temperature		Tstg	-20	-	80	°C
Operating temperature		TA	-20		60	°C
Operating humidity		HA	0		90	% RH
Work pressure		PA	0.8		1.2	atm
Supply voltage		Vs	11	12	30	V
Maximum operating current		Imax	100	120	150	mA
Range (Customizable supported.) Can be up to 100% vol)		Ra	0	5000	500000	ppm
Resolution		Resolution		1000		ppm
Measurement accuracy		Accuracy	-	± 20ppm or ±5% true value	± 300ppm± 5% true value	ppm
T90		diffusion	-	20	40	second
Repeatability	Zero			<±50		ppm
	50% FS	-	<±5%	<±5% of the measured value	-
Life Span			3	10	15	year







3. Structural Dimension Drawing

Unit: mm

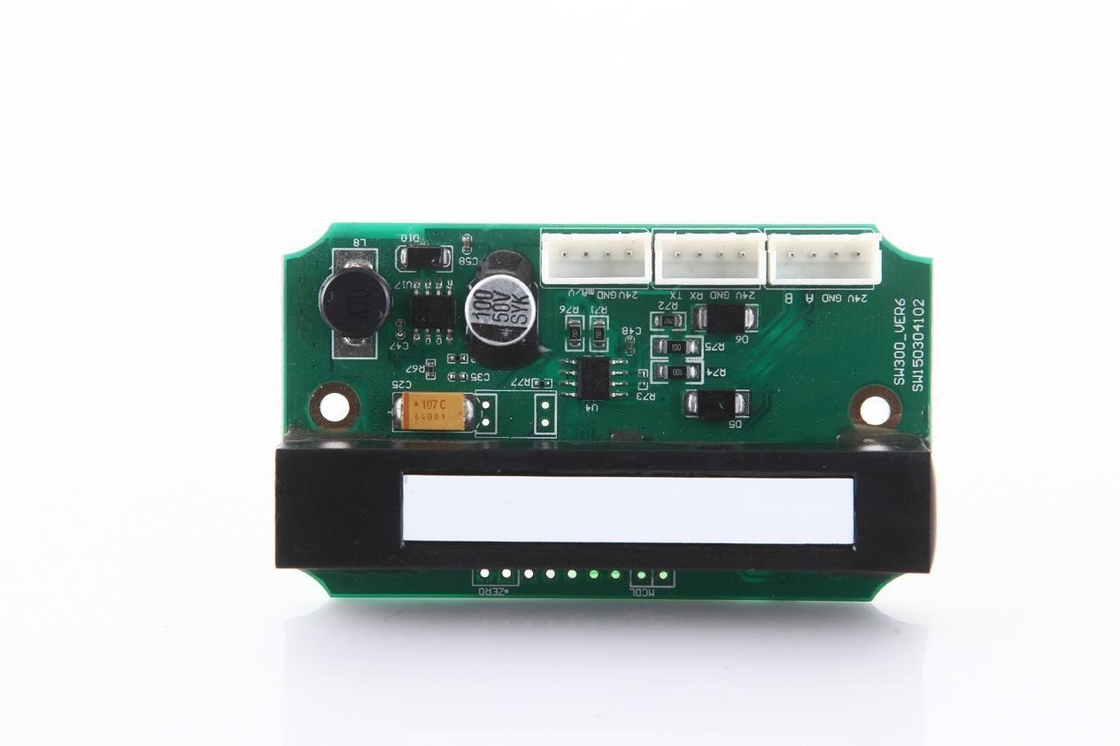

Diffusion

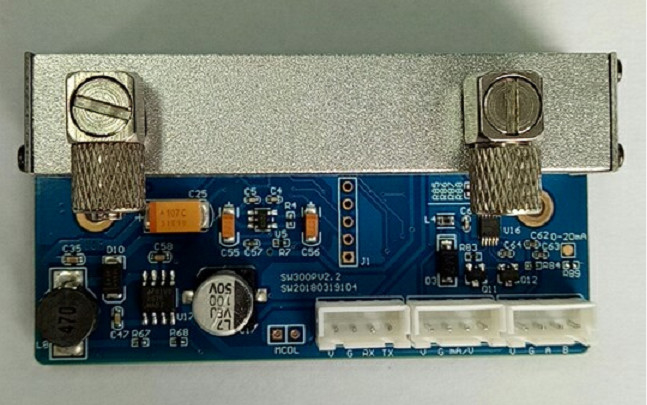

Pump-suction type























4.Signal Output

Signal output: analog current/voltage output, UART output, 485 output, users can need to customize.

Note: When the module is cold started, the concentration value signal obtained within two minutes after power-on is not used as the measurement basis.

4.1.Analog current/voltage output

Analog current output range (4mA~20mA), 4mA corresponds to 0ppm, 20mA corresponds to gas concentration at full scale. Customers can also customize.

Analog voltage output range (0.4V~2.0V), 0.4V corresponds to 0ppm, and 2.0V corresponds to the gas concentration at full scale. Customers can also customize.

4.2.UART communication protocol

Baud rate: 9600bps, 8 data bits, 1 stop bit, no check bit;

The data is ASCII output, the number of data bytes per frame is not fixed, starting with 32 and ending with rn

It is divided into proactive upload and Q&A2way.

4.2.1 The sensor actively uploads the concentration value, and the data is output in the form of ASCII code, the format is as follows:



32

32

x

x

x

x

x

32

p

p

m

r

n

where 32 is the ASCII code for a space, and the output ends with a newline character

For example: Output 12345 ppm format as follows:

		1	2	3	4	5		p	p	m
0x20	0x20	0x31	0x32	0x33	0x34	0x35	0x20	0x70	0x70	0x6d

4.2.2 Q&A (Choose one method for automatic upload and Q&A output, the default is active upload)

Send decimal: 235237363521

return

32

32

x

x

x

x

x

32

p

p

m

r

n

where 32 is the ASCII code for a space, and the output ends with a newline character

4.3.MODBUS communication protocol

THREE PROTOCOLS ARE AVAILABLE: MODBUS RTU, MODBUS ASCII OR MODBUS CUSTOMIZATION.

4.3.1 MODBUS custom protocol

Host send protocol format

A protocol consists of fixed-format packets. The size of the packet varies depending on the content of the packet.

byte	content
1	Address of the communication unit (sensor address)
2	STX Character (0x23)
3	Message code 0x52 (read) or 0x53 (write).
4	Data length (packet length minus 6).
5	Data first
6	Second bit of data
7... ....n-2	Other data
n-1	0x21
n	8-digit check digit XOR

The address of the first byte communication unit of the packet: This refers to the address of the lower computer unit when the host communicates with the lower computer. The second byte of the packet is STX character, which is fixed. The third byte of the packet indicates whether the packet is a read command or a write command. 0x52 is to read the command 0x53 write the command. The fourth byte of a packet is the bit length describing the data contained in the entire message, which is equal to the packet size minus 6. Data is transferred sequentially from low byte to high byte. Text is routed from left to right. Once all data has been transferred, the end of the data will be indicated by 1 byte 0x21. The last byte of the protocol is the checksum to verify the correctness of the transmitted data.

The device returns the protocol format

A protocol consists of fixed-format packets. The size of the packet varies depending on the content of the packet.

byte	content
1	06 (ACK, indicating that the host's command was received correctly).
2	Address of the communication unit (sensor address)
3	STX Character (0x23)
4	Message code 0x52 (read) or 0x53 (write).
5	(packet length minus 7).
6	Data first
7	Second bit of data
8... ....n-2	Other data
n-1	0x21
n	8-digit check digit XOR

Address of the communication unit: This refers to the address of the lower computer unit when the host communicates with the lower computer. The second byte of the packet is STX character, which is fixed. The third byte of the packet indicates whether the packet is a read command or a write command. 0x52 is to read the command 0x53 write the command. The fourth byte of a packet is the bit length describing the data contained in the entire message, which is equal to the packet size minus 6. Data is transferred sequentially from low byte to high byte. Text is routed from left to right. Once all data has been transferred, the end of the data will be indicated by 1 byte 0x21. The last byte of the protocol is the checksum to verify the correctness of the transmitted data.

Command type

(1) Read the sensor concentration value: such as reading the current No. 32 (20H) sensor data

The host sends the command to the sensor: 20235201372146

20 23 52 01 37 21 ?? (decimal 16).

20: Sensor number

23: STX fixed

52: Read

01: Data length, indicating that there is 1 bit of data after it

37: Read sensor data

21: End

??: CheckSum check character

CheckSum= 20⊕23⊕52⊕01⊕37⊕21=46H, so?? =46H

The device will return the following data: 062023520537000003E821??

06 20 23 52 05 37 00 00 03 E8 21 ?? (decimal 16).

06: ACK is correct

20: Returns the sensor address

23: STX (0x23)

52: Service Type The default return operation type is (0x52) read operation

05: Data Length The length of the data is 5 bytes

37: Command class

00 00 03 E8: The current CO2 concentration value, in PPM, is the concentration value expressed in 4 bytes, with the high concentration byte on the left and the low concentration byte on the right, depending on the concentration of the sensor

21: Ending character

?? : CheckSum check character

CheckSum= 20⊕23⊕52⊕05⊕37⊕00⊕00⊕ 03⊕E8⊕21=?? XOR, excluding the first byte 06

(2) Set the sensor address:

For example, read the current sensor address number 32 (20H) to number 34 (22H).

The host sends the command to the sensor: 2023530231222160

20 23 53 02 31 22 21 ?? (decimal 16).

20: Current sensor number

23: STX fixed

53: Write

02: Data length, indicating that there are two digits of data after it

31: Write address command

22: The current sensor address is changed to number 34

21: End

??: CheckSum check character

CheckSum= 20⊕23⊕53⊕02⊕31⊕22⊕21=60H, so ?? =60H

The device returns the following data: 062023530231222160

06 20 23 53 02 3122 21 ??

06: ACK is correct

20: Original sensor address

23: STX (0x23)

53: Service Type The default return operation type is (0x520) read operation

02: Data Length Data length 2 bytes

31: Class command class

22: The current sensor address after changing the address

21: Ending character

??: CheckSum check character

CheckSum= 20⊕23⊕53⊕02⊕31⊕22⊕21=60H, so ?? =60H

(3) About setting the initial address of the sensor:

Short MCDL, zero calibration within 8 seconds, more than 10 seconds for the initial address of the sensor The default is number 32. The factory address of each sensor is set to 32 (20H), and when the user modifies the sensor address, the corresponding forehead button must be continuously held down for more than 10 seconds to restore the address factory setting.

4.3.2 MODBUS RTU Protocol

Host send protocol format

A protocol consists of fixed-format packets. The size of the packet varies depending on the content of the packet.

byte	content
1	Address of the communication unit (sensor address)
2	Function code
3	First place in the data area
4	Second digit in the data area
5	Third place in the data area
6	Fourth place in the data area
...... .	Other data
n-1	CRC low
n	CRC high



Address of the communication unit: This refers to the address of the lower computer unit when the host communicates with the lower computer. The second byte of the packet indicates whether the packet is a read command or a write command. 03 indicates that the message is a read command, and 06 indicates that the message is a write command. CRC is used for verification to verify the correctness of transmitted data. Data is transferred sequentially from low byte to high byte. Text is routed from left to right. After all data is transmitted, the CRC check low and high bits will end.

The device returns the protocol format

A protocol consists of fixed-format packets. The size of the packet varies depending on the content of the packet.

Command type

(1) Read the sensor concentration value: such as reading the current sensor data No. 32 (20H).

The host sends a command to the sensor:

20 03 00 00 00 02 C2 BA

20: Current sensor address

03: Read the sensor concentration

00 00 00 02: Data area content

00 00 is address 00 02 is quantity

C2: CRC high

BA: CRC low

The basic principle of cyclic redundancy check code (CRC) is: after the K bit information code, then splicing the R bit check code, the entire coding length is N bits, therefore, this code is also called (N, K code. For a given ( N,K ) code , it can be shown that there exists a polynomial G(x) with a highest power of N-K = R. A checksum of K-bit information can be generated from G(x), and G(x) is called the generative polynomial of this CRC code. The specific generation process of the check code is: assuming that the information to be sent is represented by the polynomial C(X), shift C(x) to the left by R bits (which can be expressed as C(x)*2R), and so on To the right of C(x), the R bit will be free, which is the position of the check digit. The remainder obtained by dividing C(x)*2R to generate the polynomial G(x) is the check digit.

The device returns the following data:

If the total range is within 65536 ppm:

20 03 04 00 20 0B E8 CD 85 (decimal).

If the total range is greater than 65536 ppm:

20 03 06 00 20 00 00 0B E8 33 9D (decimal).

20: Current sensor address

03: Read the sensor concentration

04/06: Data area length (The length of the returned data area is related to the total range ordered by the customer, if the maximum range ordered by the customer is within 65536 ppm, then the returned data area length is 04 (100ppm return number: 20 03 04 00 20 00 64 CB 10 ), if the maximum range is greater than 65536 ppm then the returned data area length is 06 (100 ppm return number: 20 03 06 00 20 00 00 00 64 35 08)

The red part is the data bit, and the blue part is the data area length

00 20 : Displays the current sensor address 0x20

0B E8: Displays the sensor gas concentration in PPM, the specific value depends on the address and concentration of the sensor

The above data are all decimal numbers, and it is necessary to convert them to base 10 numbers before calculating the concentration value

For example:

If the total range is within 65536 ppm:

0B is decimal 11; The decimal of E8 is 232, then the concentration value is: 11*256+232=3048 (ppm value of decimal).

If the total range is greater than 65536 ppm:

00 is 0 for decimal; 0B is 11 for decimal; The decimal of E8 is 232, then the concentration value is: 0*65536+11*256+232=3048 (ppm value in decimal).

CD: CRC high

85: CRC low

CRC check values refer to the same as above

(2) Set the sensor address: For example, change the sensor address of 32 (20H) to 01

The host sends a command to the sensor:

20 06 00 00 00 01 4E BB (decimal).

20: Current sensor address

06: Function code (set sensor address).

00 00 00 01: Data area (modified sensor new address 00 01, i.e. 01).

4E: CRC high

BB: CRC low

The CRC check value is the same as above

The device returns the following data:

20 06 00 00 00 01 4E BB (decimal).

Same as input

After changing the address, the new reading command only needs to change the first address to the current address after the modification and perform CRC verification to obtain a new check bit:

01 03 00 00 00 02 C4 0B (decimal).

The device returns the following data:

If the total range is within 65536 ppm:

01 03 04 00 01 0B E8 AC 8D (decimal).

If the total range is greater than 65536 ppm:

01 03 06 00 01 00 00 0B E8 1B CB (decimal).

The new set sensor address command is:

01 06 00 00 00 XX xx xx

XX: is the address that needs to be modified again

xx xx: New check digit

*This command is the serial port debugging assistant command modbus poll under the data display window, double-click the address display table to set a new address by modifying value

(3) About setting the initial address of the sensor

Short MCDL, zero calibration within 8 seconds, more than 10 seconds for the initial address of the sensor The default is number 32. The factory address of each sensor is set to 32 (20H), and when the user modifies the sensor address, the address must be restored by holding the corresponding forehead button continuously for more than 10 seconds.

4.3.3 MODBUS ASCII LICENSE

Host send protocol format

A protocol consists of fixed-format packets. The size of the packet varies depending on the content of the packet.

byte	content
1	0x3a
2	Address of the communication unit (high sensor address)
3	Address of the communication unit (low sensor address)
4	Function code high
5	Function code low
6	First place in the data area
7	Second digit in the data area
8	Third place in the data area
9	Fourth place in the data area
10	Fifth place in the data area
11	Sixth place in the data area
12	Seventh place in the data area
13	Eighth digit in the data area
.......	Other data
n-3	LRC high
n-2	LRC low
n-1	0x0d
n	0x0a



Address of the communication unit: This refers to the address of the lower computer unit when the host communicates with the lower computer. The first byte of the packet is 0x3a the last two bytes are 0x0d 0x0a and fixed. The fourth and fifth byte of a packet indicates whether the packet is a read command or a write command. 03 indicates that the message is a read command, and 06 indicates that the message is a write command. LRC is used for verification to verify the correctness of the transmitted data. Data is transferred sequentially from low byte to high byte. Text is routed from left to right. When all data is transferred, the data is 0x0d by 2 cut-off bytes and 0x0a indicates the end of the data.

The device returns the protocol format

A protocol consists of fixed-format packets. The size of the packet varies depending on the content of the packet. The return format is the same as the sending format.

Command type

(1) Read the sensor concentration value: such as reading the current 20H sensor data

The address under the 03 function code under the Modbus poll should be set to 3 for 0x0003, and the quantity should be set to 1 .

The host sends the command to the sensor:

3A 32 30 30 33 30 30 30 33 30 30 30 31 44 39 0D 0A (decimal) is: 200300030001D9

3a: Fixed start bit

32 30 is 20: sensor number

30 33 is 03: read sensor concentration

30 30 30 33 30 30 30 31: Data area content

30 30 30 33 address indicates that the register to be read has a starting address of 0x0003, and 30 30 30 31 is quantity means the number of registers to be read is 1

44: LRC high

39: LRC low

0D: Fixed end bit

0A: Fixed end bit

LRC=20+03+00+03+00+01=27H After negation, add 1 to D9H, and the check code is 44 39

The device will return the following data:

3A 32 30 30 33 30 32 30 31 37 33 36 37 0D 0A (decimal) is: 200302017367

3A: Fixed start bit

32 30 is 20: sensor number

30 33 is 03: the reading sensor concentration indicates that the data area is 3 bits 16-bit data 6 bytes represented

30 32 is 02: data area length

30 31 37 33 is 0173: the current CO2 concentration value is 0*16^3+1*16^2+7*16+3 by 16 times per person. The unit is PPM, which is the concentration value expressed in 4 bytes, and the specific value depends on the concentration read by the sensor

36: LRC high

37: LRC low

0D: Fixed end bit

0A: Fixed end bit

LRC=20+03+02+01+73=99H, add 1 to 67 after negation, and the check code is 36 37

Read sensor address: For example, read the current 20h sensor address 32

*Here is to read the sensor address Modbus poll under the 03 function code address should be set to 192 is the 0x00c0, quantity Set to 1.

The host sends the command to the sensor:

3A 32 30 30 33 30 30 43 30 30 30 30 31 31 43 0D 0A (decimal).

That is : 200300c000011C

3a: Fixed start bit

32 30 is 20: sensor number

30 33 is 03: read sensor concentration

30 30 43 30 30 30 30 31: Data area content

30 30 43 30 address indicates that the register to be read has a starting address of 0x00c0, and 30 30 30 31 is quantity indicating the number of registers to be read 1

31: LRC high

43: LRC low

0D: Fixed end bit

0A: Fixed end bit

LRC=20+03+00+c0+00+01=E4H After negation, add 1 to 1CH, and the check code is 31 43

The device will return the following data:

3A 32 30 30 33 30 32 30 30 32 30 42 42 0D 0A (decimal) is: 2003020020BB

3A: Fixed start bit

32 30 is 20: sensor number

30 33 is 03: the reading sensor concentration indicates that the data area is 3 bits 16-bit data 6 bytes represented

30 32 is 02: data area length

30 30 32 30 is 0020: The current sensor address 0x0020 in the range 0-FF

42: LRC high

42: LRC low

0D: Fixed end bit

0A: Fixed end bit

LRC=20+03+02+00+20=45H, add 1 as BB after negation, and the check code is 42 42

(2) Set the sensor address: For example, change the sensor address No. 32 to No. 01

* Modbus poll (double-click the table showing address 32 to change the address of the 06 function code, address should be set to 192 (should be the default) is.) 0x00c0, value is set to 1 to be the new address of the sensor.

The host sends the command to the sensor:

3A 32 30 30 36 30 30 43 30 30 30 30 31 31 39 0D 0A (decimal).

That is : 200600c0000119

3A: Fixed start bit

32 30 is 20: Sensor number

30 36 is 06: function code (set sensor address).

30 30 43 30 30 30 30 31: Data area

The start address of the 30 30 43 30 sensor register is 0x00c0, and the modified new address of the sensor 30 31 is 01.

31: LRC high

39: LRC low

0D: Fixed end bit

0A: Fixed end bit

LRC= 20+06+00+c0+00+01=E7H After negation, add 1 to 19, and the check code is 31 39.

The device will return the following data:

3A 32 30 30 36 30 30 43 30 30 30 30 31 31 39 0D 0A (decimal).

Same as input

(3) About setting the initial address of the sensor:

Short MCDL, zero calibration within 8 seconds, more than 10 seconds for the initial address of the sensor The default is number 32. The factory address of each sensor is set to 32 (20H), and when the user modifies the sensor address, the corresponding forehead button must be continuously held down for more than 10 seconds to restore the address factory setting.



5. Installation Instructions

The sensor is installed with a positioning hole spacing of 63mm and an aperture of 3.2mm

The wiring socket pitch is 2.54 mm

6. Matters that should be paid attention to in maintenance

The sensor should be calibrated regularly, it is recommended that it be no more than 3 months, and calibration is not required if automatic calibration is turned on for long-term operation

Do not use the sensor for a long time in an environment with a high density of dust

Please use the sensor within the range of the sensor's power supply





7. Order Information



Order information sheet
KCS530	KCS530 CO2 concentration sensor
	xxxx	The sensor measures the range of CO2 concentration in ppm, with a minimum value of 2000 and a maximum value of 50000 ppm.
	2000	Range 200ppm (default).
	10000	Range 10000ppm
	50000	Range 50000ppm
		encode	The reaction speed is divided into two types: fast and slow
		S	Slow (default).
		Q	fast
			encode	Baud rate selection, support commonly used baud rate 2400 9600 19200 38400bps, 8 bits of data, 1 bit of stop bit, no check bit: Confirm special needs before ordering.
			Custom	Confirm the baud rate before ordering
			2400	2400bps baud rate
			9600	9600bps baud rate
			19200	19200bps baud rate
			38400	38400bps baud rate (default)
				encode	Serial port protocol
				Modbus-RTU	Standard Modbus-RTU protocol (default).
				Modbus-ASCII	Standard Modbus-ASCII protocol
				Modbus-Self	Modbus private protocol
KCS530	-2000	-S	-38400	-Modbus-RTU







8. Contact Details

URL: www.kacise.com

Tel: +86-29-17719566736

Email: sales@kacise.com

Address: Tangyan South Road, Xi'an City, Shaanxi Province, China















































































































































Appendix



Shorthand	Full name
VOL	1% VOL refers to 1% of the volume of a particular gas in air.
PPM	1PPM means that the volume of a specific gas in the air accounts for one millionth.
O2	Oxygen molecules
LCD	LCD display
RS485	Asynchronous serial port 485
DC	direct current
AC	Communication
PVC	polyvinyl chloride
