KSS54X Infrared Hydrocarbon Sensor



















1. Overview

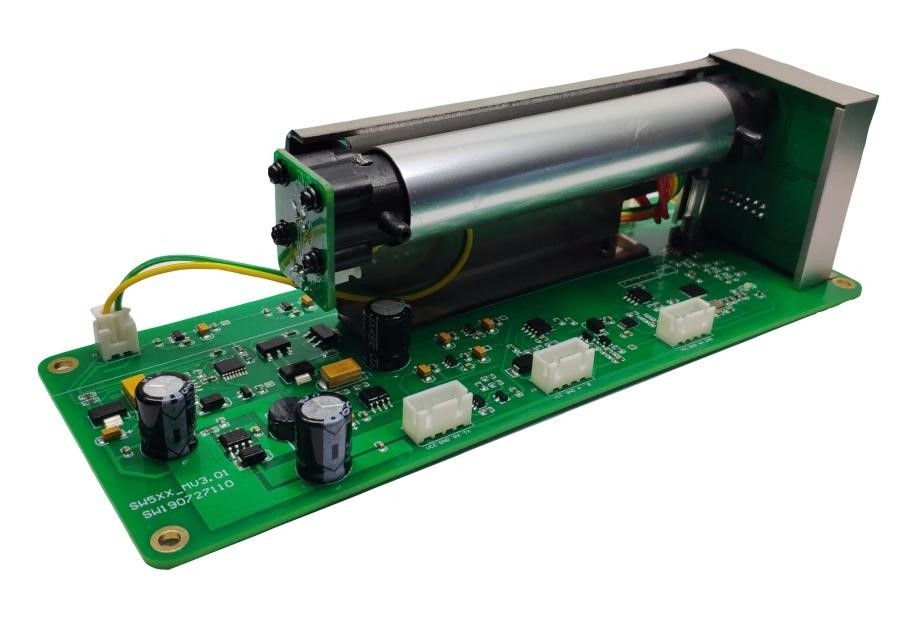

KSS54X infrared CH4 sensor module is a gas sensor module using NDIR infrared absorption detection principle, which determines the concentration according to the absorption of infrared gas. KSS54X adopts imported light source, optical cavity with special structure and dual-channel detector to realize space dual optical path reference compensation. Microprocessors perform signal acquisition, processing, and output. KSS54X has good selectivity, high sensitivity, no oxygen dependence, long life, low power consumption; With temperature control and pressure compensation function; It also has UART, 485 output and analog current/voltage output, which is convenient for customers to various applications.













2. Technical Parameters



parameter	symbol	minimum	Typical values	maximum	unit
Storage Temperature	Tstg	-20	-	80	°C
Operating Temperature	TA	-20		60	°C
Operating Humidity	HA	0		90 non-condensing	% RH
Work Pressure	PA	0.8		1.2	atm
Supply Voltage	Vs	11	12	30	V
Maximum Operating current	Iavg	100	120	150	mA







KSS54X infrared CH4 low concentration performance index (typical 0~5000ppm).

index	gas	Range/ppm	resolution	relative error	absolute error	remark
Zero drift	CH4	0~5000	25ppm	±5%FS	±100ppm	Just meet one of them
Range drift				±5%FS	±100ppm	Just meet one of them
Indication error				±5%FS	±100ppm	Just meet one of them
repeatability				±2%FS	±50ppm	Just meet one of them
T90	≤5S(500ml/min)

















KSS54X infrared CH4 conventional concentration performance index (0~5% vol).

index	gas	Range/vol	resolution	relative error	absolute error	remark
Zero drift	CH4	0~5%	100ppm	±5%FS	±500ppm	Just meet one of them
Range drift				±5%FS	±500ppm	Just meet one of them
Indication error				±5%FS	±500ppm	Just meet one of them
repeatability				±2%FS	±300ppm	Just meet one of them
T90	≤5S(500ml/min)











KSS54X infrared CH4 concentration performance index (typical 0~30% vol)



index	gas	Range/vol	resolution	relative error	absolute error	remark
Zero drift	CH4	0~30%	500ppm	±5%FS	±3000ppm	Just meet one of them
Range drift				±5%FS	±3000ppm	Just meet one of them
Indication error				±5%FS	±3000ppm	Just meet one of them
repeatability				±2%FS	±1000ppm	Just meet one of them
T90	≤5S(500ml/min)



















































KSS54X infrared CH4 full-scale performance index (0~100%vol)





index	gas	Range/vol	resolution	relative error	absolute error	remark
Zero drift	CH4	0~100%	1000ppm	±5%FS	±5000ppm	Just meet one of them
Range drift				±5%FS	±5000ppm	Just meet one of them
Indication error				±5%FS	±5000ppm	Just meet one of them
repeatability				±2%FS	±5000ppm	Just meet one of them
T90	≤5S(500ml/min)













3.Structural Dimension Drawing

Unit: mm



KSS54X has three structural sizes, corresponding to 100mm, 150mm, 200mm optical cavity for choice.

100mm cavity structure diagram:





150mm cavity structure diagram:





200mm cavity structure diagram:











Installation instructions

The sensor is installed with a reference structure diagram with a positioning hole spacing and an aperture of 3.5mm.

The wiring socket spacing is 2.54mm.

4.Methods of matters that should be paid attention to in maintenance

The sensor should be calibrated regularly, not more than 3 months is recommended.

Do not use the sensor for a long time in an environment with a high density of dust.

Please use the sensor within the range of the sensor's power supply.

5.Ordering instructions

In order to be able to purchase the specific specifications required, please provide the following information:

1) Sensor name

2) Measure the gas

3) Sensor measurement accuracy and output mode, etc

For example, KSS54X, CH4, 0-5000 ppm











6. Order Information



Order information sheet
KSS54X	KSS54X CO2 concentration sensor
	xxxx	The sensor measures the range of CO2 concentration in ppm, with a minimum value of 2000 and a maximum value of 50000 ppm.
	2000	Range 200ppm (default).
	10000	Range 10000ppm
	50000	Range 50000ppm
		encode	The reaction speed is divided into two types: fast and slow
		S	Slow (default).
		Q	fast
			encode	Baud rate selection, support commonly used baud rate 2400 9600 19200 38400bps, 8 bits of data, 1 bit of stop bit, no check bit: Confirm special needs before ordering.
			Custom	Confirm the baud rate before ordering
			2400	2400bps baud rate
			9600	9600bps baud rate
			19200	19200bps baud rate
			38400	38400bps baud rate (default)
				encode	Serial port protocol
				Modbus-RTU	Standard Modbus-RTU protocol (default).
				Modbus-ASCII	Standard Modbus-ASCII protocol
				Modbus-Self	Modbus private protocol
KSS54X	-2000	-S	-38400	-Modbus-RTU







7. Contact Details

URL: www.kacise.com

Tel: +86-29-17719566736

Email: sales@kacise.com

Address: Tangyan South Road, Xi'an City, Shaanxi Province, China







































































































































Appendix



Shorthand	Full name
VOL	1% VOL refers to 1% of the volume of a particular gas in air.
PPM	1PPM means that the volume of a specific gas in the air accounts for one millionth.
O2	Oxygen molecules
LCD	LCD display
RS485	Asynchronous serial port 485
DC	direct current
AC	Communication
PVC	polyvinyl chloride
