Name: Waterproof Connectors Ultrasonic Level Meter With Fire Water System
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS640
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

Waterproof Connectors Ultrasonic Level Meter With Fire Water System

Waterproof Connectors Ultrasonic Level Measurement

Fire System Ultrasonic Level Measurement

Water System Ultrasonic Level Measurement

Place of Origin:

China

Brand Name:

Kacise

Certification:

Model Number:

KUS640

Document:

KUS640 Intelligent Ultrason....1.pdf

Request A Quote

Product Details

Range:

1m~50m

Output:

4~20mA/NPN/PNP/RS485

Temperature Compensation:

-10℃～70℃

Vibration Effects:

< ± 0.05％/g，500Hz In All Directions (according To IEC 68-2-64

Measured Variable:

Liquid Level, Material Level

Ambient Temperature:

-25～+85℃

Protection Class:

IP65 ，Complies With EN 60529

Measurement Period:

≤default 200ms, User Set

Highlight:

Waterproof Connectors Ultrasonic Level Measurement

Fire System Ultrasonic Level Measurement

Water System Ultrasonic Level Measurement

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

25*16*19cm,1.2kg

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

10mW Resolution KWD300 Ultrasonic Noise Detection Sensor for Precise Detection

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

KWD510 M26 Hydrophone

Get Best Price

86--17719566736

Contact Now

Product Description

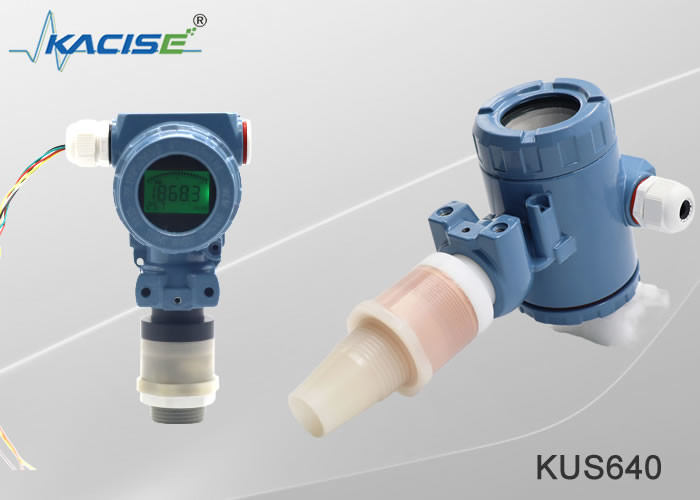

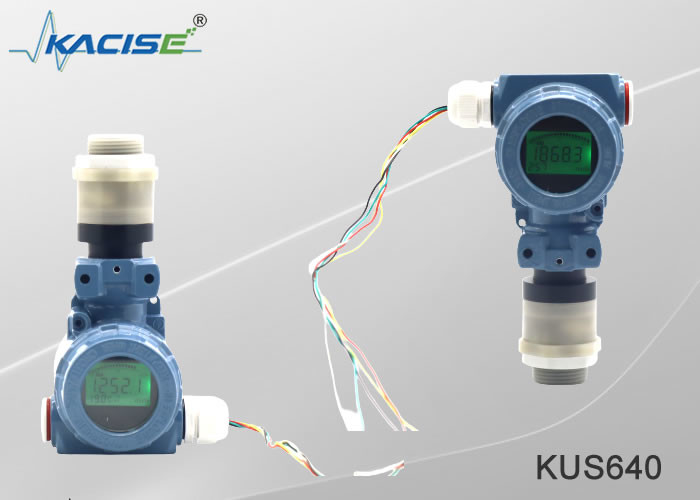

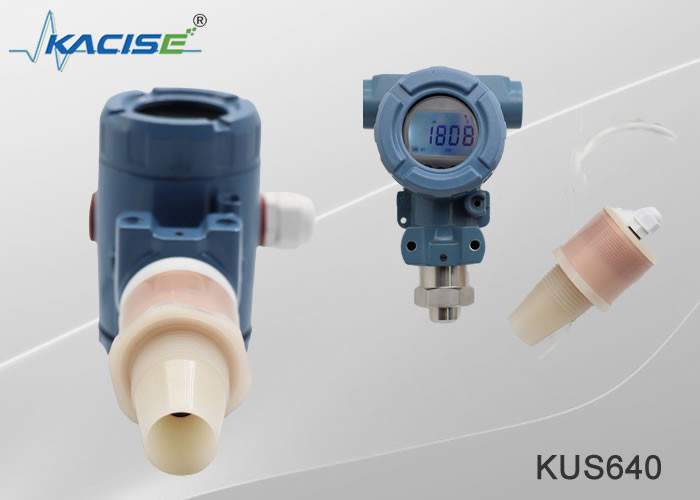

Waterproof Connectors Ultrasonic Level Meter With Fire Water System
Product overview
The Waterproof Connectors Ultrasonic Level Meter is an essential device, especially when integrated with a Fire Water System. It features highly reliable waterproof connectors that ensure stable operation even in wet or harsh environments. This meter utilizes ultrasonic technology to accurately measure water levels, providing crucial data for fire protection and water management applications.
Product Features

Split design, easy to install;
Four-wire wiring, strong sound wave emission, stable and reliable measurement;
Large display window with LCD for easy debugging and observation;
Provide DC4-20mA output and high and low relay output; overvoltage and overcurrent protection, lightning protection;
All plastic probe, acid and alkali resistant, adapt to harsh environment.

Application
• Fire water system
• Sewage treatment
• Food industry

• Chemical, energy

• Long-distance heating

• City water supply
Technical parameter

Enter
Measured variable	liquid level, material level
Measuring range	150mm-1000mm(*Can be customized according to demand*) 200mm-3000mm/300mm-6000mm/300mm-12000/600mm-20000mm/1.2m-30m/1.8-50m
Output
Comprehensive accuracy	RS485/4-20mA,±1%FS/ 0.15℃
Temperature compensation	-10℃～70℃
Vibration effects	< ± 0.05％/g,500Hz in all directions (according to IEC 68-2-64)
Rated conditions Environmental conditions
ambient temperature	-25～+85℃
Storage temperature	-40～+85℃
Protection class	IP65 ,Complies with EN 60529
Electromagnetic Compatibility	EN 61326/A2 Appendix A (2001 )
Display and control
show	SFTN liquid crystal, green backlight, 5-digit display.
limit value	Free settings
Parameter settings	Use 3 buttons
Unit	mm,The default unit is m.
Weight	About 1.35kg
Materials of non-wetted parts
Joint	1NPT,Stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements).
Electrical connections	Make waterproof connectors, air vent cable entries according to EN 175301-803A
Measurement period	≤default 200ms, user set

Order information

KUS	Model	Output	Range		Describe
	640				Product series model
	Customize
					Independent display header without remote transmission
		4-20mA			4-20mA remote transmission
		RS485			RS485 remote transmission (default)
			XXX mm		XXX mmIt means the maximum measurement distance is 1m-50m can be customized
			XXX mm	YYYmm	YYY is the length of the split order cable, the default is 1.2 meters
KUS	640	4-20mA	3000mm
