RS485 output 15m wireless water level sensor

15m Wireless Water Level Sensor

Wireless Water Level Sensor RS485

RS485 Ultrasonic Water Level Measurement

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUS630

Document:

KUS630 Series Ultrasonic Le....2.pdf

Request A Quote

Product Details

Response Time:

＜50ms

Beam Angle:

7°±2

Temp. Compensation:

Inside/outside/fix Temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, Etc, Customizable)

IP Grade:

IP68

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

Usage:

Long Range Object Detection

Range:

10-30m

Highlight:

15m Wireless Water Level Sensor

Wireless Water Level Sensor RS485

RS485 Ultrasonic Water Level Measurement

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

gift box,carton box

Delivery Time

5 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

10000 Pieces per month

10mW Resolution KWD300 Ultrasonic Noise Detection Sensor for Precise Detection

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

KWD510 M26 Hydrophone

Get Best Price

86--17719566736

Contact Now

Product Description

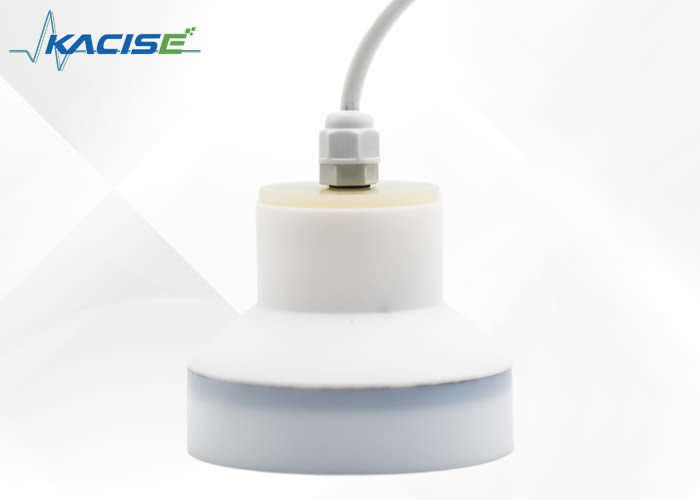

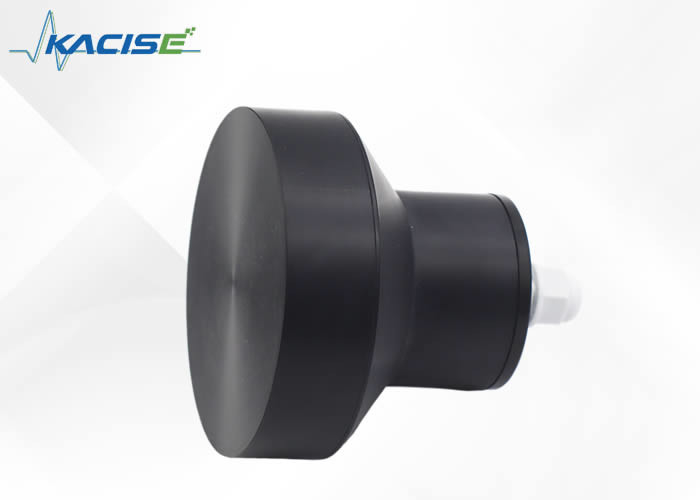

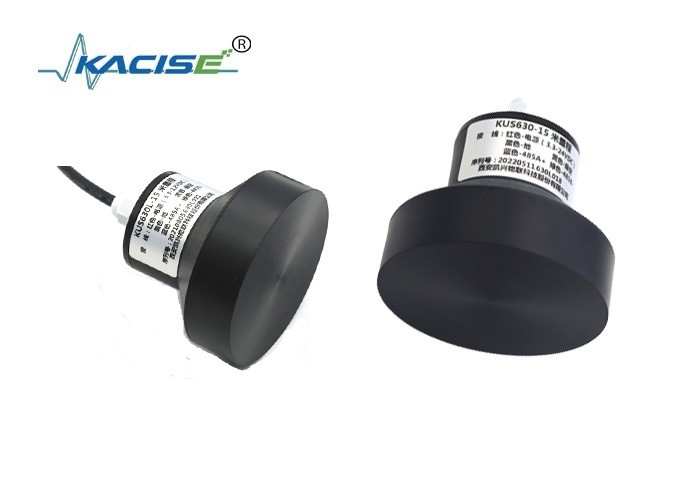

RS485 output 15m wireless water level sensor

Product Description

The RS485 output 15m wireless water level sensor is an advanced and highly efficient device designed for precise water level monitoring. With an impressive 15 - meter measurement range, it can cover a wide variety of applications, from large industrial water tanks to natural water bodies such as reservoirs and lakes.

The RS485 output feature enables seamless integration with existing control systems, allowing for easy data transmission and analysis. This makes it possible to connect multiple sensors in a network for comprehensive water level management. The wireless functionality is a significant advantage, eliminating the need for cumbersome wiring. It provides flexibility in installation, reducing installation time and costs. This sensor is built with high - quality materials to ensure durability and reliable performance even in harsh environmental conditions. It offers accurate and real - time water level data, which is crucial for preventing overflows, optimizing water usage, and ensuring the safety of water - related infrastructure.

RS485 output 15m wireless water level sensor 0

Product features

High sensitivity.
Compact and robust structure.
IP68 high protection rating.

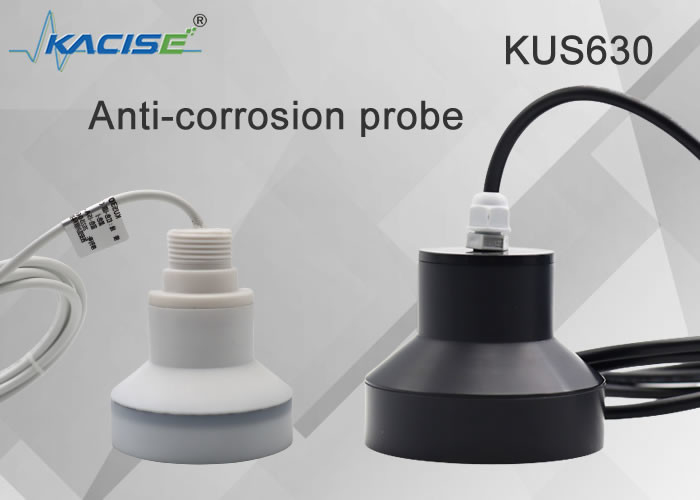

Corrosion resistant casing, suitable for corrosive medium and application

Application

Wireless output ultrasonic level sensor for measuring water level in water tower

Overall Size

The unit is mm.

Wireless output ultrasonic level sensor for measuring water level in water tower

Parameters

Model:KUS630
Measuring range	600... 15000 mm
Blind area	0 ... 600 mm(less than 600mm is an unstable work area, it is not recommended to work in this range);there is a 300mm blind zone version that can be customized.
Power supply	3.3 ... 30 V DC , ripple 10 %SS
Working current	≤ 45 mA(maximum measurement speed) Low-power version: the hibernation power is less than]0.3mA, the transmit power is less than 20mA (less than 2ms), and the receive power is less than 5mA(less than 150ms).
Output	1 Programmable analog output 0-10V. 2 RS485 output. 3 UART serial port output 4 .4-20mA output 5.Switch output
Accuracy	≤1 %
Temperature compensation	yes

The working conditions

Operating temperature	-25…70℃(248...343K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-wire cable
Protection grade	IP68
Material Housing	PTFE/PVC

Electrical Connection and Signal Definition

Pin	Color	Define
1	red	Power positive
2	black	Power return ground
3	yellow	Analog output,voltage output,current output switching value output
4	blue	RS485 A+ or UART TXD
5	green	RS485 B- or UARTRXD
