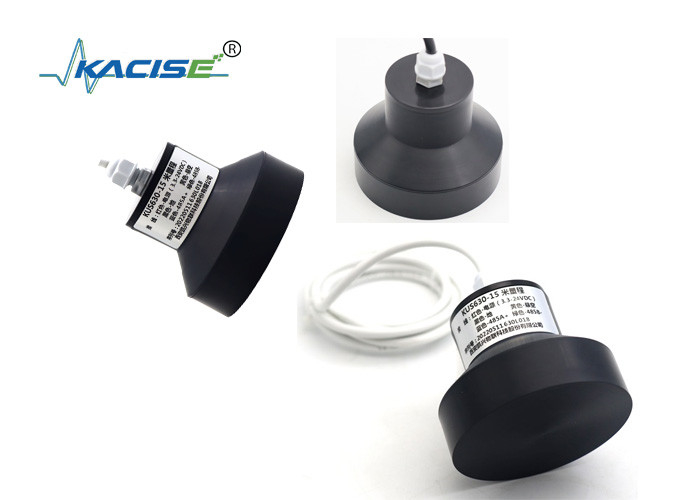

Name: 30m Ultrasonic Transducer Sensor RS485 Output Liquid Level Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS630
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

30m Ultrasonic Transducer Sensor RS485 Output Liquid Level Sensor

30m Ultrasonic Transducer Sensor

30m Liquid Level Sensor

RS485 Liquid Level Sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUS630

Request A Quote

30m Ultrasonic Transducer Sensor RS485 Output Liquid Level Sensor

Product Details

Response Time:

＜50ms

Beam Angle:

7°±2

Temp. Compensation:

Inside/outside/fix Temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, Etc, Customizable)

IP Grade:

IP65

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

Usage:

Long Range Object Detection

Range:

10-30m

Highlight:

30m Ultrasonic Transducer Sensor

30m Liquid Level Sensor

RS485 Liquid Level Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

gift box,carton box

Delivery Time

5 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Supply Ability

1000 Pieces per month

RS485 Output water level sensor Sewage Pool PTFE Low cost intelligent 20khz ultrasonic transducer

Get Best Price

Video

KUS650 Corrosion and acid and alkali resistance distance ultrasonic wireless level sensor iot with 4G/Lora/GPRS/NB

Get Best Price

Video

KUS550 apply to smart bin/trash car sensor low power and good performance

Get Best Price

KUS630A low cost waterproof ultrasonic water level sensor distance detector

Get Best Price

86--17719566736

Contact Now

Product Description

30m Ultrasonic Transducer Sensor RS485 Output Liquid Level Sensor

Key Specifications

Attribute	Value
Response Time	<50ms
Beam Angle	7°±2
Temperature Compensation	Inside/outside/fix temp.
Operating Voltage	14.5VDC~27VDC
Output	RS485, 0~5V
Operating Temperature	0~70℃ (-40~85℃, -55~125℃ customizable)
IP Rating	IP65
Detection Range	200mm~3000mm
Transducer Frequency	70KHZ
Repeatability Precision	≤1%

KUS630 10m-30m Non-Contact Intelligent Ultrasonic Water Level Sensor

Product Features

High sensitivity for accurate measurements
Compact and robust structure for industrial environments
IP68 high protection rating
Corrosion resistant casing suitable for corrosive media

Applications

Tank and bin level measurement
Proximity zone and people detection
Robot ranging and autonomous navigation
Industrial automation and distance measuring
Long range object detection

Technical Description

This sensor provides short to long-range detection and ranging in a compact, robust PVC housing designed to meet IP65 standards. The KUS630 model offers precise measurements with temperature compensation and multiple output options.

Detailed Specifications

Parameter	Value
Model	KUS630
Measuring Range	0.6m-15m / 1.2m-30m / 1.8m-50m (customizable)
Blind Spot	0-0.6m/1.2m/1.8m (minimum 0.3m customizable)
Supply Voltage	3.3-24V DC
Working Current	≤45mA (fastest measurement)
Output Signals	RS485, UART, 0-10V analog, 4-20mA, switch output
Measurement Accuracy	≤1% F.S.
Ranging Resolution	0.1mm
Working Temperature	-25 to 70℃
Storage Temperature	-40 to 85℃
Protection Class	IP68
Housing Material	PVC/PVDF/PTFE/ABS

Dimensions

Wiring Diagram
