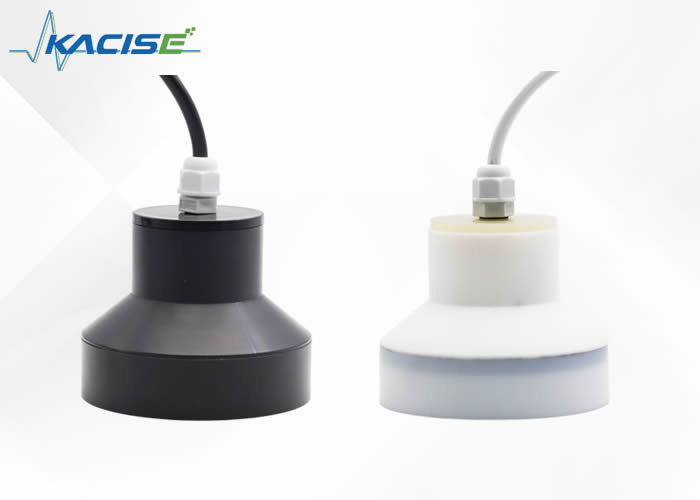

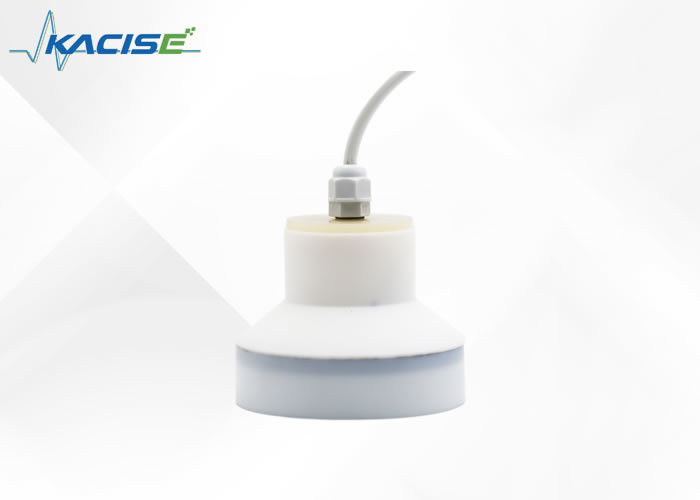

Name: 5V Ultrasonic Transducer Sensor Non Contact Fluid Level Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS630
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

5V Ultrasonic Transducer Sensor Non Contact Fluid Level Sensor

5V Ultrasonic Transducer Sensor

5V Non Contact Fluid Level Sensor

5V water tank level meter

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUS630

Document:

KUS630 Series Ultrasonic Le....2.pdf

Request A Quote

5V Ultrasonic Transducer Sensor Non Contact Fluid Level Sensor

Product Details

Response Time:

＜50ms

Beam Angle:

7°±2

Temp. Compensation:

Inside/outside/fix Temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, Etc, Customizable)

IP Grade:

IP65

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

Usage:

Long Range Object Detection

Range:

10-30m

Highlight:

5V Ultrasonic Transducer Sensor

5V Non Contact Fluid Level Sensor

5V water tank level meter

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

gift box,carton box

Delivery Time

5 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Supply Ability

10000 Pieces per month

RS485 Output water level sensor Sewage Pool PTFE Low cost intelligent 20khz ultrasonic transducer

Get Best Price

Video

KUS650 Corrosion and acid and alkali resistance distance ultrasonic wireless level sensor iot with 4G/Lora/GPRS/NB

Get Best Price

Video

KUS550 apply to smart bin/trash car sensor low power and good performance

Get Best Price

KUS630A low cost waterproof ultrasonic water level sensor distance detector

Get Best Price

86--17719566736

Contact Now

Product Description

5V Ultrasonic Transducer Sensor Non Contact Fluid Level Sensor

Product Specifications

Attribute	Value
Response Time	＜50ms
Beam Angle	7°±2
Temp. Compensation	inside/outside/fix temp.
Operating Voltage	14.5VDC~27VDC
Output	RS485,0~5V
Operating Ambient Temp.	0~70℃ (-40~85℃, -55~125℃, etc, customizable)
IP grade	IP65
Detection Range	200mm~3000mm
Transducer Frequency	70KHZ
Repeatability Precision	≤1%
Usage	Long range object detection
Range	10-30m

Product Features

High sensitivity
Compact and robust structure
IP68 high protection rating
Corrosion resistant casing, suitable for corrosive medium and application

Applications

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation

Product Description

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing, designed to meet IP65.

Technical Parameters

General specifications
Model	KUS630
Measuring range	0.6m...15m Or 1.2m...30m Or 1.8m...50m
Blind spot	0...0.6m/1.2m/1.8m (Unstable working area is within 0.6m, it is not recommended to work in this range); the minimum blind area version of 0.3m can be achieved, which needs to be customized.
Supply voltage	3.3...24 V DC, ripple 10%SS
Working current	≤45 mA (fastest measurement speed) Low-power version, sleep power consumption is less than 0.3mA, sending power consumption is 20mA (less than 2ms), and receiving power consumption is not more than 8mA (less than 150ms)
Output signal	1: Programmable analog output 0-10V 2: RS485 output 3: Uart serial output 4: 4-20mA output 5: Switch output
Measurement accuracy	≤1% F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm
Working conditions
Working temperature	-25...70℃ (248...343K)
Storage temperature	-40...85℃ (233...358K)
Other instructions
Electrical connection	5-core cable (analog output), 6-core cable (switch output)
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS

Dimensions

Wiring Diagram
