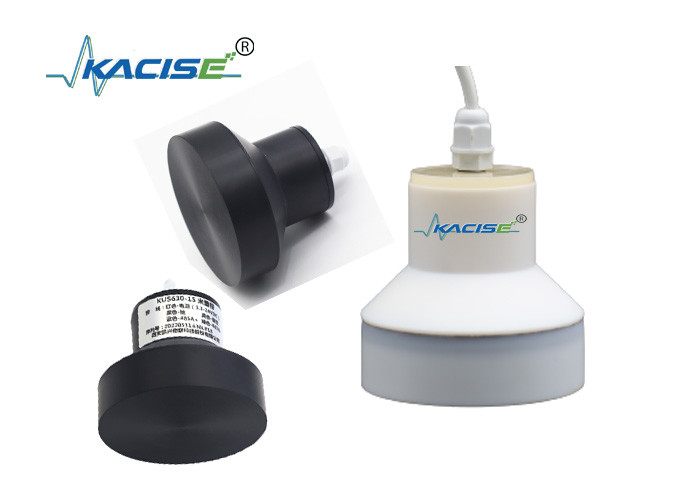

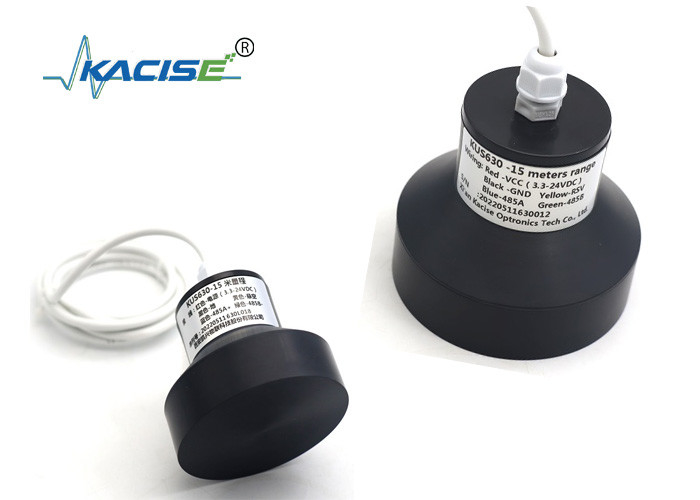

KUS630 10m-30m ultrasonic tank level sensor 10m non contact Intelligent Ultrasonic Water Level sensor
Product features
Application
Product Description
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,designed to meet IP68.
Parameter
General specifications
| Model: KUS630 | |
| Measuring range |
0.6m... 15m
Or 1.2m….30m
Or 1.8m….50m
|
| Blind spot |
0 ... 0.6m/1.2m/1.8m(Unstable working area is within 0.6m, it is not recommended
to work in this range); the minimum blind area version of 0.3m can be achieved,
which needs to be customized.
|
| Supply voltage |
3.3 ... 24 V DC , ripple 10 %SS
|
| Working current |
≤ 45 mA (fastest measurement speed)
Low-power version, sleep power consumption is less than 0.3mA,
sending power consumption is 20mA (less than 2ms), and receiving
power consumption is not more than 8mA (less than 150ms)
|
|
Output signal |
1:Programmable analog output 0-10V.
2:RS485 output.
3:Uart serial output
4:4-20mA output
5:Switch output
|
| Measurement accuracy | ≤1 %F.S. |
| Temperature compensation | Yes |
| Ranging resolution | 0.1mm； |
Working conditions
| Working temperature | -25…70℃(248...343K) |
| Storage temperature | -40…85℃(233...358K) |
Other instructions
| Electrical connection | 5-core cable (analog output), 6-core cable (switch output)； |
| Protection class | IP68 |
| shell material | PVC /PVDF/PTFE/ABS |
Dimensions
Wiring
