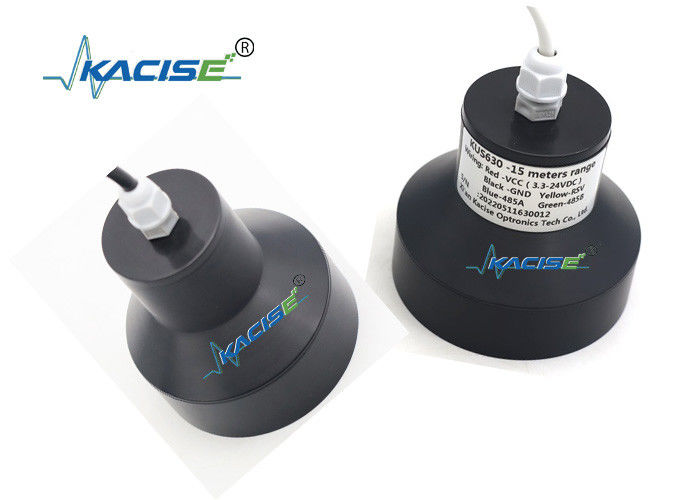

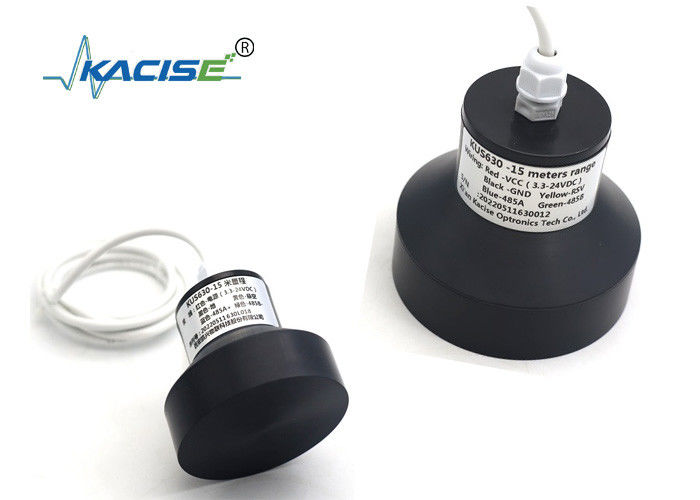

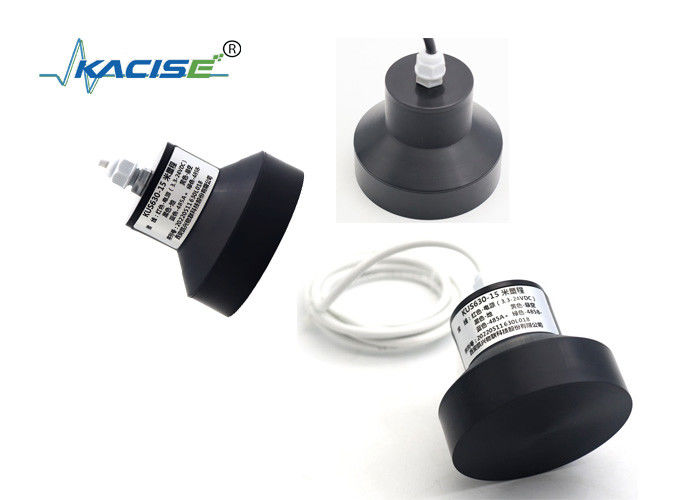

Name: 10m Range Ultrasonic Transducer Sensor with RS485 Output and IP65 Protection for Non-Contact Liquid Level Detection
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS630
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

10m Range Ultrasonic Transducer Sensor with RS485 Output and IP65 Protection for Non-Contact Liquid Level Detection

10m Ultrasonic Transducer Sensor

10m Non Contact Liquid Level Sensor

10m Liquid Level Sensor For Tank

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUS630

Request A Quote

Product Details

Beam Angle:

7°±2

Temp. Compensation:

Inside/outside/fix Temp.

Operating Voltage:

14.5VDC~27VDC

Output:

RS485,0~5V

Operating Ambient Temp.:

0~70℃ (-40~85℃, -55~125℃, Etc, Customizable)

Response Time:

＜50ms

IP Grade:

IP65

Detection Range:

200mm~3000mm

Transducer Frequency:

70KHZ

Repeatability Precision:

≤1%

Usage:

Long Range Object Detection

Range:

10-30m

Highlight:

10m Ultrasonic Transducer Sensor

10m Non Contact Liquid Level Sensor

10m Liquid Level Sensor For Tank

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

gift box,carton box

Delivery Time

5 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Supply Ability

1000 Pieces per month

KUS650 Ultrasonic Tank Wireless Level Sensor with IP65 Protection and 200mm~3000mm Detection Range for Sewage Treatment

Get Best Price

Video

KUM2500C Ultrasonic Fuel Tank Level Sensor with 0.1mm Measurement Resolution IP67 Protection and RS232/RS485/TTL/4-20mA Interface

Get Best Price

Video

15m Non-Contact Ultrasonic Water Level Sensor with RS485 Output IP68 Protection Corrosion Resistant High Sensitivity

Get Best Price

Video

Smallest Or Miniature Liquid Level Ultrasonic Transducer Sensor PVDF Material

Get Best Price

Contact Now

Product Description

KUS630 10m-30m non contact Intelligent Ultrasonic Water Level Sensor RS485 Output liquid level sensor

1. Product features:

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

Application

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation

2. Product Description

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing, designed to meet IP65.

3. Parameter

General specifications

Model: KUS630
Measuring range	0.6m... 15m Or 1.2m….30m Or 1.8m….50m
Blind spot	0 ... 0.6m/1.2m/1.8m(Unstable working area is within 0.6m, it is not recommended to work in this range); the minimum blind area version of 0.3m can be achieved, which needs to be customized.
Supply voltage	3.3 ... 24 V DC , ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed) Low-power version, sleep power consumption is less than 0.3mA, sending power consumption is 20mA (less than 2ms), and receiving power consumption is not more than 8mA (less than 150ms)
Output signal	1:Programmable analog output 0-10V. 2:RS485 output. 3:Uart serial output 4:4-20mA output 5:Switch output
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-25…70℃(248...343K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP68
shell material	PVC /PVDF/PTFE/ABS

4. Dimensions

5. Wiring
