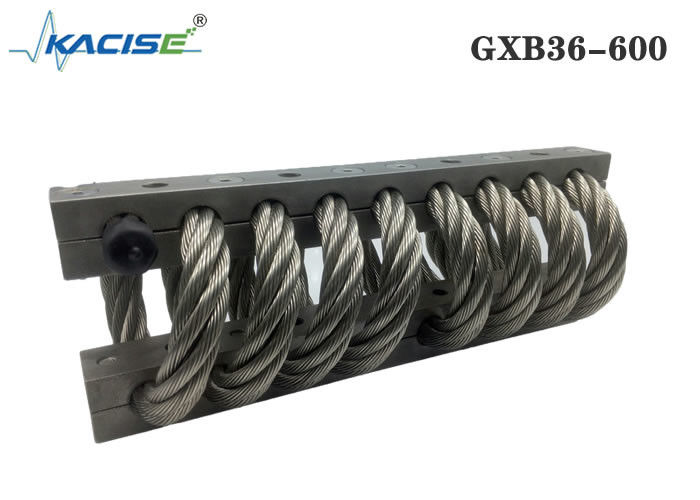

GXB36-600 Helical Isolator with SS304 Material 5-10Hz Resonant Frequency and 1277Kg Vertical Static Load for Fragile Equipment

Product Description

The full helical isolator is an all-in-one isolator thus it can be used in various sectors such as defense, aerospace, and nuclear and many different application types. This isolator features many advanced characteristics starting from the all-metal and multidirectional design to the quality ability of shock and vibration isolation.

A large range of models are available, suitable for orientation in compression/tension, compression/tension at 45 degrees, shear, or roll. Isolator height and width can be customized for optimal performance for your application.

Product Size Chart

Press Fit Test Data Sheet

45° Inclined Press Fitting Load Test Data Sheet

Shear Rolling Load Test Data Sheet

Wire rope vibration isolators have the following advantages:

• 1: With nonlinear stiffness
• 2: All-round shock absorption
• 3: The resonant frequency is low, and the low-frequency shock absorption effect is good
• 4: Corrosion resistance, high and low temperature resistance, can continue to work in harsh environments
• 5: Easy installation, maintenance-free, long service life

Product Size Chart

Guide for installation of wire rope isolator

1. 1. Before installation, please carefully check whether the mounting hole matches the mounting hole of the vibration isolator, such as whether the thread is the same, etc.
2. 2, the installation hole is clean, there is no burr, rust, damage and other defects.
3. 3. Since the vibration isolator is an elastic component, it needs a little movable space when working. Before installation, please carefully check whether there is any equipment affecting installation in the installation part and whether the movable space of the vibration isolator is enough. Please check whether the vibration isolator is in good condition and has no defects before installation.
4. 4. Prepare a suitable screwdriver and crowbar.
5. 5, first install the isolator to heavy equipment or fixed equipment, installation screws do not need to tighten, so that the isolator can be slightly active.
6. 6. Install the connecting device on the other side of the vibration isolator. If the mounting hole is slightly misaligned, you can move the vibration isolator or use a crowbar to align the mounting hole of the vibration isolator with the mounting hole of the equipment, and then screw the fixing screw.
7. 7. After fixing the device position, tighten all the fixing screws.
