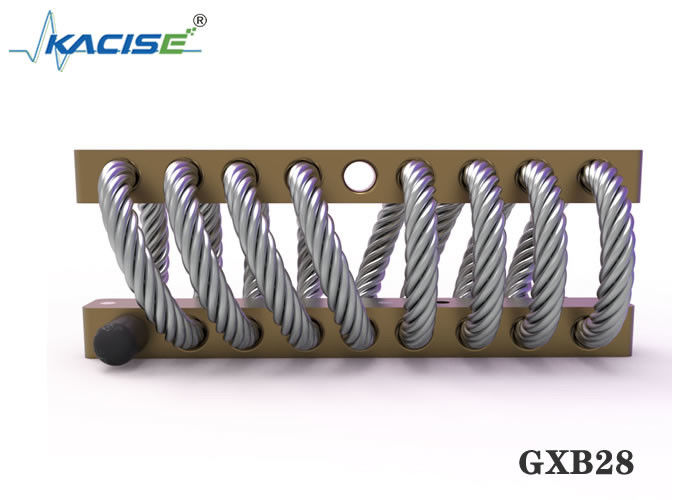

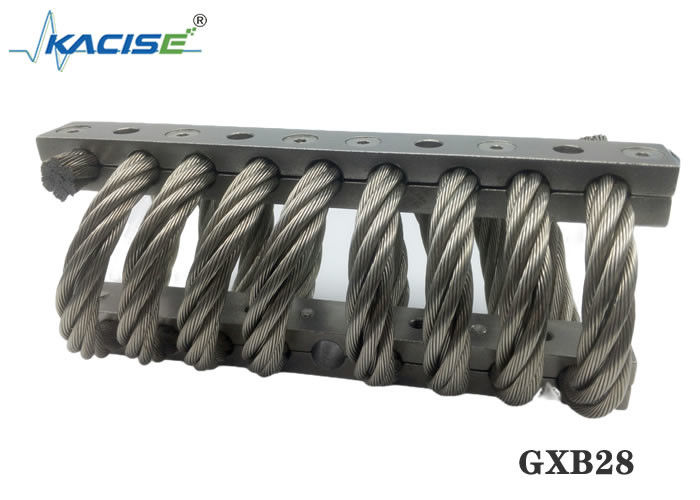

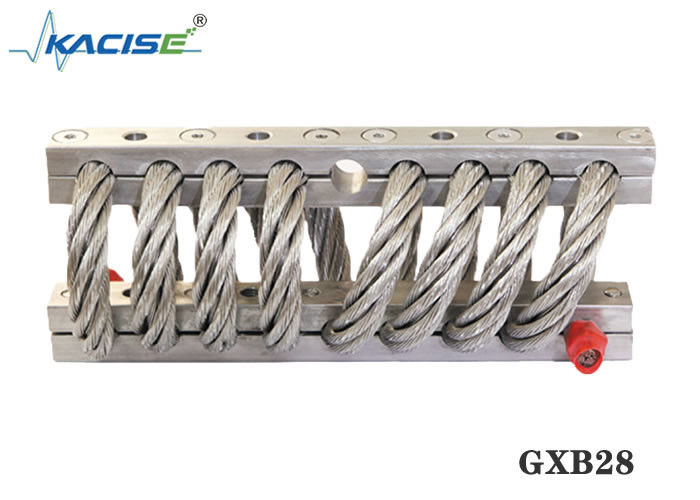

SS304 Wire Rope Vibration Isolator with 5-10Hz Resonant Frequency and Three-Plane Isolation for Machine Tool Equipment

Helical Wire Rope Isolators are available in a wide range of sizes to permit attachment to almost any machinery or enclosure regardless of weight

Compact, low profile design and the ability to attenuate heavy shock loads with minimum deflection allows use where space is at a premium

Three-plane, all-axes isolation means that the equipment is free to move in any direction – vertically, horizontally and laterally

Custom winding, loop count and mounting features are available to meet specific requirements

Special cable materials (galvanized steel and other stainless steel alloys), special bar materials (stainless steel, titanium finish platings) and special mounting configurations (inserts, thread types, clearance holes) to name just a few are available

• Rugged, metal construction
• Low frequency, highly damped vibration isolation
• Excellent shock attenuation
• Wide temperature range, -200°F to +650°F
• Fail-safe construction
• Maintenance-free

1. Before installation, please carefully check whether the mounting hole matches the mounting hole of the vibration isolator, such as whether the thread is the same, etc.
2. The installation hole is clean, there is no burr, rust, damage and other defects.
3. Since the vibration isolator is an elastic component, it needs a little movable space when working. Before installation, please carefully check whether there is any equipment affecting installation in the installation part and whether the movable space of the vibration isolator is enough. Please check whether the vibration isolator is in good condition and has no defects before installation.
4. Prepare a suitable screwdriver and crowbar.
5. First install the isolator to heavy equipment or fixed equipment, installation screws do not need to tighten, so that the isolator can be slightly active.
6. Install the connecting device on the other side of the vibration isolator. If the mounting hole is slightly misaligned, you can move the vibration isolator or use a crowbar to align the mounting hole of the vibration isolator with the mounting hole of the equipment, and then screw the fixing screw.
7. After fixing the device position, tighten all the fixing screws.

• Airborne avionics and equipment
• Shipboard/Marine equipment and electronics
• Mobile equipment and electronics
• Computer equipment and disc drives
• Blowers and Fans
• Motors and Pumps
• Medical Equipment
• Motor Generators and Compressors
• HVAC Equipment
