Corrosion Resistant Steel Wire Rope Vibration Isolators With Low Resonant Frequency

Product Description

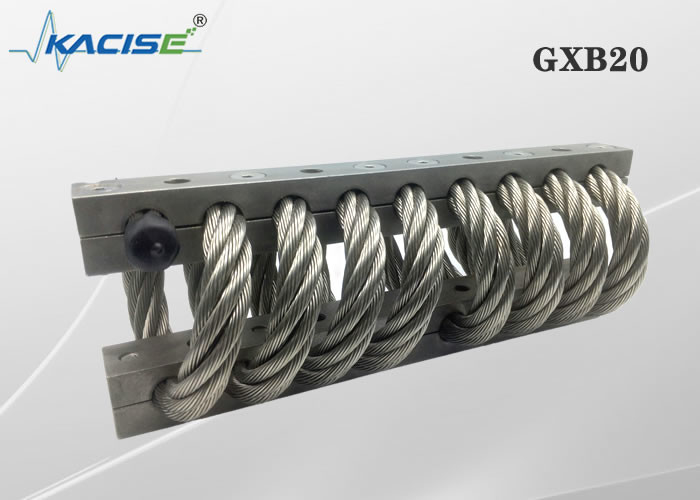

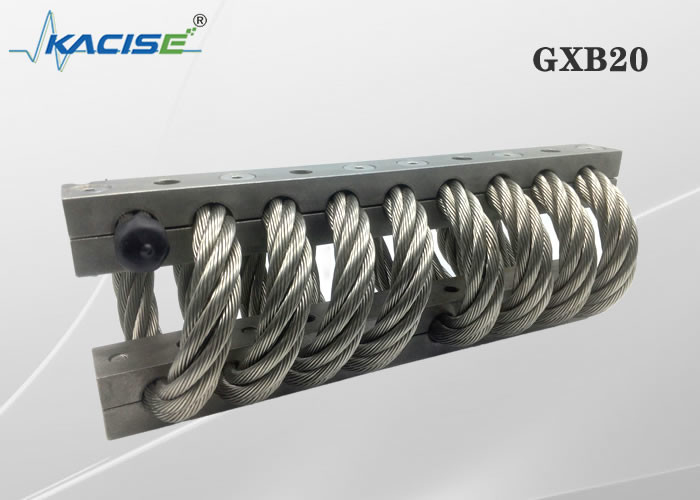

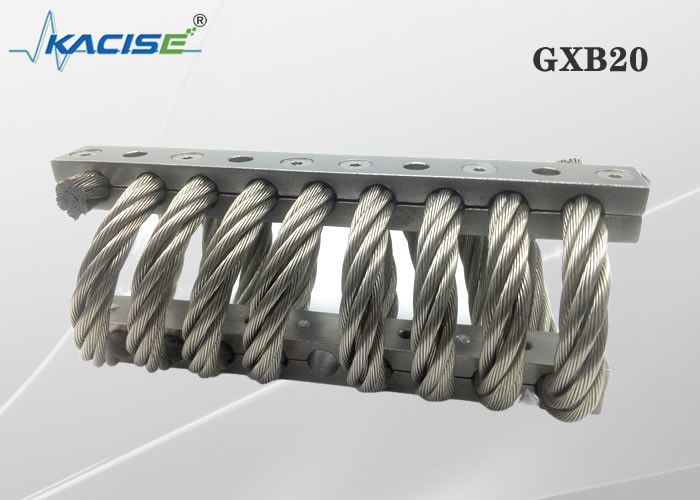

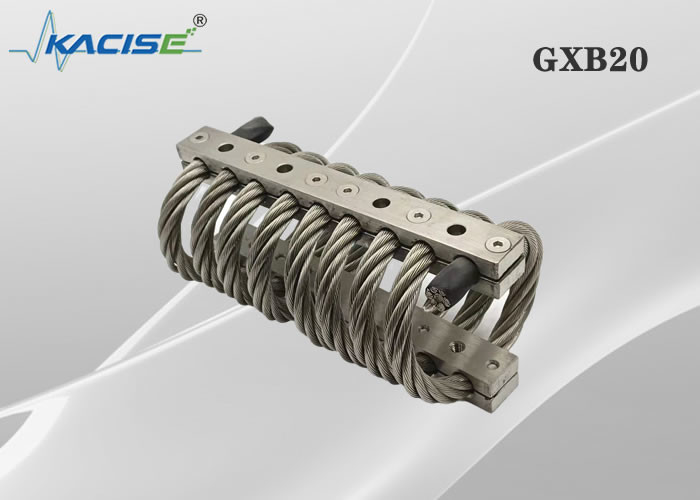

The wire rope vibration isolator is a vibration and shock absorbing device that is calculated and designed with a carbon steel or stainless steel skeleton and a standard stainless steel cable according to a certain elastic modulus. It can effectively absorb vibration and impact energy, protect equipment and reduce noise. The purpose of providing high equipment life and system reliability. The wire rope vibration isolator produced by our company can effectively absorb vibration, impact and reduce noise. The material and surface treatment process, quality control method, and the unique properties of the product itself ensure that the product has excellent performance in ultra-high and low temperature, chemical corrosion environment, strong oxidation and strong reduction property environment, dusty and high friction environment , reliable and stable.
Our company's wire rope vibration isolators are widely used in commercial transportation, navigation and aviation, chemical automation, national defense construction and other fields.

Materials and Finished Products
We use the international standard 304 stainless steel for the steel wire and cable. There are three common steel materials for the plywood, stainless steel 304 and aluminum alloy 6061-T6. The surface of all splints has been treated to ensure that it meets the requirements of relevant industry and national military standards.
The steel wire rope can be made of hot-dip galvanized or nylon-coated surface, which can effectively increase the performance of the product in harsh environments.

Product Size Chart

Pz direction press fit test data sheet

45° Inclined Press Fitting Load Test Data Sheet

Shear Rolling Load Test Data Sheet

Wire rope vibration isolators have the following advantages:
1: With nonlinear stiffness
2: All-round shock absorption
3: The resonant frequency is low, and the low-frequency shock absorption effect is good
4: Corrosion resistance, high and low temperature resistance, can continue to work in harsh environments
5: Easy installation, maintenance-free, long service life

Product Size Chart

Guide for installation of wire rope isolator

1. Before installation, please carefully check whether the mounting hole matches the mounting hole of the vibration isolator, such as whether the thread is the same, etc.

2, the installation hole is clean, there is no burr, rust, damage and other defects.

3. Since the vibration isolator is an elastic component, it needs a little movable space when working. Before installation, please carefully check whether there is any equipment affecting installation in the installation part and whether the movable space of the vibration isolator is enough. Please check whether the vibration isolator is in good condition and has no defects before installation.

4. Prepare a suitable screwdriver and crowbar.

5, first install the isolator to heavy equipment or fixed equipment, installation screws do not need to tighten, so that the isolator can be slightly active.

6. Install the connecting device on the other side of the vibration isolator. If the mounting hole is slightly misaligned, you can move the vibration isolator or use a crowbar to align the mounting hole of the vibration isolator with the mounting hole of the equipment, and then screw the fixing screw.

7. After fixing the device position, tighten all the fixing screws.
