| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | GXB16 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Length: | 216mm | Width: | 92/102/105/121/133/144/156/180mm |
|---|---|---|---|
| High: | 76/83/89/95/108/124/137/155mm | Mounting Holes: | M8 |
| Resonant Frequency: | 5-10HZ | Outer Mounting Hole Distance/L1(mm): | 156/155.6 |
| Inner Mounting Hole Distance/L2(mm): | 66/66.6 | Maximum Vertical Deformation (mm): | 32/38/43.2/48.8/59/74.7/85.9/102 |
| Vertical Static Load (Kg): | 364/304/286/231/195/173/151/120 | Vertical Static Stiffness (Kg/mm): | 95/70/61/45/34/26/20/14 |
| Vertical Dynamic Stiffness (Kg/mm): | 47/33/27/19.6/13.7/9.6/7.4/4.9 | 45° Maximum Deformation (mm): | 44.7/52.8/61/68/84/105/121/144 |
| 45° Static Load (Kg): | 258/215/204/162/140/122/106/82 | 45°Static Stiffness(Kg/mm): | 53/39/34/25/19/14.7/11.7/8.3 |
| 45° Dynamic Stiffness (Kg/mm): | 12/16.8/13.8/9.8/6.8/4.9/3.7/2.5 | Maximum Deformation Of Side Suspension (mm): | 33/40/45/50/56.9/77.7/90/107 |
| Side Hanging Static Load (Kg): | 240/171/155/120/80/60/44/28 | Side Hanging Static Stiffness (Kg/mm): | 29/20/17/12/8/6/4.6/3 |
| Side Suspension Stiffness (Kg/mm): | 25/17/14/10/5/4/3/2.2 | Material: | SS304 |
| Weight (kg): | 1.8/1.9/2/2.2/2.4/2.7/2.9/3 | Whether To Support Product Customization: | Yes |
| High Light: | Oxidation Wire Rope Vibration Isolator,Property Environment Wire Rope Isolator,5HZ Wire Rope Vibration Isolator |
||
Product Description

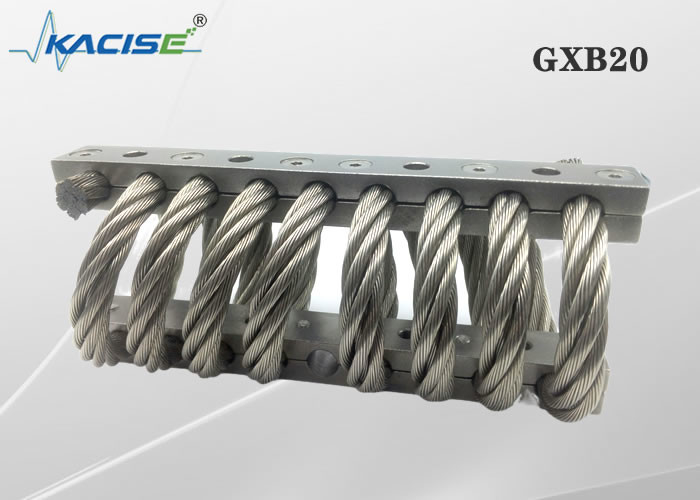

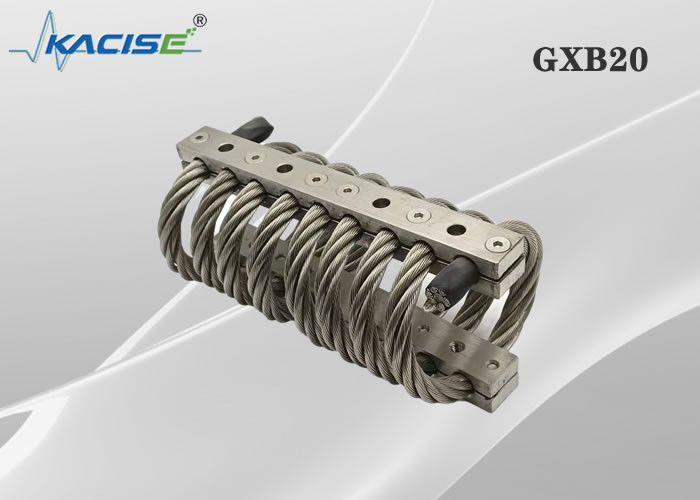

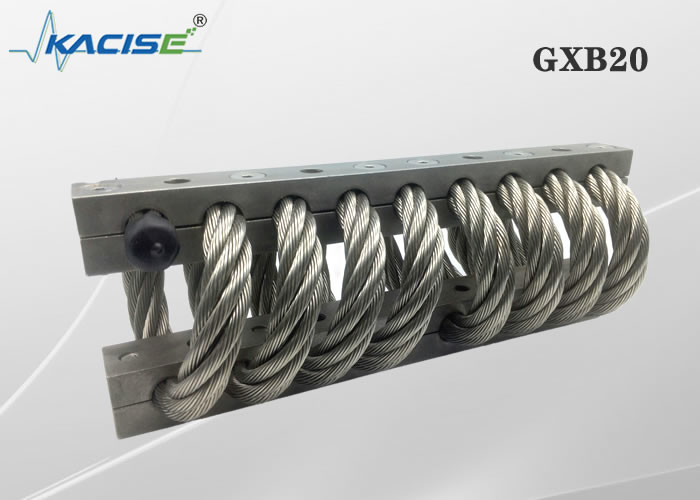

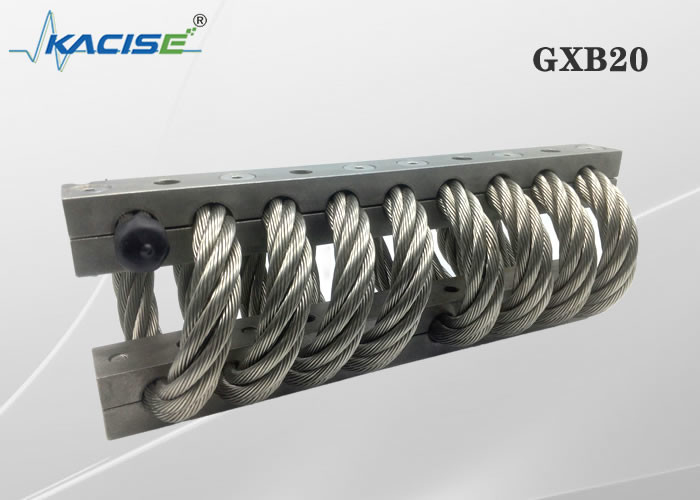

The wire rope vibration isolator is a vibration and shock absorbing device that is calculated and designed with a carbon steel or stainless steel skeleton and a standard stainless steel cable according to a certain elastic modulus. It can effectively absorb vibration and impact energy, protect equipment and reduce noise. The purpose of providing high equipment life and system reliability. The wire rope vibration isolator produced by our company can effectively absorb vibration, impact and reduce noise. The material and surface treatment process, quality control method, and the unique properties of the product itself ensure that the product has excellent performance in ultra-high and low temperature, chemical corrosion environment, strong oxidation and strong reduction property environment, dusty and high friction environment , reliable and stable.
Our company's wire rope vibration isolators are widely used in commercial transportation, navigation and aviation, chemical automation, national defense construction and other fields.
Installation method
We provide a full range of installation methods, including through-hole installation, countersunk head screw installation, thread installation, upper and lower clamping plates, and the choice of mounting hole types can be flexibly configured. We provide two ordering standards, imperial and metric, to meet the requirements of domestic and foreign equipment, and import and export equipment.
The number of turns of the wire rope, customers can select and order products according to the number of turns of the wire rope according to our product specifications. The minimum number of laps is 2 laps, and the most commonly used is 12 laps. It can also be customized according to customer requirements.
Product Size Chart
| Product number | High(mm) | Width(mm) | Product weight(kg) | Installation method | Hole size(mm) | Thread size(mm) | Counterbore taper | |
| JGX-127-8-X-3648-A-S | 76 | ± 2.54 | 92 | 1.81 | A, B, C, D, E, S | Ø9.0 +0.13-0.38 | M8X1.25 M7X1.0 | 90° |
| JGX-127-8-X-3047-A-S | 83 | 102 | 1.91 | |||||
| JGX-127-8-X-2869-A-S | 89 | 105 | 2 | |||||
| JGX-127-8-X-2313-A-S | 95 | 121 | 2.22 | |||||
| JGX-127-8-X-1957-A-S | 108 | 133 | 2.4 | |||||
| JGX-127-8-X-1735-A-S | 124 | 144 | 2.7 | |||||
| JGX-127-8-X-1512-A-S | 137 | 156 | 2.9 | |||||
| JGX-127-8-X-1201-A-S | 155 | 180 | 3.09 | |||||
Pz direction press fit test data sheet
| Curve number | Product number | Static load(N) | Maximum deformation (mm) | Vibration stiffness Kv kN/m | Impact stiffness Ks kN/m |
| 1 | JGX-127-8-X-3648-A-S | 3648 | 32 | 954 | 471 |
| 2 | JGX-127-8-X-3047-A-S | 3047 | 38.1 | 708 | 333 |
| 3 | JGX-127-8-X-2869-A-S | 2869 | 43.2 | 613 | 278 |
| 4 | JGX-127-8-X-2313-A-S | 2313 | 48.8 | 457 | 196 |
| 5 | JGX-127-8-X-1957-A-S | 1957 | 59.9 | 340 | 137 |
| 6 | JGX-127-8-X-1735-A-S | 1735 | 74.7 | 261 | 96 |
| 7 | JGX-127-8-X-1512-A-S | 1512 | 85.9 | 207 | 74 |
| 8 | JGX-127-8-X-1201-A-S | 1201 | 102.6 | 148 | 49 |
45° Inclined Press Fitting Load Test Data Sheet
| Curve number | Product number | Static load(N) | Maximum deformation (mm) | Vibration stiffness Kv kN/m | Impact stiffness Ks kN/m |
| 1 | JGX-127-8-X-3648-A-S | 2580 | 44.7 | 539 | 236 |
| 2 | JGX-127-8-X-3047-A-S | 2157 | 52.8 | 398 | 168 |
| 3 | JGX-127-8-X-2869-A-S | 2046 | 61 | 349 | 138 |
| 4 | JGX-127-8-X-2313-A-S | 1624 | 68.6 | 259 | 98 |
| 5 | JGX-127-8-X-1957-A-S | 1401 | 84.8 | 193 | 68 |
| 6 | JGX-127-8-X-1735-A-S | 1223 | 105.7 | 147 | 49 |
| 7 | JGX-127-8-X-1512-A-S | 1068 | 121.9 | 117 | 37 |
| 8 | JGX-127-8-X-1201-A-S | 823 | 144.8 | 83 | 25 |
Shear Rolling Load Test Data Sheet
| Curve number | Product number | Static load(N) | Maximum deformation (mm) | Vibration stiffness Kv kN/m | Impact stiffness Ks kN/m |
| 1 | JGX-127-8-X-3648-A-S | 2936 | 33 | 294 | 294 |
| 2 | JGX-127-8-X-3047-A-S | 1713 | 40.1 | 207 | 207 |
| 3 | JGX-127-8-X-2869-A-S | 1557 | 45.2 | 173 | 173 |
| 4 | JGX-127-8-X-2313-A-S | 1201 | 50.8 | 121 | 121 |
| 5 | JGX-127-8-X-1957-A-S | 801 | 56.9 | 81 | 81 |
| 6 | JGX-127-8-X-1735-A-S | 601 | 77.7 | 60 | 60 |
| 7 | JGX-127-8-X-1512-A-S | 445 | 90.9 | 46 | 46 |
| 8 | JGX-127-8-X-1201-A-S | 289 | 107.7 | 30 | 30 |
Performance parameters: vibration stiffness and impact stiffness (Kv or Ks):
The stiffness of wire rope isolators is nonlinear. There is a large difference in stiffness between small and large deformations.
Users can calculate and select according to the parameters tested in the product manual and the formula we give, or contact us, and our engineers will provide you with selection guidance.
Product Size Chart
Guide for installation of wire rope isolator
1. Before installation, please carefully check whether the mounting hole matches the mounting hole of the vibration isolator, such as whether the thread is the same, etc.
2, the installation hole is clean, there is no burr, rust, damage and other defects.
3. Since the vibration isolator is an elastic component, it needs a little movable space when working. Before installation, please carefully check whether there is any equipment affecting installation in the installation part and whether the movable space of the vibration isolator is enough. Please check whether the vibration isolator is in good condition and has no defects before installation.
4. Prepare a suitable screwdriver and crowbar.
5, first install the isolator to heavy equipment or fixed equipment, installation screws do not need to tighten, so that the isolator can be slightly active.
6. Install the connecting device on the other side of the vibration isolator. If the mounting hole is slightly misaligned, you can move the vibration isolator or use a crowbar to align the mounting hole of the vibration isolator with the mounting hole of the equipment, and then screw the fixing screw.
7. After fixing the device position, tighten all the fixing screws.
