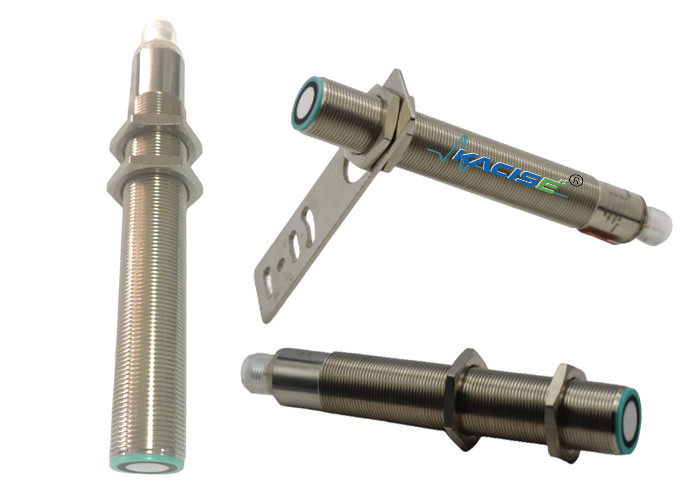

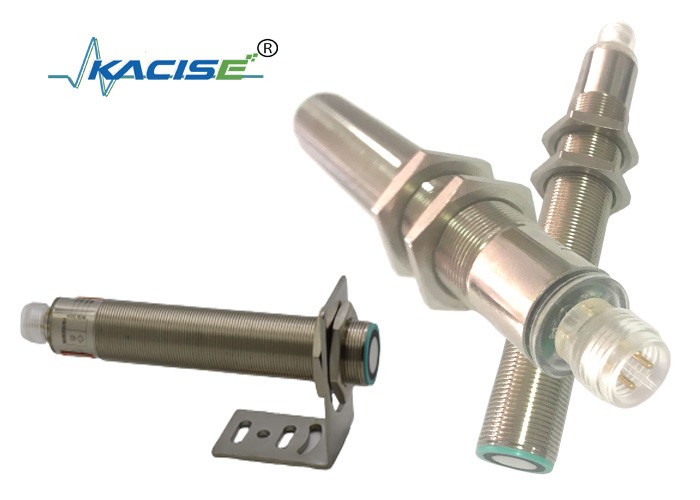

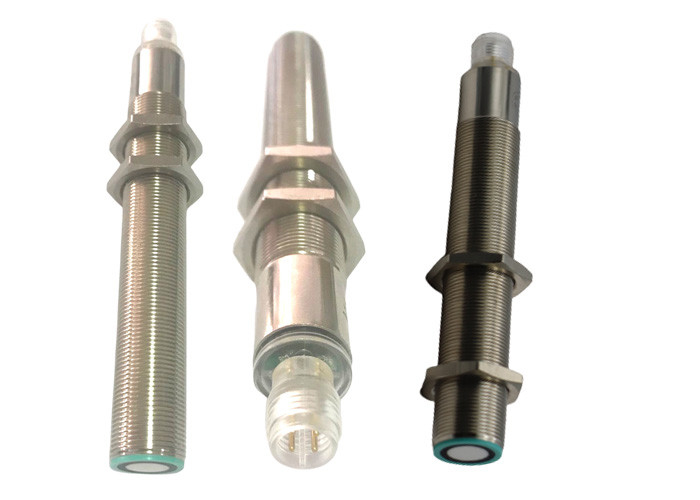

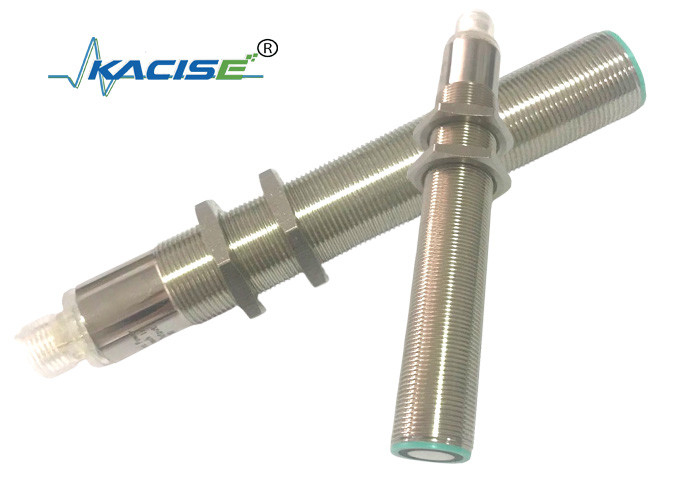

Name: RS485 Output Fluid Level Meter Beer Tank Liquid Level Measurement Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: M18 KUS1000
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

RS485 Output Fluid Level Meter Beer Tank Liquid Level Measurement Sensor

RS485 Liquid Level Measurement Sensor

Beer Tank Fluid Level Meter

24VDC Fluid Level Meter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

M18 KUS1000

Request A Quote

RS485 Output Fluid Level Meter Beer Tank Liquid Level Measurement Sensor

Product Details

Product:

Ultrasonic Distance Sensor

Detection Range:

50mm~1000mm

Transducer Frequency:

40KHZ

Operating Voltage:

24VDC

Limit Working Voltage:

3.6VDC~30VDC

IP Grade:

IP67

Output:

RS232/RS485

Highlight:

RS485 Liquid Level Measurement Sensor

Beer Tank Fluid Level Meter

24VDC Fluid Level Meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Corrosion Resistant Capacitive Level Transmitter With NPN/PNP Output Is Used For Level Monitoring In Laboratory Reactors

Get Best Price

Video

KLD800 Series 80G Radar Level Gauge PTFE Antenna Size Small Blind Spot

Get Best Price

Video

0.1m~3m Capacitive Water Level Sensor High Performance And Wide Range

Get Best Price

1m Liquid Tank Level Sensor IP67 Fluid Level Meter RS485 Output

Get Best Price

86--17719566736

Contact Now

Product Description

RS485 Output Fluid Level Meter Beer Tank Liquid Level Measurement Sensor

Product Specifications

Attribute	Value
Product	Ultrasonic Distance Sensor
Detection Range	50mm~1000mm
Transducer Frequency	40KHZ
Operating Voltage	24VDC
Limit Working Voltage	3.6VDC~30VDC
IP grade	IP67
Output	RS232/RS485

Product Overview

Low-cost ultrasonic liquid level meter with RS485 output signal, designed for precise measurement in beer tanks and other liquid containers.

Technical Parameters

General Specifications

Sensing range	100...1000 mm
Unusable area	0...100 mm
Standard target plate	100 mm x 100 mm
Transducer frequency	approx.220 kHz
Response delay	approx. 50 ms

Electrical Specifications

Operating voltage UB	15...30 V DC, ripple 10 %SS
No-load supply current I0	≤ 45 mA

Output Specifications

Output type	1 switch output E4, NPN NO/NC, programmable
Rated operating current Ie	200 mA, short-circuit/overload protected
Default setting	Switching point A1:70mm Switching point A2: 800mm
Voltage drop	≤ 2.5 V
Repeat accuracy	≤1 %

Dimensions

Electronic Interface and Signal Definition

Sensor Function Description

The ultrasonic sensor features a switch output with two teachable switching points. These are set by applying the supply voltage - UB or + UB to the TEACH-IN input for at least 1 second. LEDs indicate whether the sensor has recognized the target during the TEACH-IN procedure.

TEACH-IN Modes

Window mode (normally-open/normally-closed)
Switching point mode
Large hysteresis interval mode
Object detection presence mode

Installation Conditions

If installed in environments below 0℃, proper protective measures must be taken. When mounting in a through hole using steel nuts, fix at the middle of the housing thread.
