Name: DN32-DN6000 Clamp On Ultrasonic Flow Meter with Wall Mounted Bi-directional Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUFS2000
Price: 206.00 USD
Availability: InStock

Home > Products > Ultrasonic Flow Meter >

DN32-DN6000 Clamp On Ultrasonic Flow Meter with Wall Mounted Bi-directional Measurement

Clamp On Water Flow Meter Sensor

Wall Mounted Ultrasonic Flowmeter

DN32 Water Flow Meter Sensor

Place of Origin:

China

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUFS2000

Document:

KUF2000 clamp on ultrasonic...v1.pdf

Request A Quote

Product Details

Type Of Liquid:

Single Liquid Can Transmit Sound Wave. Such As Water, Sea Water, Sewage, Oil, Chemicals , Alcohol, Etc

Pipe Material:

Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed

Signal Output:

1 Way 4-20mA Output(impedance 0~1K, Accuracy 0.1%) 1 Way OCT Pulse Output( Pulse Width 6 ~ 1000ms) 1 Way Relay Output

Interface:

RS485, Support MODBUS

Power Supply:

DC8~36V Or AC85~264V

Accuracy:

≤1%

Velocity Range:

0~±10m/s, Bi-directional Measurement

Pipe Size:

DN32~DN6000

Temperature:

- 30~160℃

Highlight:

Clamp On Water Flow Meter Sensor

Wall Mounted Ultrasonic Flowmeter

DN32 Water Flow Meter Sensor

Payment & Shipping Terms

Minimum Order Quantity

Price

186~226USD/pc

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

100+

KUFS2000C Explosion Proof Clamp On Ultrasonic Flow Meter with Bi-directional Measurement for DN32-DN6000 Pipes

Get Best Price

Wireless Battery Operated Portable Ultrasonic Flow Meter with High Flow Accuracy

Get Best Price

High Accuracy ±1% Portable Ultrasonic Flow Meter with RS485 Modbus Communication for Digital Water Flow Measurement

Get Best Price

Ultrasonic Clamp On Flow Meter with Non-invasive Measurement for DN32~6000 Pipes and RS485 Modbus

Get Best Price

Contact Now

Product Description

KUF2000 Series Clamp On Ultrasonic Flow Meter

Introduction

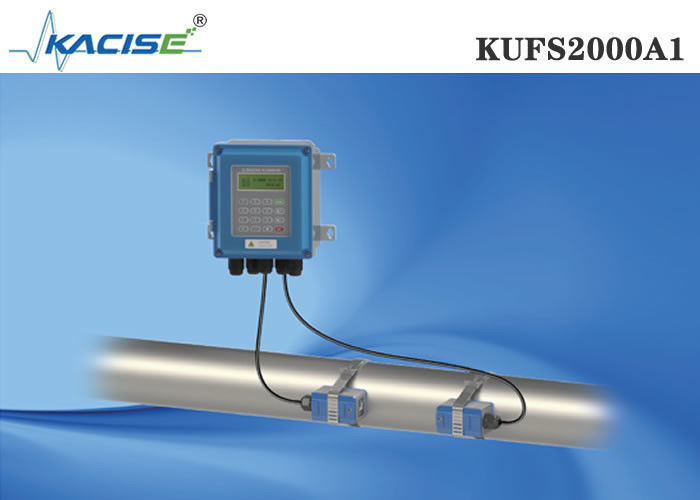

KUF2000 series clamp on ultrasonic flow meter consists of the meter and clamp on sensor.
The clamp on ultrasonic flow meter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.

The KUFS2000flow meter can be installed on the wall or in instrument box, protection grade is IP67.
Clamp on sensors are fixed on the pipe by steel belt. Suitable for pipe sizes from DN32mm to DN6000mm.

Working Condition

	Main Unit	Sensor
Protection	IP65	IP68
Humidity	≤85%RH	IP68
Temperature	-20~60℃	-30~160℃

Basic Parameters

Accuracy	≤1%
Velocity Range	0~±10m/s, Bi-directional measurement
Pipe Size	DN32~DN6000
Temperature	-30~160℃
Type of Liquid	Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
Pipe Material	Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed
Signal Output	1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output
Signal Input	3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface	RS485, support MODBUS
Data Storage	SD card regularly store the pre-set results (optional)
Power Supply	DC8~36V or AC85~264V

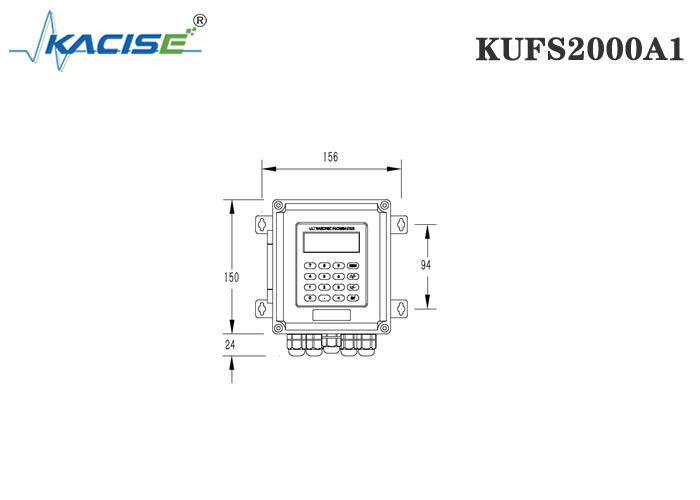

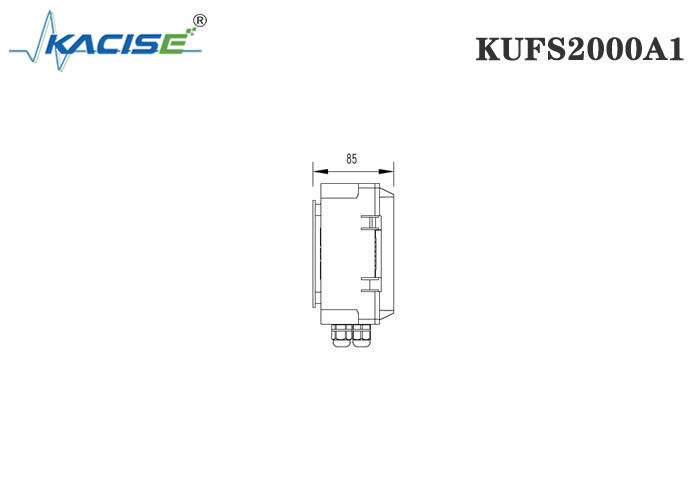

Dimension

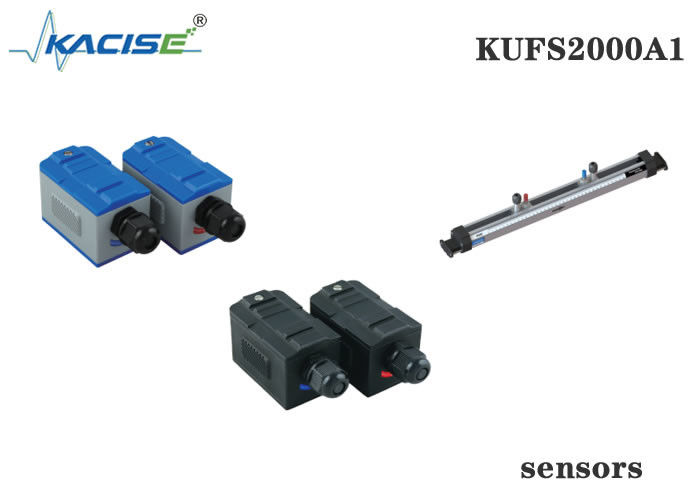

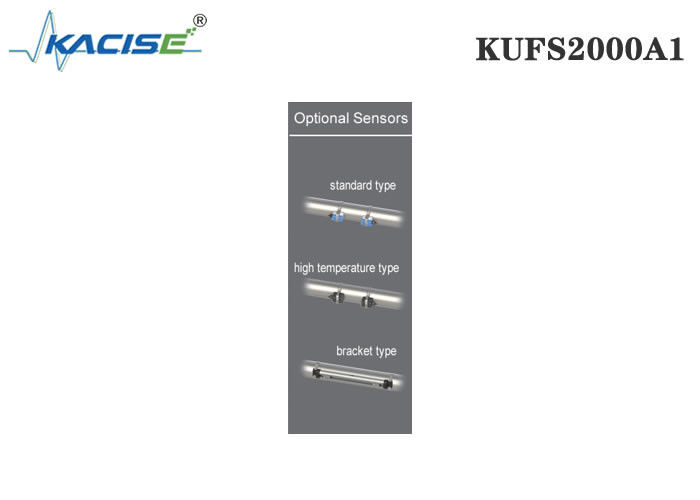

Standard Clamp On Sensor

Built-in magnet, easy to be absorbed on pipe
IP68
Measuring range: DN32~DN6000
Temperature range: - 30~90℃

Type	Model	Measuring Range	Temperature	Dimension
Small Size	TS-2	DN32~DN100	- 30~90℃	45×25×28mm
Middle Size	TM-1	DN50~DN700	- 30~90℃	64×39×44mm
Large Size	TL-1	DN300~DN6000	- 30~90℃	97×54×53mm

High Temperature Clamp On Sensor

Built-in magnet, easy to be absorbed on pipe
IP68
Measuring range: DN32~DN6000
Temperature range: - 30~160℃

Type	Model	Measuring Range	Temperature	Dimension
Small Size	TS-2-HT	DN32~DN100	- 30~160℃	45×25×28mm
Middle Size	TM-1-HT	DN50~DN700	- 30~160℃	64×39×44mm
Large Size	TL-1-HT	DN300~DN6000	- 30~160℃	97×54×53mm

Mounting Bracket Clamp On Sensor

Improve installation efficiency and accuracy
IP68
Measuring range: DN32~DN700
Temperature range: - 40~160℃

Type	Model	Measuring Range	Temperature	Dimension
Standard Small Size Sensor	HS	DN32~DN100	- 40~90℃	318×59×85mm
Standard Middle Size Sensor	HM	DN50~DN300	- 40~90℃	568×59×85mm
Extended (bracket only)	EB-1	＞DN300	- 40~90℃	88×59×49mm
High Temp. Small Size Sensor	HS-HT	DN32~DN100	- 40~160℃	318×59×145mm
High Temp. Middle Size Sensor	HM-HT	DN50~DN300	- 40~160℃	568×59×145mm
Extended (bracket only)	EB-1-HT	＞DN300	- 40~160℃	88×59×49mm

Ordering Information
