| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUFF2000 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 304~318USD/pc |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Accuracy: | ≤1% | Velocity Range: | 0~±10m/s, Bi-directional Measurement |
|---|---|---|---|
| Pipe Size: | DN32~DN6000 | Temperature: | - 30~160℃ |
| Type Of Liquid: | Single Liquid Can Transmit Sound Wave. Such As Water, Sea Water, Sewage, Oil, Chemicals , Alcohol, Etc | Pipe Material: | Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed |
| Signal Output: | 1 Way 4-20mA Output(impedance 0~1K, Accuracy 0.1%) 1 Way OCT Pulse Output( Pulse Width 6 ~ 1000ms) 1 Way Relay Output | Interface: | RS485, Support MODBUS |
| Power Supply: | Default DC8~36V. AC85~264V, Water Proof Power Adapter Is Optional. | ||
| High Light: | Clamp On Ultrasonic Liquid Flow Meter,Fixed Ultrasonic Flow Meter,Liquid Ultrasonic Flow Meter |
||
KUF2000 Series Clamp On Ultrasonic Flow Meter
Introduction
KUF2000 series clamp on ultrasonic flow meter consists of the meter and clamp on sensor.
The clamp on ultrasonic flow meter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.

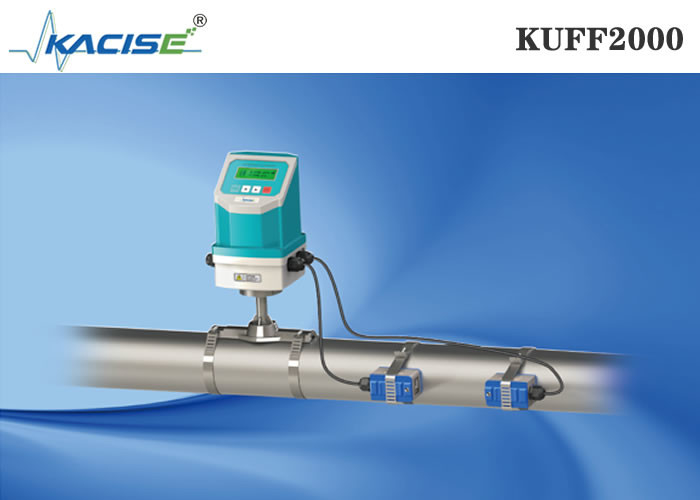

Both the main unit and sensor of the KUFF2000 flow meter are fixed on the pipe. Default is IP65, IP68 is optional.
Clamp on sensors are installed on the pipe. Suitable for pipe sizes from DN32mm to DN6000mm.
Feature
High Accuracy 1%
Wide measuring range
Several types transducer for selection, pipe size from Dn32 to Dn1600
High Reliability
Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability.
Strong Anti-interference
Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc.
Powerful Recording Function
Automatically record the following data:
1. The totalizer data of the last 512 days/128 months/10 years
2. The time and corresponding flow rate of the last 6 4 times of power on and off events
3. The working status of the last 32 days
Support Heat Measurement
Connect the temperature transducer ,can finish the heat/energy measurement
Working Condition
| Main Unit | Sensor | |
| Protection | IP65 | IP68 |
| Humidity | ≤85%RH | |
| Temperature | -20~60℃ | -30~160℃ |
Basic Parameters
| Accuracy | ≤1% |
| Velocity Range | 0~±10m/s, Bi-directional measurement |
| Pipe Size | DN32~DN6000 |
| Temperature | - 30~160℃ |
| Type of Liquid | Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc |
| Pipe Material | Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed |
| Signal Output |
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output |
| Signal Input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Data Storage | SD card regularly store the pre-set results (optional) |
| Power Supply | DC8~36V or AC85~264V |

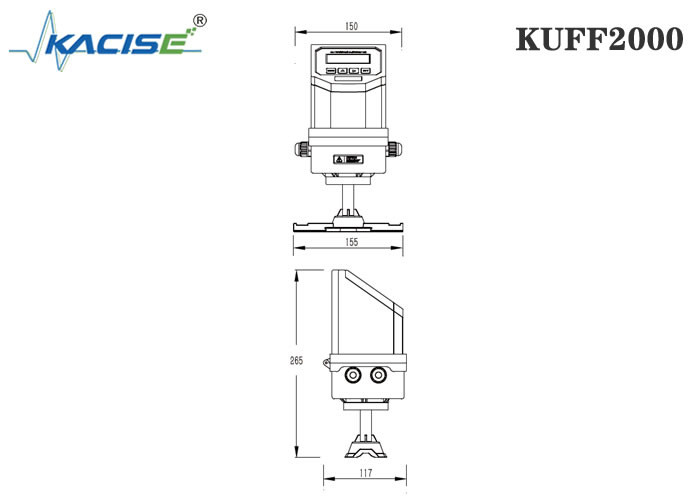

Dimension

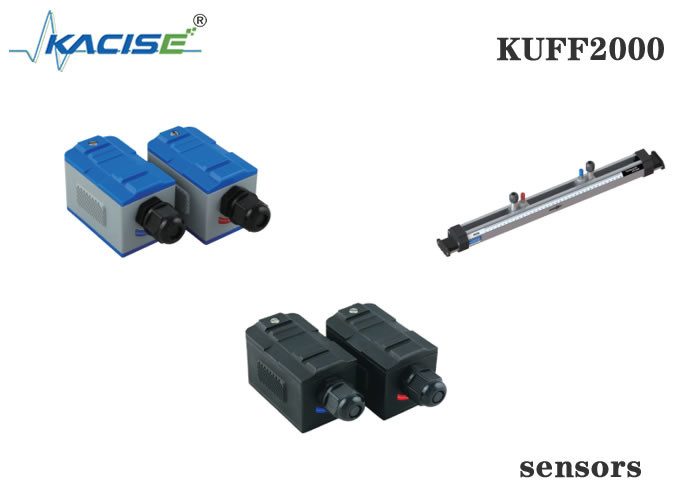

| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2 | DN32~DN100 | - 30~90℃ | 45×25×28mm |
| Middle Size | TM-1 | DN50~DN700 | - 30~90℃ | 64×39×44mm |
| Large Size | TL-1 | DN300~DN6000 | - 30~90℃ | 97×54×53mm |
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2-HT | DN32~DN100 | - 30~160℃ | 45×25×28mm |
| Middle Size | TM-1-HT | DN50~DN700 | - 30~160℃ | 64×39×44mm |
| Large Size | TL-1-HT | DN300~DN6000 | - 30~160℃ | 97×54×53mm |
Mounting Bracket Clamp On Sensor
| Type | Model | Measuring Range | Temperature | Dimension |
| Standard Small Size Sensor | HS | DN32~DN100 | - 40~90℃ | 318×59×85mm |
| Standard Middle Size Sensor | HM | DN50~DN300 | - 40~90℃ | 568×59×85mm |
| Extended (bracket only) | EB-1 | ＞DN300 | - 40~90℃ | 88×59×49mm |
| High Temp. Small Size Sensor | HS-HT | DN32~DN100 | - 40~160℃ | 318×59×145mm |
| High Temp. Middle Size Sensor | HM-HT | DN50~DN300 | - 40~160℃ | 568×59×145mm |
| Extended (bracket only) | EB-1-HT | ＞DN300 | - 40~160℃ | 88×59×49mm |
Ordering Information
