| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUFM2000 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 238~252USD/pc |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Accuracy: | ≤1% | Velocity Range: | 0~±10m/s, Bi-directional Measurement |
|---|---|---|---|
| Pipe Size: | DN32~DN6000 | Temperature: | - 30~160℃ |
| Type Of Liquid: | Single Liquid Can Transmit Sound Wave. Such As Water, Sea Water, Sewage, Oil, Chemicals , Alcohol, Etc | Pipe Material: | Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed |
| Signal Output: | 1 Way 4-20mA Output(impedance 0~1K, Accuracy 0.1%) 1 Way OCT Pulse Output( Pulse Width 6 ~ 1000ms) 1 Way Relay Output | Interface: | RS485, Support MODBUS |
| Power Supply: | DC8~36V | ||
| High Light: | KUFM2000 Ultrasonic Flow Transducer,Clamp On Type Ultrasonic Flow Meter,DN32 Ultrasonic Flow Meter |
||
KUF2000 Series Clamp On Ultrasonic Flow Meter
Introduction

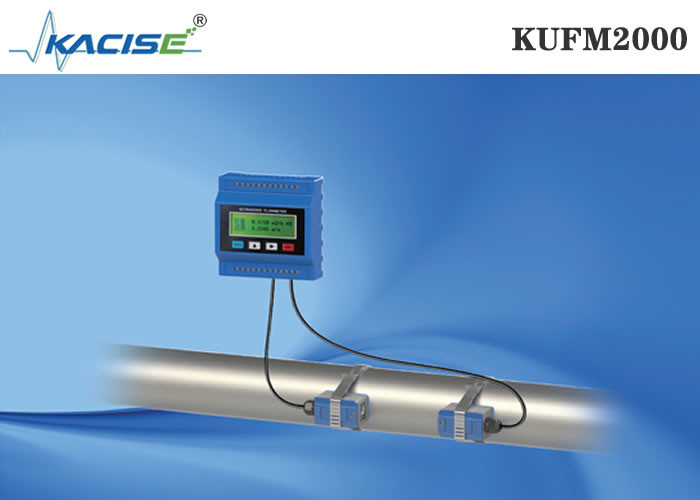

KUF2000 series clamp on ultrasonic flow meter consists of the meter and clamp on sensor.
The clamp on ultrasonic flow meter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.
The KUFM2000 flow meter module has small volume, overall function and low cost.

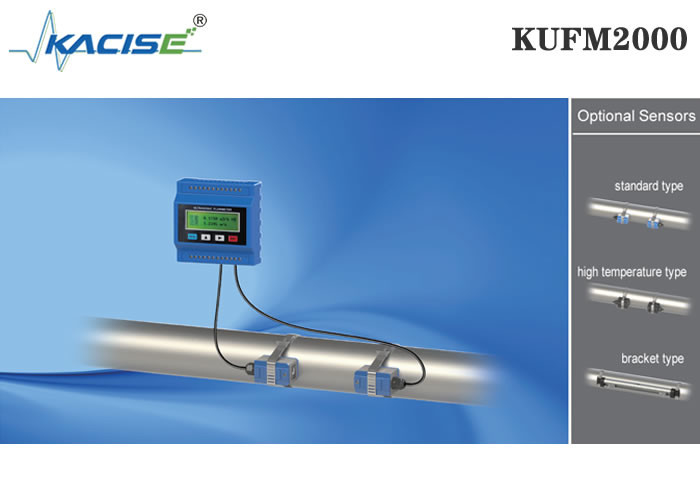

Main unit uses lead rail installation. Clamp on sensors are installed on the pipe.
Suitable for pipe sizes from DN32mm to DN6000mm.
Working Condition
| Main Unit | Sensor | |
| Protection | IP65 | IP68 |
| Humidity | ≤85%RH | |
| Temperature | -20~60℃ | -30~160℃ |
Basic Parameters
| Accuracy | ≤1% |
| Velocity Range | 0~±10m/s, Bi-directional measurement |
| Pipe Size | DN32~DN6000 |
| Temperature | - 30~160℃ |
| Type of Liquid | Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc |
| Pipe Material | Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed |
| Signal Output |
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output |
| Signal Input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Data Storage | SD card regularly store the pre-set results (optional) |
| Power Supply | DC8~36V |
Advantage
1. No need to cut off the pipeline, no pressure drop.
2. Easy installation process, simply clamp the transducers on the pipe surface.
3. High accuracy within ±1%.
4. Small size and low cost, suitable for usage in large quantity.
5. Multiple output of 4-20mA, OCT pulse and relay; RS485 interface, support Modbus protocol.
6. Achieve heat measurement by connecting 3-wired heat transducers PT100.

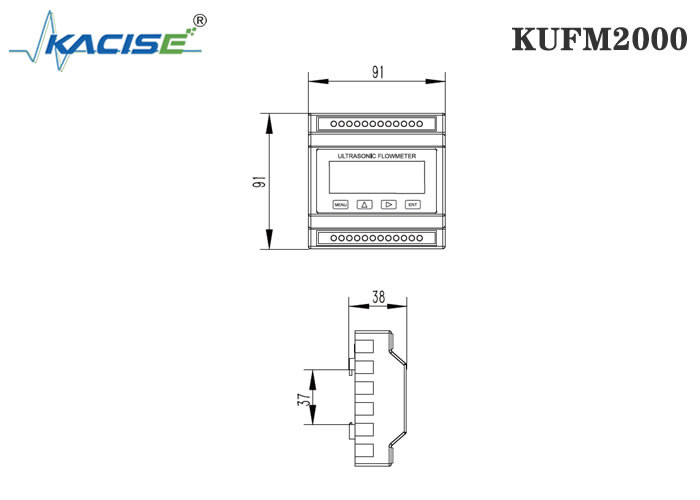

Dimension
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2 | DN32~DN100 | - 30~90℃ | 45×25×28mm |
| Middle Size | TM-1 | DN50~DN700 | - 30~90℃ | 64×39×44mm |
| Large Size | TL-1 | DN300~DN6000 | - 30~90℃ | 97×54×53mm |
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2-HT | DN32~DN100 | - 30~160℃ | 45×25×28mm |
| Middle Size | TM-1-HT | DN50~DN700 | - 30~160℃ | 64×39×44mm |
| Large Size | TL-1-HT | DN300~DN6000 | - 30~160℃ | 97×54×53mm |

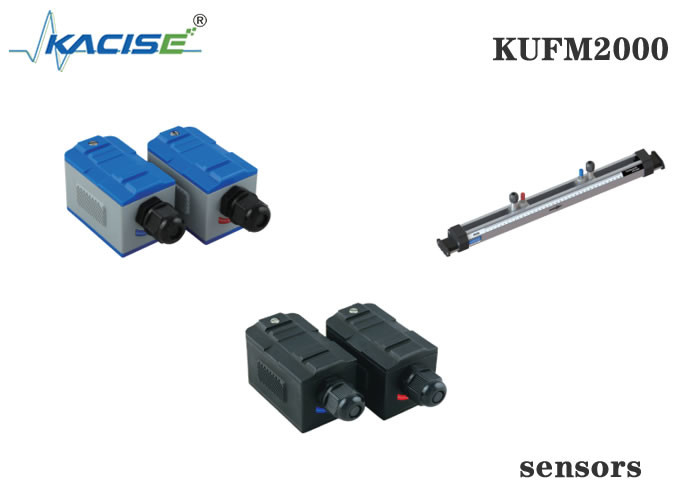

Mounting Bracket Clamp On Sensor
| Type | Model | Measuring Range | Temperature | Dimension |
| Standard Small Size Sensor | HS | DN32~DN100 | - 40~90℃ | 318×59×85mm |
| Standard Middle Size Sensor | HM | DN50~DN300 | - 40~90℃ | 568×59×85mm |
| Extended (bracket only) | EB-1 | ＞DN300 | - 40~90℃ | 88×59×49mm |
| High Temp. Small Size Sensor | HS-HT | DN32~DN100 | - 40~160℃ | 318×59×145mm |
| High Temp. Middle Size Sensor | HM-HT | DN50~DN300 | - 40~160℃ | 568×59×145mm |
| Extended (bracket only) | EB-1-HT | ＞DN300 | - 40~160℃ | 88×59×49mm |
