| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUFH2000A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 330USD/pc |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Theory: | Ultrasonic Time Gap | Accuracy: | ±1% |
|---|---|---|---|
| Display: | 4 X 8 Or 4 X 16 Character Matrix Backlight LCD, Support English, Italian, Chinese. | Signal Output: | 1 Channel Pulse Output OCT (pulse Width Is Adjustable Between 6~1000ms, 200ms(default). |
| Digital Port: | RS232 (KUFH2000A) | Pipe Material: | Steel, Cast Iron Cement, Copper, PVC, Aluminum, Glass, Etc |
| Inner DN: | 15~6000mm | Media: | Single Liquid Can Transmit Sound Wave, Such As Water, Sewage, Oil, Chemicals, Plant Effluent, Beverage, Ultra-pure Liquids, Etc. |
| Temperature: | -30~160℃ | Turbidity: | 10000pm Not So Much Baubles |
| High Light: | Handheld Water Flow Meter,KUFH2000A Ultrasonic Flow Meter,Water Test Portable Ultrasonic Flowmeter |
||
KUFH2000 Series Handheld Ultrasonic Flow Meter
Introduction
KUFH2000 handheld ultrasonic flow meter is ideal for flow surveys and closed pipe application where
non-invasive measurement of liquids is required.
The advantages of high measurement accuracy, good consistency, battery power supply, easy operation
and portability make this meter the smallest and lightest flow meter in domestic and a significant portable
ultrasonic flow meter.

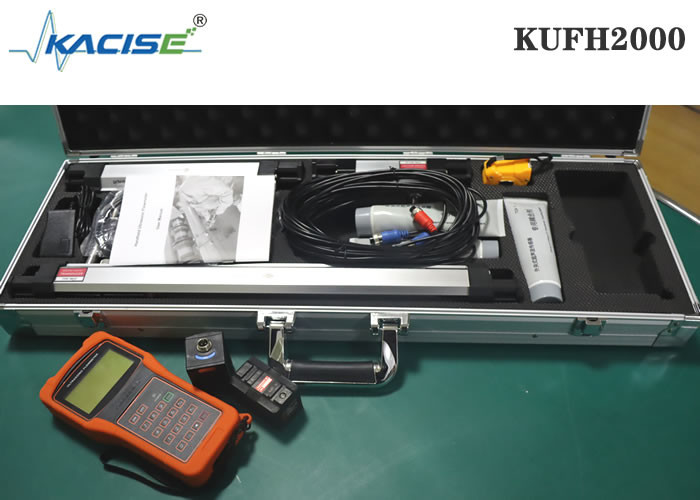

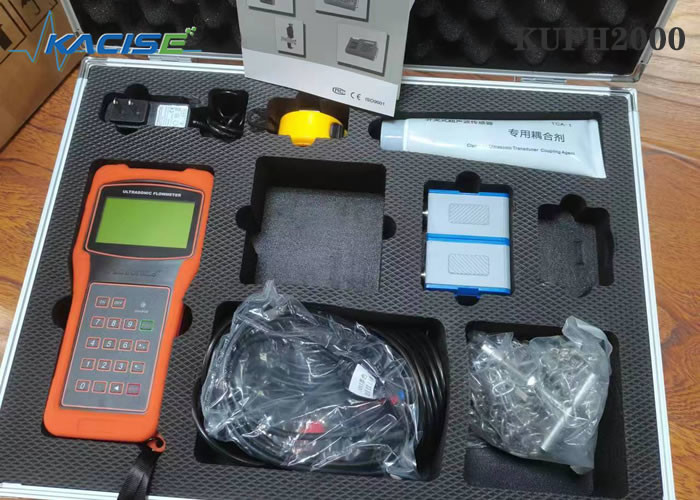

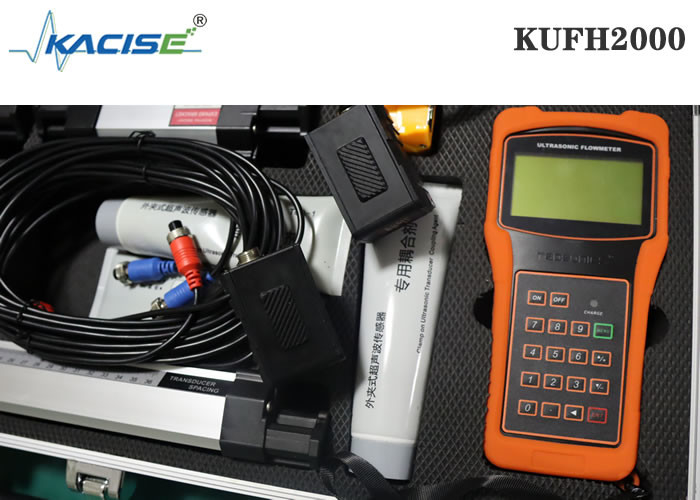

Description of parts
Features
High accuracy
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy:±1%
Wide range of flow rate and pipe diameter
Suitable for the pipe with DN15 to DN6000
Rechargeable power supply
Built-in NIMH rechargeable battery, which can support 12 hours of continuous work. When charging by
power adapter, it can realize the uninterrupted measurement.
Non-intrusive measuring
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Large LCD display
Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
Built-in data logger
Built-in 24K data logger, store over 2000 lines measuring data

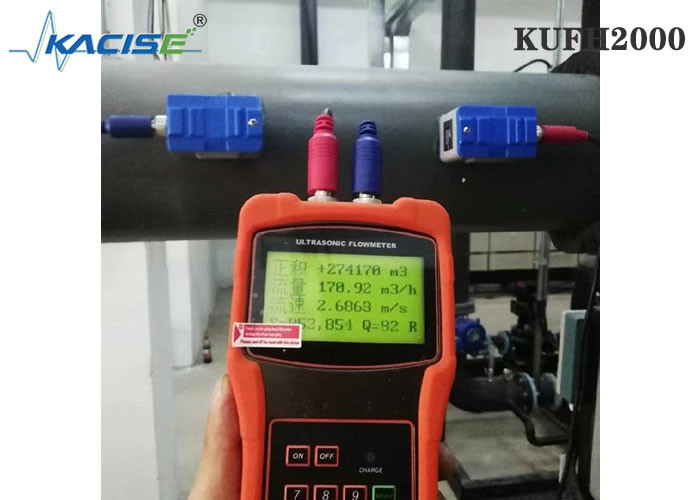

Installation
Sensor selection
Parameters
| Parts | Parameters in detail | |
| Host part | Theory | Ultrasonic time gap |
| Accuracy | ±1% | |
| Display |
4 x 8 or 4 x 16 Character matrix backlight LCD, support English, Italian, Chinese. |
|
| Signal output |
1 channel pulse output OCT (pulse width is adjustable between 6~1000ms, 200ms(default). |
|
| Digital port |
RS232 (KUFH2000A) / RS485(KUFH2000B) support Mod-bus protocol and support firmware update |
|
| Suit pipe | Pipe material | Steel, cast iron cement, copper, PVC, Aluminum, glass, etc |
| Inner DN | 15~6000mm | |
| Sensor position |
It’s better the sensor fix at the position of at least 10D far away of upstream, or 5D far away of upstream, at least 20D far away from the pump outlet(D is the inner diameter of the pipe) |
|
| Suit flow | Media |
Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc. |
| Temperature | -30~160℃ | |
| Turbidity | 10000pm not so much baubles | |
| Flow speed | 0~±10m/s | |
| Environment | temperature | Host: -20~60℃； Sensor: -30~160℃ |
| Humidity | Host: 85%RH; Flow sensor: IP67 | |
| Power supply |
3 built-in 1.2V capacity rechargeable Ni-MH battery 2000mAH,full of electricity sustainable work more than 12 hours, power adapter: AC90 ~260V, which can realize continuous measurement |
|
| consumption | 1.5W | |
| shell material | Inflaming retarding ABS | |
| Host part weight | 390g | |
Ordering information
