Name: KDF2200 Portable Ultrasonic Doppler Flow Meter For Velocity Flow Rate Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KDF2000
Price: 1300 USD
Availability: InStock

Home > products > Ultrasonic Flow Meter >

KDF2200 Portable Ultrasonic Doppler Flow Meter For Velocity Flow Rate Measurement

Portable Ultrasonic Flow Meter

Velocity Ultrasonic Doppler Flow Meter

12V Doppler Flow Meter

Place of Origin:

China

Brand Name:

Kacise

Certification:

Model Number:

KDF2000

Document:

KDF2000 Ultrasonic Doppler ....1.pdf

Request A Quote

KDF2200 Portable Ultrasonic Doppler Flow Meter For Velocity Flow Rate Measurement

Product Details

Power Supply:

12V Rechargeable Lithium Battery

Power Consumption:

<2W

Liquid Level:

0-10m

Flow Rate:

0-5m/s

Instantaneous Flow:

0-999999999m³/h

Cumulative Flow:

0-999999999m

Temperature:

-10-70℃

Resolution:

0.001m

Material:

PVC

Protection Grade:

IP65 (standard) / IP67

Output Signal:

RS485 /4-20mA Analog Output (standard) HART /NB. GPRS.LORA (optional)

Installation:

Handheld

Highlight:

Portable Ultrasonic Flow Meter

Velocity Ultrasonic Doppler Flow Meter

12V Doppler Flow Meter

Payment & Shipping Terms

Minimum Order Quantity

Price

1300USD/pc

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

Portable Doppler Flowmeter With USB Data Export Function

Get Best Price

Portable Doppler Flowmeter Supporting Multilingual Display

Get Best Price

IP65/IP67 Protection Grade Portable Doppler Flowmeter with Data Storage Function and 12V Rechargeable Lithium Battery

Get Best Price

12V Rechargeable Lithium Battery Powered Portable Handheld Flowmeter with IP67 Rating and RS485 Output

Get Best Price

86--17719566736

Contact Now

Product Description

KDF2000 Series Ultrasonic Doppler Flow Meter
KDF2200 Portable Ultrasonic Doppler Flow Meter For Velocity Flow Rate Measurement 0

Introduction

Doppler flow meter is a kind of instrument that uses ultrasonic Doppler principle to measure flow. Doppler flow meter has many outstanding advantages. It does not need to cut the pipeline to install pipe-segment sensors like electromagnetic flowmeter. There is no need to use a shut-off device, let alone install a fixed weir and groove to control the flow of water from a fixed outlet. It can measure both clear water and muddy water, and it can also solve the problem of "non-full pipe measurement".

KDF2000 series flow meter is a product that measures the velocity and flow of water in natural waters, channels, or pipelines.

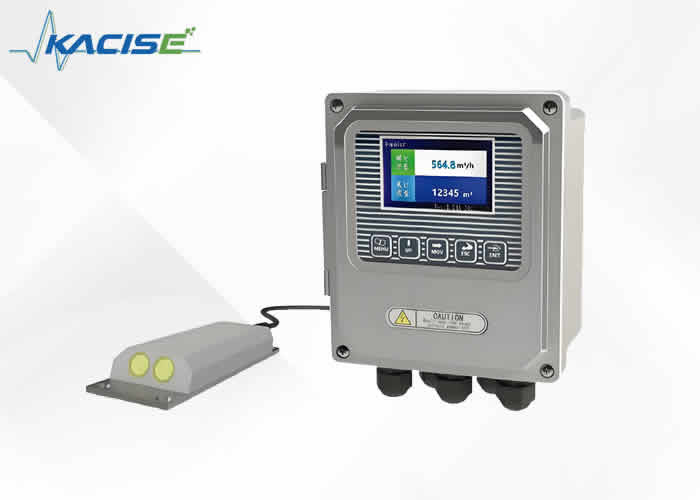

The flow meter is divided into two parts: the sensor and the host, which are connected by a cable.

Application

Urban underground pipe network
Urban underground drainage
Industrial enterprise drainage
Hospital wastewater
Mining and metallurgy
Agricultural irrigation water
Aquaculture
Natural river detection

KDF2200 Portable Ultrasonic Doppler Flow Meter For Velocity Flow Rate Measurement 1
It is easy to carry, suitable for temporary measurement and detection of parameters, such as velocity and flow rate, in addition to basic functions, it has data storage, data statistics, generation of historical curve graphs, and USB drive-free data export functions like U disk, and supports display interface self-editing function, and supports customization of special functions in multiple languages.

Technical Parameter

Host	Power Supply	12V rechargeable lithium battery
	Power Consumption	<2W
	Range	Liquid level: 0-10m Flow rate: 0-5m/s Instantaneous flow: 0-999999999m³/h Cumulative flow: 0-999999999m³ Temperature: -10-70℃
	Resolution	Liquid level: 0.001m Flow rate 0.001mm/s Instantaneous flow: 0.1m³/h Temperature: 0.1℃
	Material	PVC
	Protection Grade	IP65 (standard) / IP67
	Output Signal	RS485 /4-20mA analog output (standard) HART /NB. GPRS.LORA (optional)
	Installation	Handheld
Sensor	Power Supply	9-24V
	Protection Grade	IP68
	Temperature	-10-60℃
	Material	PVC
	Cable Length	10m (longer cable optional)
	Cable Material	Polyurethane
	Installation	Bracket submersible installation

KDF2300 Compact Low Power Consumption Doppler Flow Meter
KDF2200 Portable Ultrasonic Doppler Flow Meter For Velocity Flow Rate Measurement 2
Digital electrode: IP68 digital electrode with low power consumption, supports reading of parameters such as temperature, liquid level, instantaneous flow, cumulative flow, flow rate, etc. With GPRS remote transmission module and high-power IP68 waterproof battery, wireless installation can be realized, which is very suitable for urban underground Installation and monitoring of pipeline network, groundwater, mountain rivers and lakes.

Host/ Sensor	Power Supply	9-24V
	Power Consumption	Instantaneous power consumption for uploading measurement≤ 2W Standby power consumption ≤1.5w
	Output Signal	RS485 GPRS
	Protection Grade	IP68
	Temperature	-10-60℃
	Material	PVC + Stainless Steel (import pressure core)
	Cable Length	10m (longer cable optional)
	Cable Material	Polyurethane
	Installation	Bracket submersible installation
