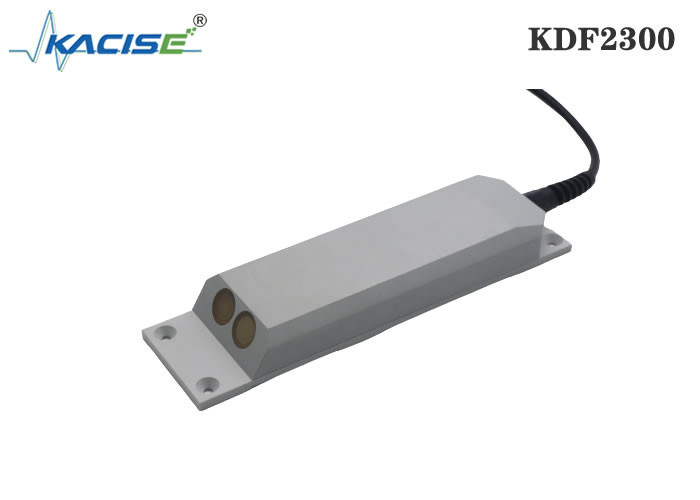

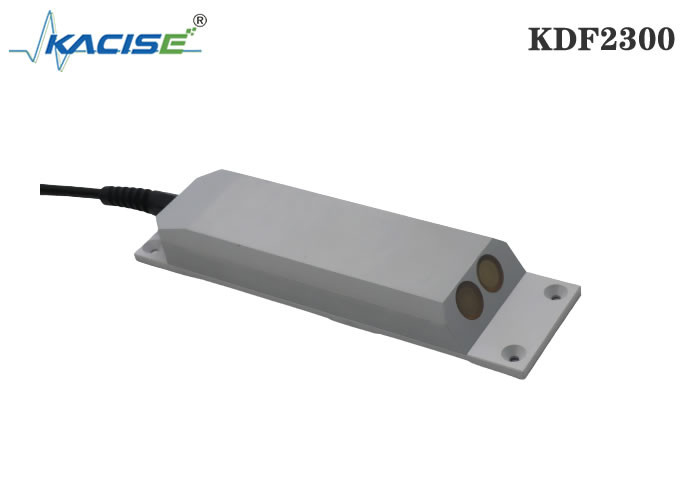

Name: KDF2300 Compact Ultrasonic Doppler Flow Meter With GPRS Remote Transmission Module
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KDF2300
Price: 1200 USD
Availability: InStock

Home > products > Ultrasonic Flow Meter >

KDF2300 Compact Ultrasonic Doppler Flow Meter With GPRS Remote Transmission Module

GPRS Remote Transmission Module Flow Meter

Compact Ultrasonic Doppler Flow Meter

IP68 Ultrasonic Flow Meter

Place of Origin:

China

Brand Name:

Kacise

Model Number:

KDF2300

Request A Quote

Product Details

Power Supply:

9-24V

Power Consumption:

Instantaneous Power Consumption For Uploading Measurement≤ 2W Standby Power Consumption ≤1.5w

Protection Grade:

IP65 (standard) / IP67

Cable Length:

10m (longer Cable Optional)

Temperature:

-10-60℃

Able Material:

Polyurethane

Output Signal:

RS485 GPRS

Installation:

Bracket Submersible Installation

Highlight:

GPRS Remote Transmission Module Flow Meter

Compact Ultrasonic Doppler Flow Meter

IP68 Ultrasonic Flow Meter

Payment & Shipping Terms

Minimum Order Quantity

Price

1200USD/pc

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

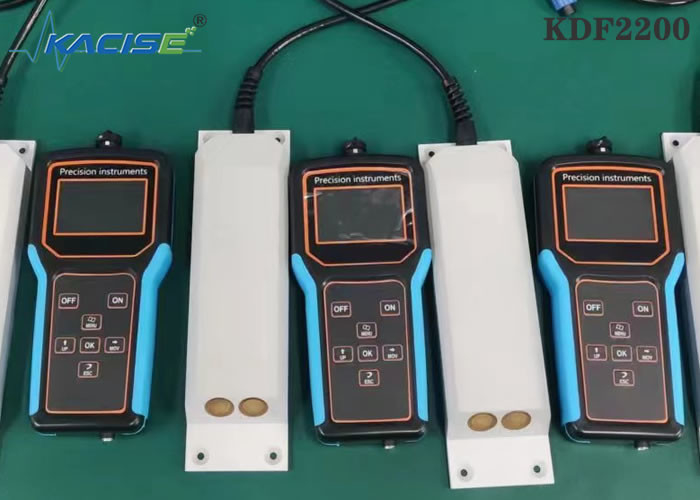

Portable Doppler Flowmeter With USB Data Export Function

Get Best Price

Portable Doppler Flowmeter Supporting Multilingual Display

Get Best Price

IP65/IP67 Protection Grade Portable Doppler Flowmeter with Data Storage Function and 12V Rechargeable Lithium Battery

Get Best Price

12V Rechargeable Lithium Battery Powered Portable Handheld Flowmeter with IP67 Rating and RS485 Output

Get Best Price

86--17719566736

Contact Now

Product Description

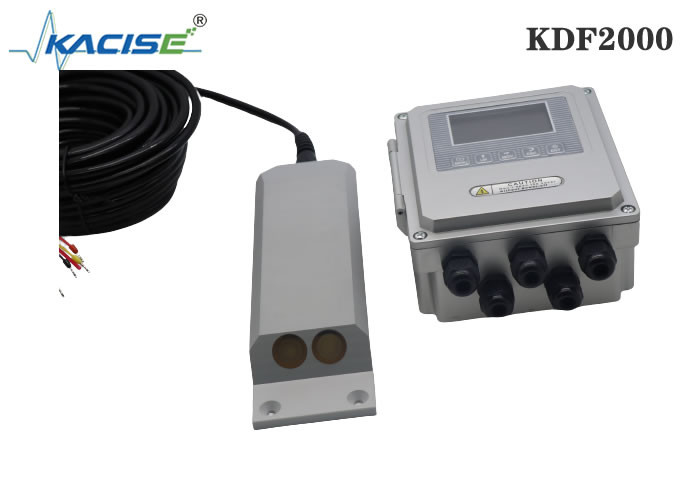

KDF2000 Series Ultrasonic Doppler Flow Meter

Introduction

Doppler flow meter is a kind of instrument that uses ultrasonic Doppler principle to measure flow. Doppler flow meter has many outstanding advantages. It does not need to cut the pipeline to install pipe-segment sensors like electromagnetic flowmeter. There is no need to use a shut-off device, let alone install a fixed weir and groove to control the flow of water from a fixed outlet. It can measure both clear water and muddy water, and it can also solve the problem of "non-full pipe measurement".

KDF2000 series flow meter is a product that measures the velocity and flow of water in natural waters, channels, or pipelines.

The flow meter is divided into two parts: the sensor and the host, which are connected by a cable.

Application

Urban underground pipe network
Urban underground drainage
Industrial enterprise drainage
Hospital wastewater
Mining and metallurgy
Agricultural irrigation water
Aquaculture
Natural river detection

KDF2300 Compact Ultrasonic Doppler Flow Meter With GPRS Remote Transmission Module 0

Technical Parameter

Host/ Sensor	Power Supply	9-24V
	Power Consumption	Instantaneous power consumption for uploading measurement≤ 2W Standby power consumption ≤1.5w
	Output Signal	RS485 GPRS
	Protection Grade	IP68
	Temperature	-10-60℃
	Material	PVC + Stainless Steel (import pressure core)
	Cable Length	10m (longer cable optional)
	Cable Material	Polyurethane
	Installation	Bracket submersible installation

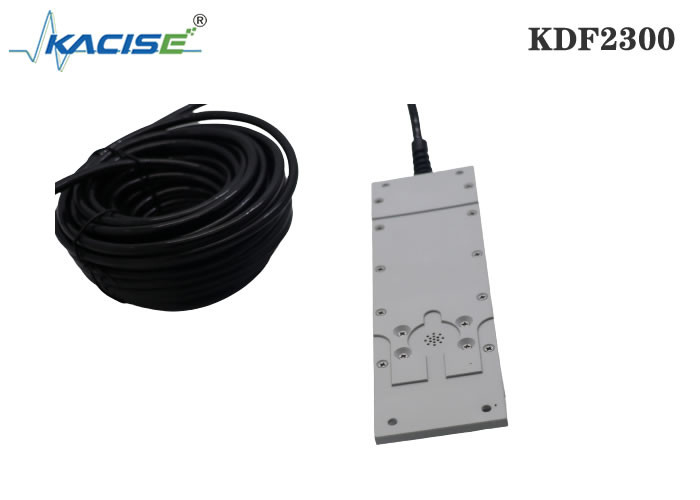

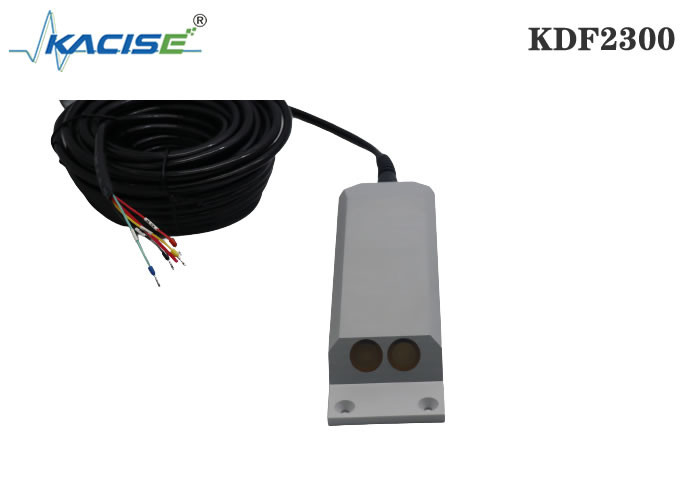

KDF2300 Compact Low Power Consumption Doppler Flow Meter
KDF2300 Compact Ultrasonic Doppler Flow Meter With GPRS Remote Transmission Module 1

Digital electrode: IP68 digital electrode with low power consumption, supports reading of parameters such as temperature, liquid level, instantaneous flow, cumulative flow, flow rate, etc. With GPRS remote transmission module and high-power IP68 waterproof battery, wireless installation can be realized, which is very suitable for urban underground Installation and monitoring of pipeline network, groundwater, mountain rivers and lakes.

Host/ Sensor	Power Supply	9-24V
	Power Consumption	Instantaneous power consumption for uploading measurement≤ 2W Standby power consumption ≤1.5w
	Output Signal	RS485 GPRS
	Protection Grade	IP68
	Temperature	-10-60℃
	Material	PVC + Stainless Steel (import pressure core)
	Cable Length	10m (longer cable optional)
	Cable Material	Polyurethane
	Installation	Bracket submersible installation
