| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUHM2100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 45USD/pc |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Nominal Diameter: | DN15/20/25/32/40 | Ambient Level: | Level A |
|---|---|---|---|
| Installation: | Horizontal/ Vertical Installation | Monitor: | 8 Digits |
| Length Of Temperature Sensor: | 1.5m | Accuracy Class: | Class 2 |
| Power Supply: | 3.6VDC | Battery Life: | >6 Years ( Lithium Battery) |
| IP Class: | IP 68 | Temperature Range: | (4--95) °C |
| High Light: | Accurate Measurement Ultrasonic Heat Meter,Anti Erosion Ultrasonic Heat Meter,DN15 Ultrasonic Thermal Energy Meter |
||

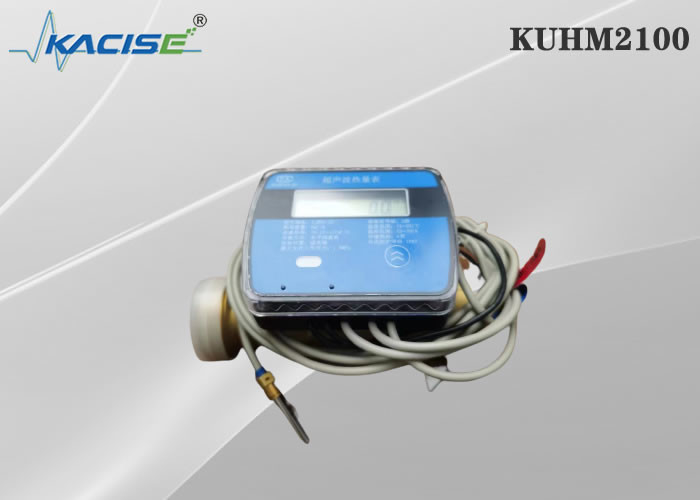

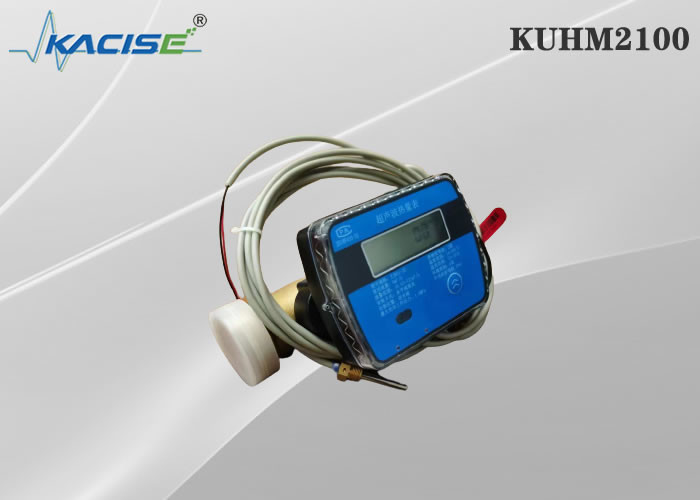

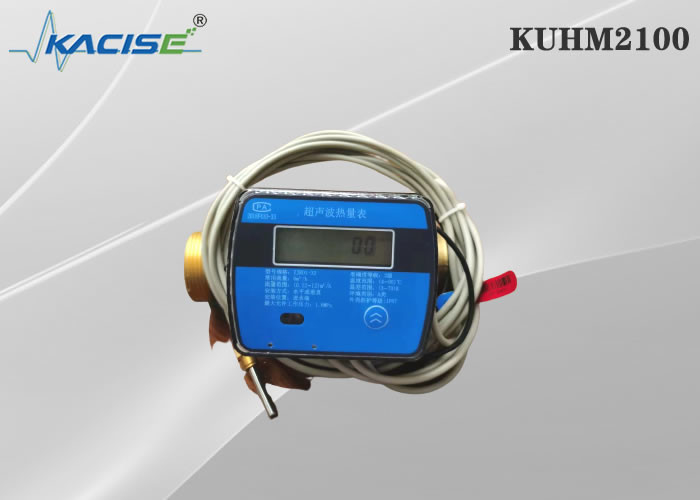

KUHM2100 Ultrasonic Heat Meter
Instruction
KACISE KUHM2100 series heat meters adopt most advanced non-magnetic technology and it features elegant appearance, accurate measurement, convenient management, steady operation, strong anti-erosion, and long using life, which is secure and economic.
It is widely used in the heat system with concentrated heat supplying management, separate household data collecting management.
Varies of communication modes are optional according to the users’ need.
Characteristics
| Nominal Diameter | DN15 | DN20 | DN25 | DN32 | DN40 |
| Dimension (Length mm) | 110 | 130 | 160 | 180 | 200 |
| Max flow (m3/h) | 3 | 5 | 7 | 12 | 20 |
| Norm flow(m3/h) | 1.5 | 2.5 | 3.5 | 6 | 10 |
| Min flow(m3/h) | 0.03 | 0.05 | 0.07 | 0.12 | 0.2 |
| Max flow reading | 999999.99(m3) | ||||
| Max heat reading | 99999999(KW·h) | ||||
| Power supply | 3.6VDC | ||||
| Battery life | >6 years ( Lithium battery) | ||||
| Accuracy class | Class 2 | ||||
| Communication mode | Infrared interface , M-BUS/RS485 ,lora wireless | ||||
| Press loss | ≤ 0.025 Mpa ( under normal flow) | ||||
| IP class | IP 68 | ||||
| Temperature range | (4--95) °C | ||||
| Temperature difference range | (3--70) k | ||||
| Starting temperature difference | 0.01k | ||||
| Temperature sensor | Pt 1000 | ||||
| Ambient temperature | +5°C -- +55°C | ||||
| Ambient level | Level A | ||||
| Installation | Horizontal/ vertical installation | ||||
| Monitor | 8 digits | ||||
| Length of temperature sensor | 1.5m | ||||
| Working current | 45uA | ||||
| Data storage | Store historical data up to last 24 months | ||||
Function
| Measure Heat. |
| Show supply/return water temperature and differential temperature. |
| Display pile flow measure and instantaneous flow measure. |
| Running time display. |
| Cold measure and display (for heat/cold Ultrasonic Heat Meter ). |
