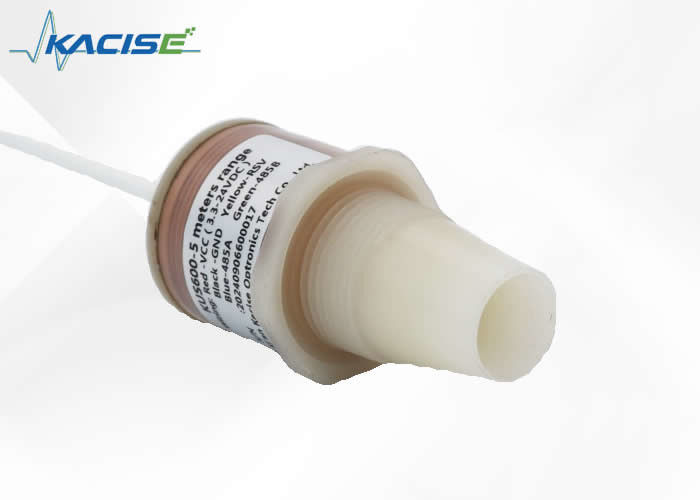

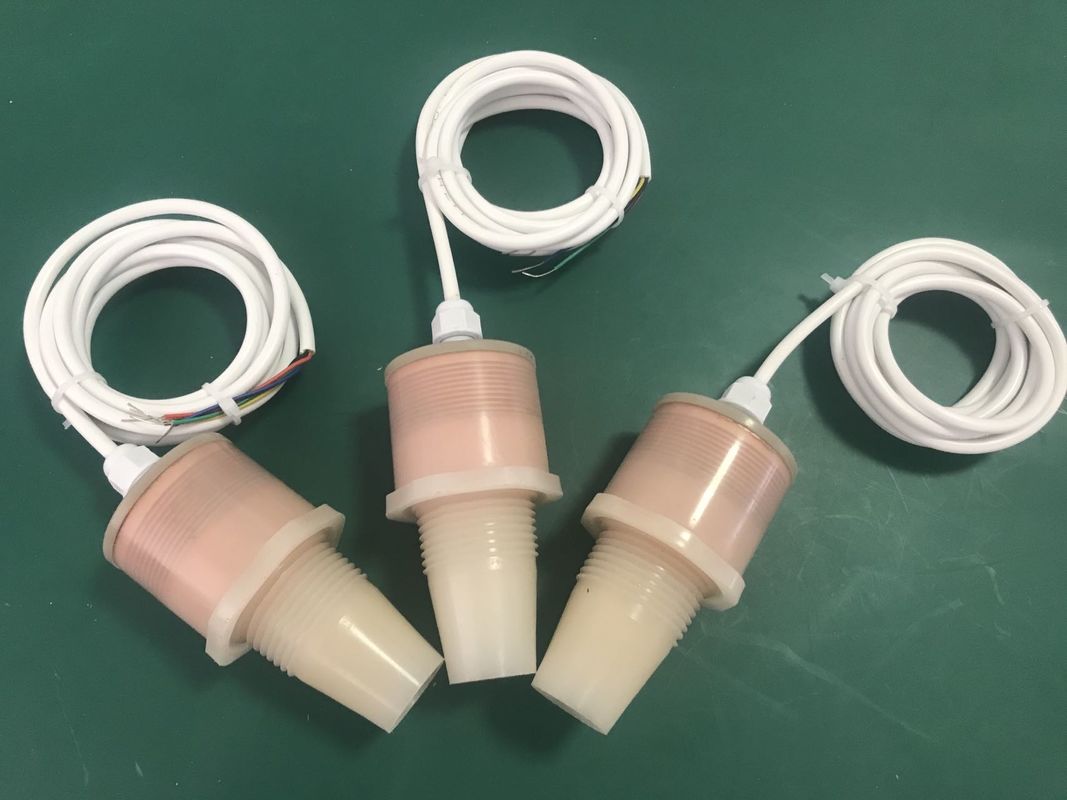

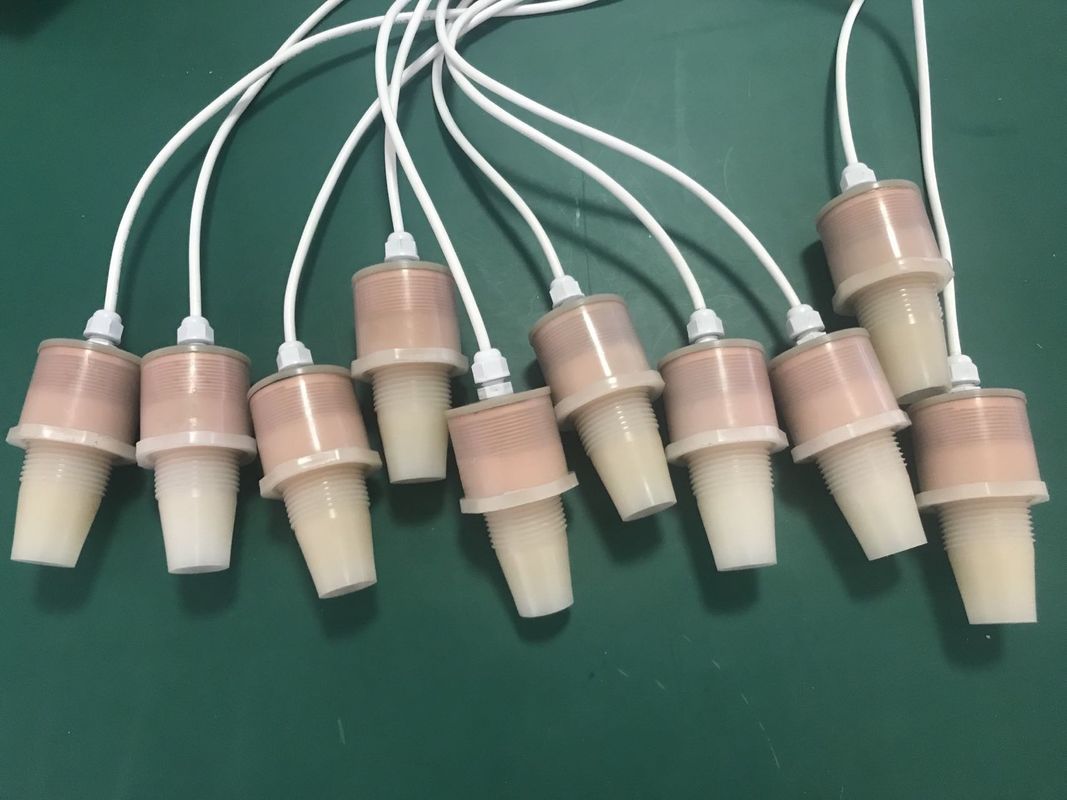

6V Ultrasonic Water Level Meter with RS485 Output and 5m High Accuracy Liquid Level Measurement

Model: KUS600

Measuring range

600... 5000 mm.

The measure distance can reach 6 meters if the power supply is 24V.

Blind spot

600 mm

Supply voltage

3.3 ... 24 VDC,ripple 10 %SS

No-load supply current I0

≤ 20 mA active period and ≤0.3mA during sleep time

Output signal

0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.

Measurement accuracy

≤1 %F.S.

Temperature compensation

Yes

Ranging resolution

0.1mm；

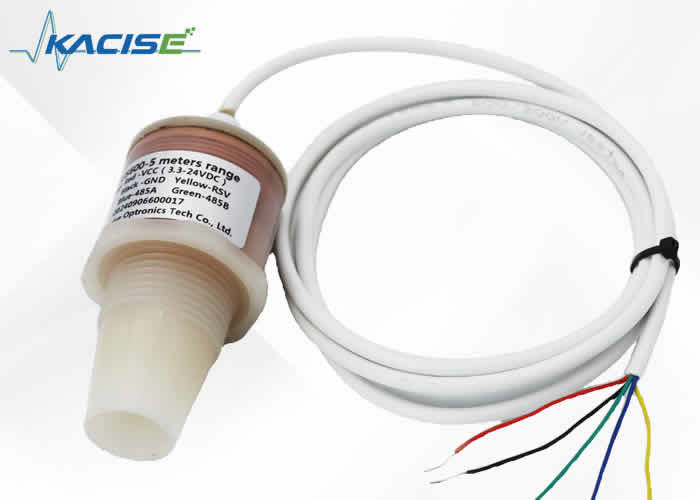

Electrical connection

5-core cable (analog output), 6-core cable (switch output)；

Protection class

IP68

shell material

PVC /PVDF/PTFE/ABS

Red

1

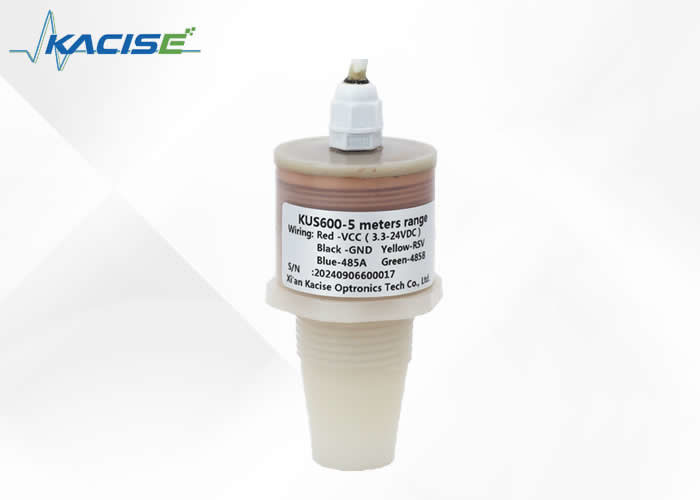

Power supply

Black

2

GND

Yellow

3

Analogue output

The 600B will work in mode 1 or 0 cannot work in power save mode, if the 4-20mA, 0-3.3V 0-5V analogue output used.

Blue

4

RS485A+

TTL-TXD for ttl output signal

Green

5

RS485B-

TTL-RXD for ttl output signal

Red

1

Power supply

Black

2

GND

Yellow

3

Switch output

Load current 1A@60V

White

4

Switch output

Brown

5

RS485A+

TTL-TXD for ttl output signal

Green

6

RS485B-

TTL-RXD for ttl output signal

600

Customized

Customized

SW

Switch Output (online configurable for NPN or PNP)

mA

3 wire 4-20mA output

10V

Output is Vout 0-10V

5V

Output is Vout 0-5V The power supply range is 5.0 at least

3.3V

Output is Vout 0-3.3V The power supply range is 3.3 at least

RS485

Output is RS485

TTL

UART TTL output

XXX mm

Xxx mm is the maxim range can be detected, the default length is 1 meter

KUS

600

RS485

5000mm
