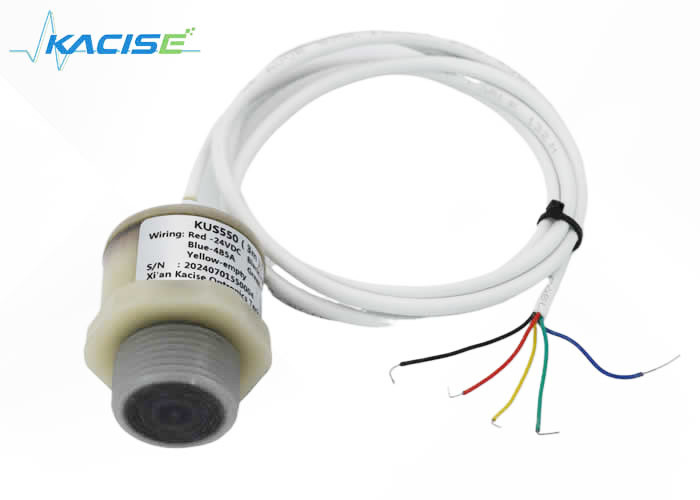

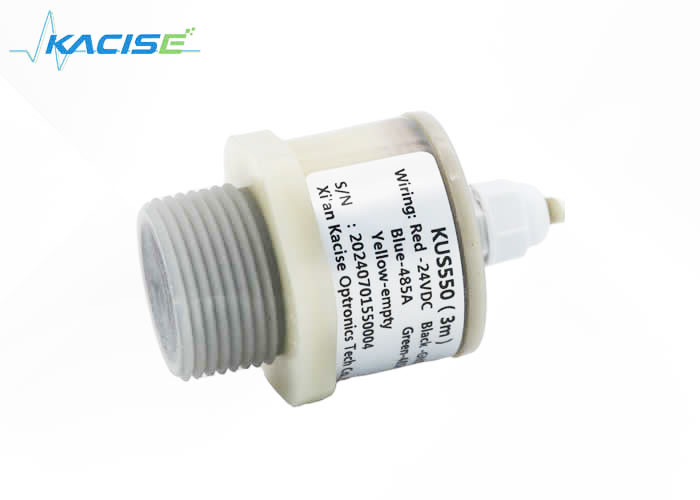

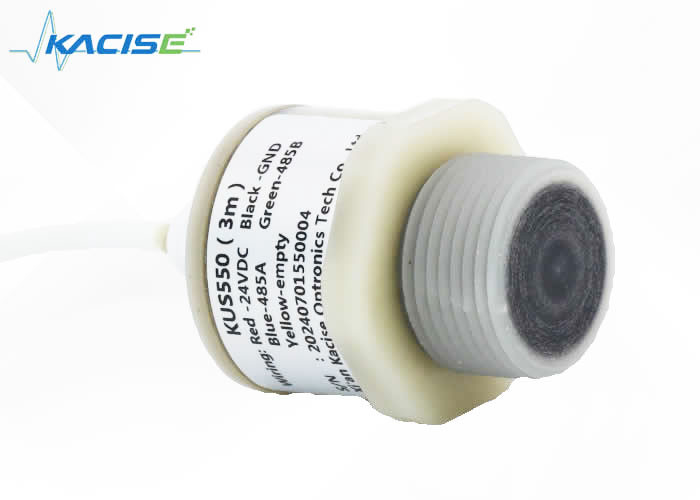

RS485 PDFE measuring range 2m waterproof water level sensor

RS485 PDFE measuring range 2m waterproof water level sensor

Waterproof Ultrasonic Water Level Sensor

2m Water Level Sensor

Water Ultrasonic Transducer Sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

ce,ISO9001

Model Number:

KUS550

Contact Us
Request A Quote
Product Details
Response Time:
<50ms
Beam Angle:
7°±2
Temp. Compensation:
Inside/outside/fix Temp.
Operating Voltage:
14.5VDC~27VDC
Output:
RS485,0~5V
Operating Ambient Temp.:
0~70℃ (-40~85℃, -55~125℃, Etc, Customizable)
IP Grade:
IP68
Detection Range:
200mm~3000mm
Transducer Frequency:
70KHZ
Repeatability Precision:
≤1%
Usage:
Sewage Pool Swimming Pool
Highlight:

Waterproof Ultrasonic Water Level Sensor

,

2m Water Level Sensor

,

Water Ultrasonic Transducer Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability
10000 Pieces per month
Product Description

RS485 PDFE measuring range 2m waterproof water level sensor



Product introduction

Our RS485 PDFE water level sensor is an outstanding device engineered for reliable water level measurement. With a measuring range of 2 meters, it offers precise data within this specific scope, making it suitable for a multitude of applications.
The RS485 interface stands as a key feature. It enables seamless communication with other devices and systems, allowing for easy integration into complex monitoring setups. This facilitates efficient data transfer and control, whether in industrial facilities or environmental monitoring scenarios.
The sensor's construction from PDFE material not only ensures its durability but also provides excellent waterproof properties. It can be fully submerged in water without any risk of damage. This makes it ideal for use in various water environments, such as water tanks, wells, and even outdoor water bodies. It is highly resistant to corrosion and wear, guaranteeing stable and accurate water level measurements over an extended period, thus providing crucial information for water management and control.



Product features

  • High sensitivity.
  • Compact and robust structure.
  • IP68 high protection rating.
  • Corrosion resistant casing, suitable for corrosive medium and application

Application

  • Tank level measurement
  • Bin level measurement
  • Proximity zone detection
  • People detection
  • Robot ranging sensor
  • Autonomous navigation
  • Multi-sensors navigation
  • Distance measuring
  • Long range object detection
  • Industrial automation

Parameter



General specifications



Model: KUS550

Measuring range

0.25m~3m (5m customizable)KUS550A

0.15m-0.6m(1m customizable)KUS550B;

Blind spot

The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;

Supply voltage

3.3 ... 30 VDC, ripple 10 %SS

Working current

≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;



Output signal

0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.

Measurement accuracy

≤1 %F.S.

Temperature compensation

Yes

Ranging resolution

0.1mm;

Working conditions

Working temperature

-40…85℃(233...358K)

Storage temperature

-40…85℃(233...358K)

Other instructions

Electrical connection

5-core cable (analog output), 6-core cable (switch output);

Protection class

IP68

shell material

PVC /PVDF/PTFE/ABS



Dimensions

Unit in the diagram is mm.



RS485 PDFE measuring range 2m waterproof water level sensor 0

Wiring



Analogue output type wiring diagram



RS485 PDFE measuring range 2m waterproof water level sensor 1



Switch output type wiring diagram

RS485 PDFE measuring range 2m waterproof water level sensor 2





Product folw

RS485 PDFE measuring range 2m waterproof water level sensor 3



Application

RS485 PDFE measuring range 2m waterproof water level sensor 4



Company Information


RS485 PDFE measuring range 2m waterproof water level sensor 5

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

We supply high quality Turbine Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.



Our Services

  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.

FAQ



1. Q: What information need to be provided to choose the suitable RS485 PDFE measuring range 2m waterproof water level sensor?

A: Please provide us: measuring range,medium,power supply,output, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
