Place of Origin:
China
Brand Name:
Kacise
Certification:
CE
Model Number:
KLD

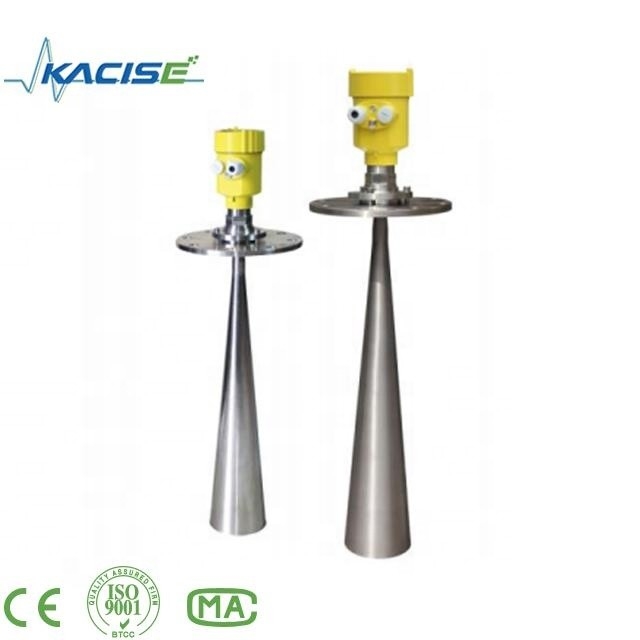

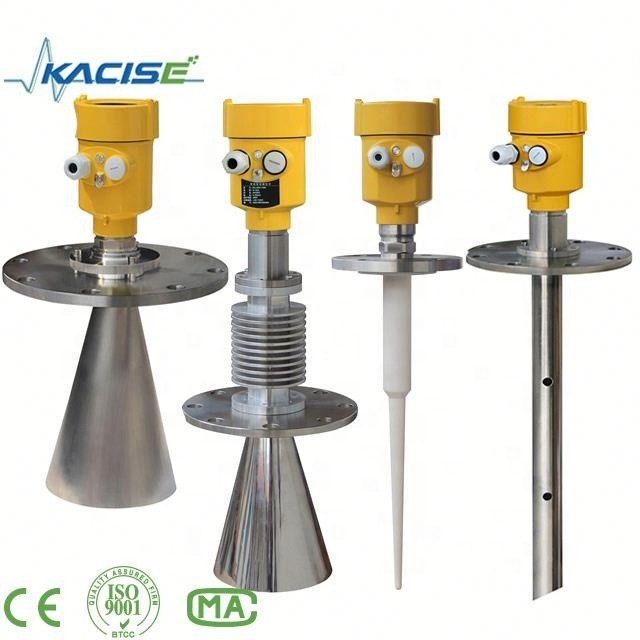

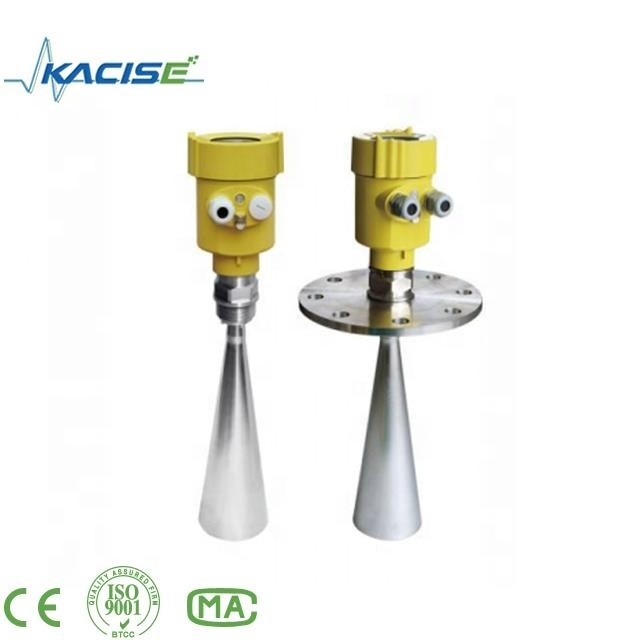

Radar level meter original manufacturer digital radar level sensor
We also produce 6G and Guided wave radar level meter.
Introduction
26G radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature,pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment
Operation principle
Radar level sensor antenna of radar level gauge transmits the narrow microwave pulses and downward transmission by the antenna. Microwave is reflected back and received by the antenna system again, when the microwave exposure to the measured medium surface, and transmit the signal to the electronic circuit parts automatically converted into level signal
Features of 26G Radar Level Sensor
1). Antenna size is small, easy to install;
2). Non-contact radar, no wear, no pollution.
3). Almost free from corrosion, foam impact;
4). It is almost free from water vapor in the atmosphere, temperature and pressure changes.
5). Severe dust working environment has little effect on high-frequency level meter.
6). Shorter wave length that has a better reflection on the inclined solid surface.
7). Small beam angle, energy concentration, enhanced echo capabilities meanwhile beneficial to avoid interferences.
8). Measuring blind zone is smaller, it will achieve good results for canister’s measuring.
9). High signal to noise ratio, even in the case of fluctuations can obtain better performance.
10). High frequency, it is the best choice for measurement of solids and low dielectric media.
Parameters
| KLD-2601 | |
 |
Application: All kinds of corrosive liquid Measuring Range:10 meters Process Connection: Thread, Flange Medium Temperature: -40℃ ~ 130℃ Process Pressure: -0.1~0.3 MPa Accuracy: ± 5mm Protection Grade: IP67 Frequency Range: 26GHz Signal Output:4~ 20mA/HART (Two-wire / Four) RS485/ Modbus Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb |
| KLD-2602 | |
|
Application:Anti-high temperature, Anti-high pressure Liquid, Mildly corrosive liquid Measuring Range:30 meters Process Connection:Thread, Flange Medium Temperature:-40℃ ~ 250℃ Process Pressure:-0.1 ~ 4.0 MPa Accuracy: ±3mm Protection Grade:IP67 Frequency Range: 26GHz Signal Output:4~20mA/HART (Two-wire / Four) RS485/ Modbus Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb |
| KLD-2603 | |
| |
Application:Solid material, Strong dust Easy to crystallize, condensation occasion Measuring Range: 70 meters Process Connection:Universal Flange Medium Temperature: -40℃ ~ 250℃ Process Pressure: -0.1 ~ 0.1 MPa Protection Grade: IP67 Accuracy: ±15mm Frequency Range:26GHz Signal Output:4~20mA/HART (Two-wire / Four) RS485/ Modbus Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb |
| KLD-2604 | |
|
Application:Solid material, Strong dust, Accuracy: ±15mm RS485/ Modbus |
| KLD-2605 | |
| |
Application:Solid particles, Powder Measuring Range:Liquid 30m/Solid 20m/powder 15m Process Connection:Thread, Flange Medium Temperature:-40℃ ~ 250℃ Process Pressure:-0.1 ~ 4.0MPa (Flat Flange) -0.1 ~ 0.1MPa (Universal Flange) Accuracy:±10mm Protection Grade:IP67 Frequency Range:26GHz Signal Output:4... 20mA/HART (Two-wire / Four) RS485/ Modbus Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb |
| KLD-2506 | |
| |
Application:Hygienic liquid storage, Corrosive medium container Four-wire (DC24V/AC220V) |
Company Information
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
Our Services
· Your inquiry will be replied in 24hours.
· Well-trained and experienced staffs to answer all your enquires in fluent English.
· OEM&ODM, we can help you to design and your request will be put into product.
· Distributorship are offered for your unique design and some our current models.
· Protection of your sales area, ideas of design and all your private information.
· Discounts are offered based on order quantities.
· We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, medium, measuring range, output signal, power supply,
temperature, installation method, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ for the KLD260 series 26G High Frequency Radar Level Mete?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty for the KLD260 series 26G High Frequency Radar Level Mete?
A: Yes, we have the warranty of 12 months.
