Place of Origin: | Shaanxi, China |
Brand Name: | KACISE |
Model Number: | KLD-705 |
Price: | $300.00 - $700.00/pieces |
---|---|
Packaging Details: | Each unit has individual box, and all boxes are packed into big carton. |
Supply Ability: | 2000 Piece/Pieces per Month |
Name: | Radar Level Meter | Measuring Range: | 15m |
---|---|---|---|
Frequency Range: | 500MHz~1.8GHz | Signal Output: | 4...20mA/HART |
Power Supply: | Two-wire (DC24V) Four-wire(DC24V/AC220V) | Explosion-proof Grade: | Exia IIC T6 Ga/Exd Ia IIC T6 Gb |
Port: | Shanghai Or Other | ||
High Light: | Plastic Casing Radar Level Transmitter,1.8GHz Radar Level Meter,15m Radar Level Meter |

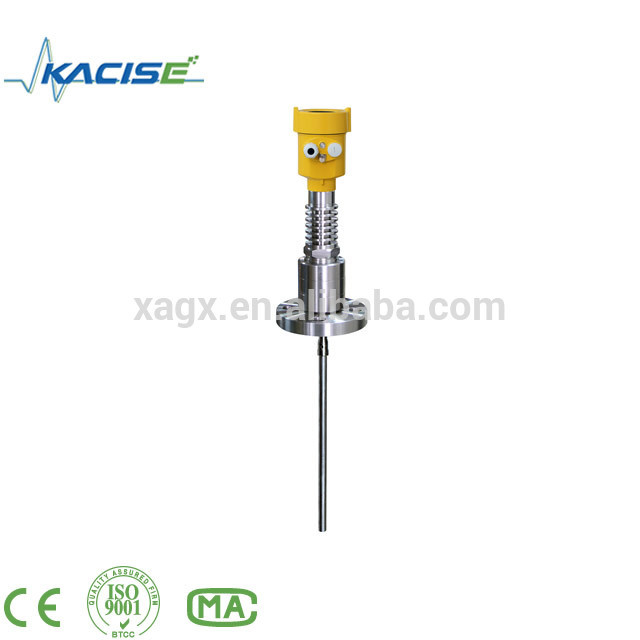

KLD-705 4-20mA 500MHz~1.8GHz Radar Level Meter
1. Working Principle:
High-frequency microwave pulses issued by the guided wave radar progagate along detection components (steel cable or steel rod), meet the media to be measured, since the dielectric constant of the mutation, cause reflections, a portion of the pulse energy is reflected back. Transmit pulse and the reflected pulse is proportional to the distance and the time interval measured media.
2. Technical Features:
3. Technical Specifications:
Medium |
Liquids, especially high temperature and pressure environment of liquid |
Application |
Sealed cans, high pressure liquid measurement |
Explosion-proof Grade |
Exia IIC T6 Ga/Exd ia IIC T6 Gb |
Measuring Range |
15m |
Frequency |
500MHz-1.8GHz |
Antenna |
Single cable or single rod antenna |
Accuracy |
±10mm |
Process Temperature |
-200~450℃ |
Process Pressure |
-0.1~4MPa |
Signal output |
4~20mA/HART |
Display |
Four LCD/Can be programmed |
Power Supply |
Two-wire (DC24V) Four-wire(DC24V/AC220V) |
Casing |
Aluminum /Plastic |
Connection |
Flange (optional) / Thread |
All our products are produced by experienced workers, and tested at least 3 times before shipping out to make sure the quality.
Each unit has individual box and the boxes are packed into one big carton, upmostely making sure that the goods are still in nice conditions when arriving at our esteemed customers.
