Name: Dissolved Oxygen Sensor For Industrial Water Quality Testing With Accuracy 1%
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-600
Availability: InStock

Home > Products > Water Quality Sensor >

Dissolved Oxygen Sensor For Industrial Water Quality Testing With Accuracy 1%

Industrial Water Quality Sensor 24VDC

Portable Dissolved Oxygen Sensor

Place of Origin:

Shaanxi, China

Brand Name:

Kacise

Model Number:

KWS-600

Request A Quote

Product Details

Range:

0-20mg/L Or 0-200% Saturation

Accuracy:

±1%

Response Time:

20 Sec

Ip Grade:

IP68

Sensor Drift:

<1% Per Year

Operating Temperature:

0~50℃

Highlight:

Industrial Water Quality Sensor 24VDC

Portable Dissolved Oxygen Sensor

Payment & Shipping Terms

Price

$100.00 - $1,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability

500 Piece/Pieces per Month

Self Cleaning Fiber Turbidity Sensor For Water Quality Measurement / Aquaculture Industry

Get Best Price

Video

90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range

Get Best Price

Video

RTU Protocol Water Turbidity Sensor For Monitoring Red Algae

Get Best Price

Video

Scattering Method Online Turbidity Sensor Anti Interference

Get Best Price

Contact Now

Product Description

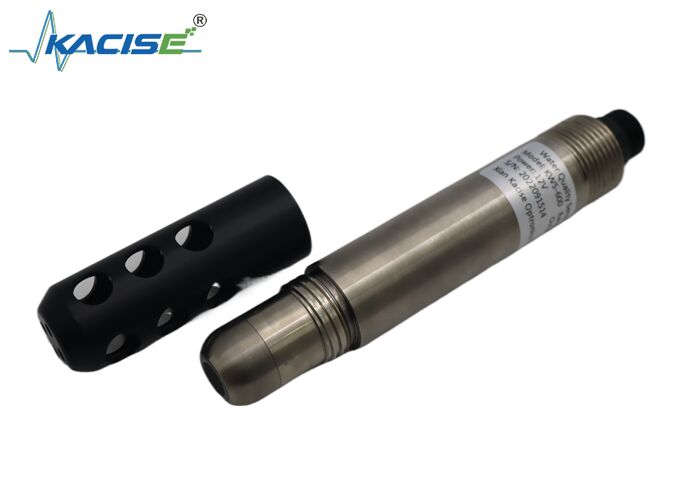

Dissolved Oxygen Sensor For Industrial Water Quality Testing With Accuracy 1%

Product Overview

The Kacise KWS-600 online fluorescence dissolved oxygen sensor utilizes high-performance fluorescent materials for precise industrial water quality monitoring. This advanced sensor requires no oxygen consumption, has no flow rate limitations, contains no electrolyte, and eliminates the need for frequent maintenance and calibration. It is immune to hydrogen sulfide interference and offers exceptional stability. The sensor features a built-in temperature sensor for automatic temperature compensation and provides RS485 output for direct networking without requiring a separate controller.

Key Features

Digital sensor with RS485 output supporting MODBUS protocol
No membrane, no electrolyte, no interference, minimal calibration requirements
No oxygen consumption and no flow rate limitations
Built-in temperature sensor with automatic temperature compensation

Technical Specifications

Parameter	Specification
Range	0-20mg/L or 0-200% saturation
Accuracy	±1%
Response Time	20 sec
IP Grade	IP68
Sensor Drift	<1% per year
Operating Temperature	0~50℃
Temperature Accuracy	±0.2℃
Output	RS485, Modbus
Power Supply	DC9-24V ±5%, current<50mA
Temperature Sensor	NTC
Casing Diameter	26mm
Installation	G3/4, submersible
Cable Length	Standard 10m, customizable 5m, 15m and 30m
Fluorescent Cap Lifetime	1 year (under normal use)
Casing Material	Titanium

Dimensions

Dimensions Diagram
